Home Lithium Battery High Voltage Battery

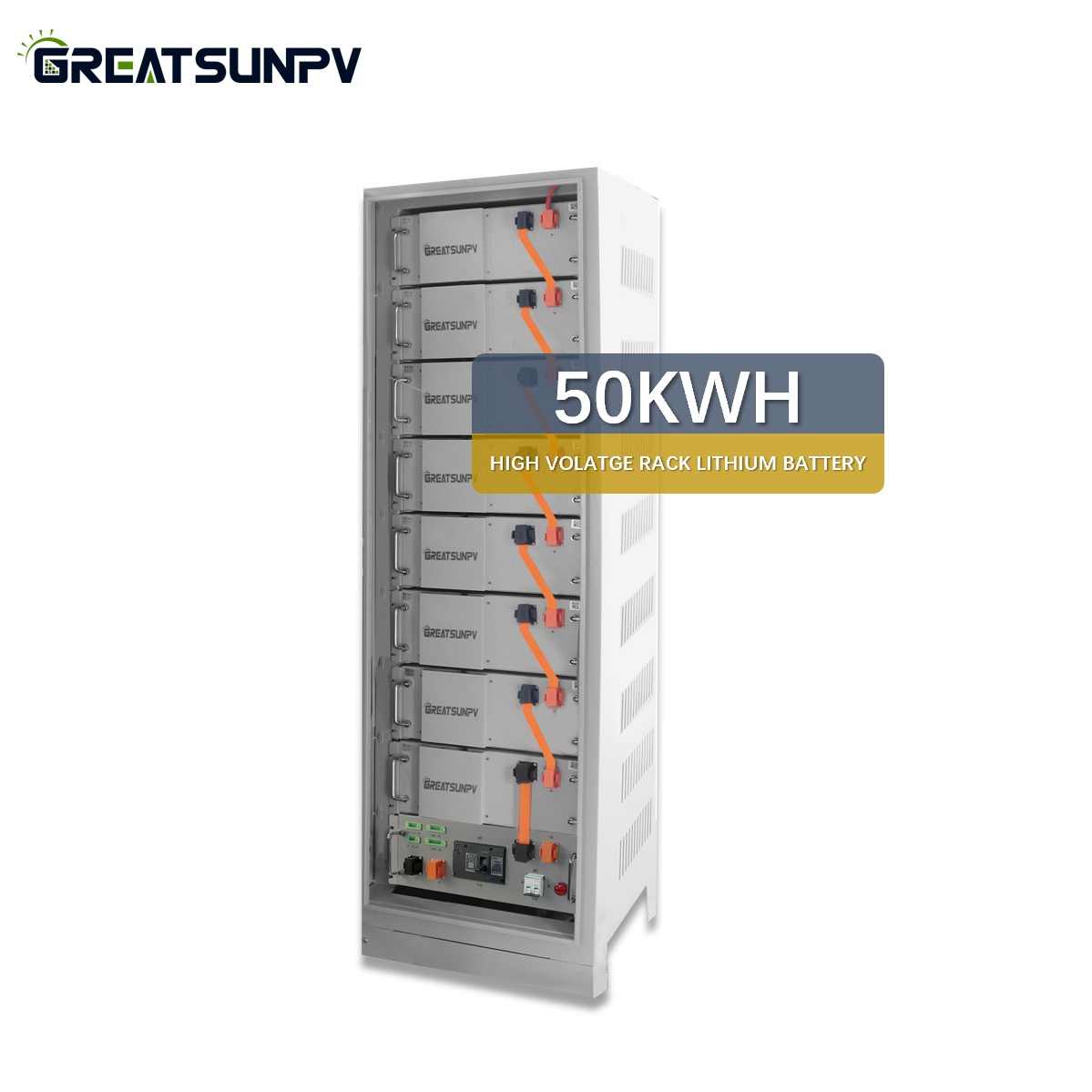

Easy installation Rack lithium battery 50kwh 100kwh with 10 years warranty for commercial and industrial use

Easy installation Rack lithium battery 50kwh 100kwh with 10 years warranty for commercial and industrial use

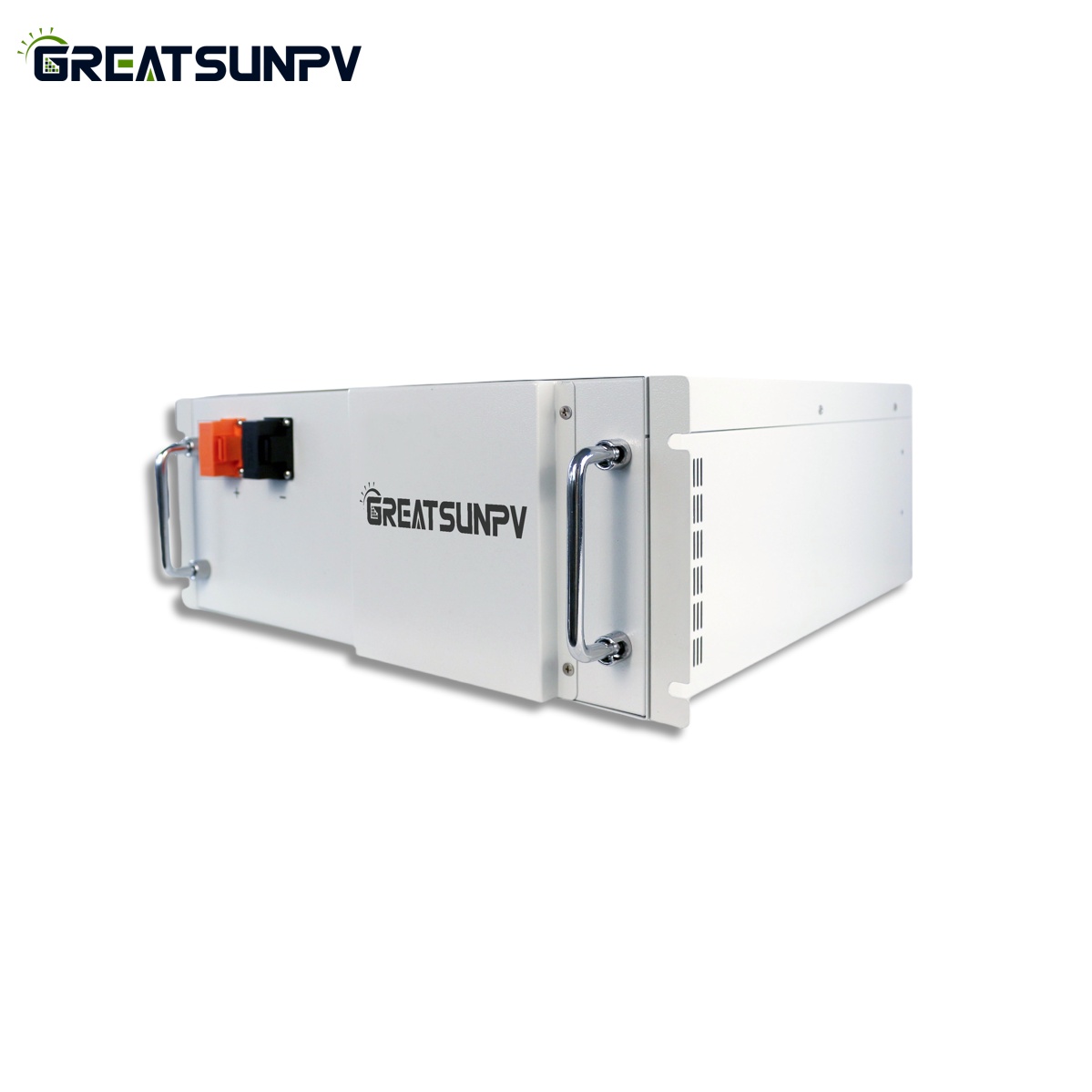

The 51.2v 100ah Lithium Battery is efficient, safe and environmentally friendly energy storage devices.

  • Brand Name:

    GREATSUNPV
  • Nominal Battery Energy:

    40-100KWH
  • Warranty:

    10 years
  • Nominal Voltage:

    51.2V
  • Battery Capacity:

    51.2V 100AH
  • Dimension(mm):

    Customzied
  • Weight(kg):

    Customzied
  • Certification & Safety Standard:

    UN38.3
  • Description

Key Features:

  • High Performance: With a capacity of 5.12kWh and the ability to support over 6000 cycles, the GS RACK offers long-lasting energy support, ensuring smooth and uninterrupted operations.
  • Intelligent Management: Featuring smart cloud-based monitoring, the GS RACK provides real-time insights into your energy usage and battery status, optimizing performance and reducing electricity costs.
  • Flexible Configuration: The system can support multiple racks, with up to 12 battery modules in series, offering scalability to meet your growing energy needs.
  • Effortless Installation: Weighing just 49kg per module and supported by a comprehensive user manual, the GS RACK ensures an easy and quick installation process.
  • Safety First: With an advanced battery management system (BMS) and robust safety measures to prevent over-discharge, over-charge, and short circuits, the GS RACK prioritizes the protection and longevity of your energy system.
  • Robust Design: Designed to endure tough environmental conditions, the GS RACK has a high IP rating and can operate efficiently across a wide range of temperatures, ensuring durability in any setting.
  • Warranty Assurance: Benefit from a 10-year warranty with a full replacement guarantee, covering up to 6000 cycles of use, for added peace of mind.

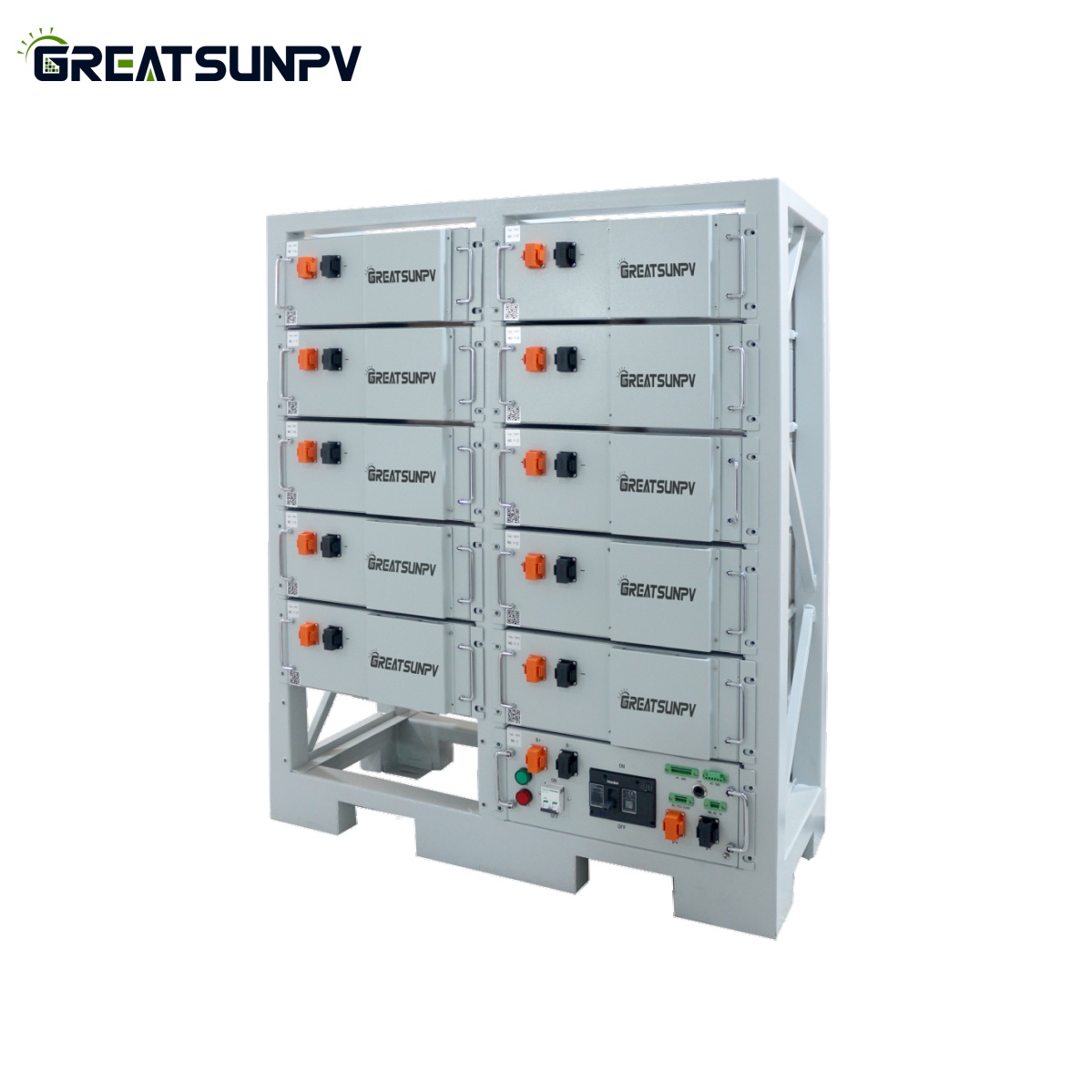

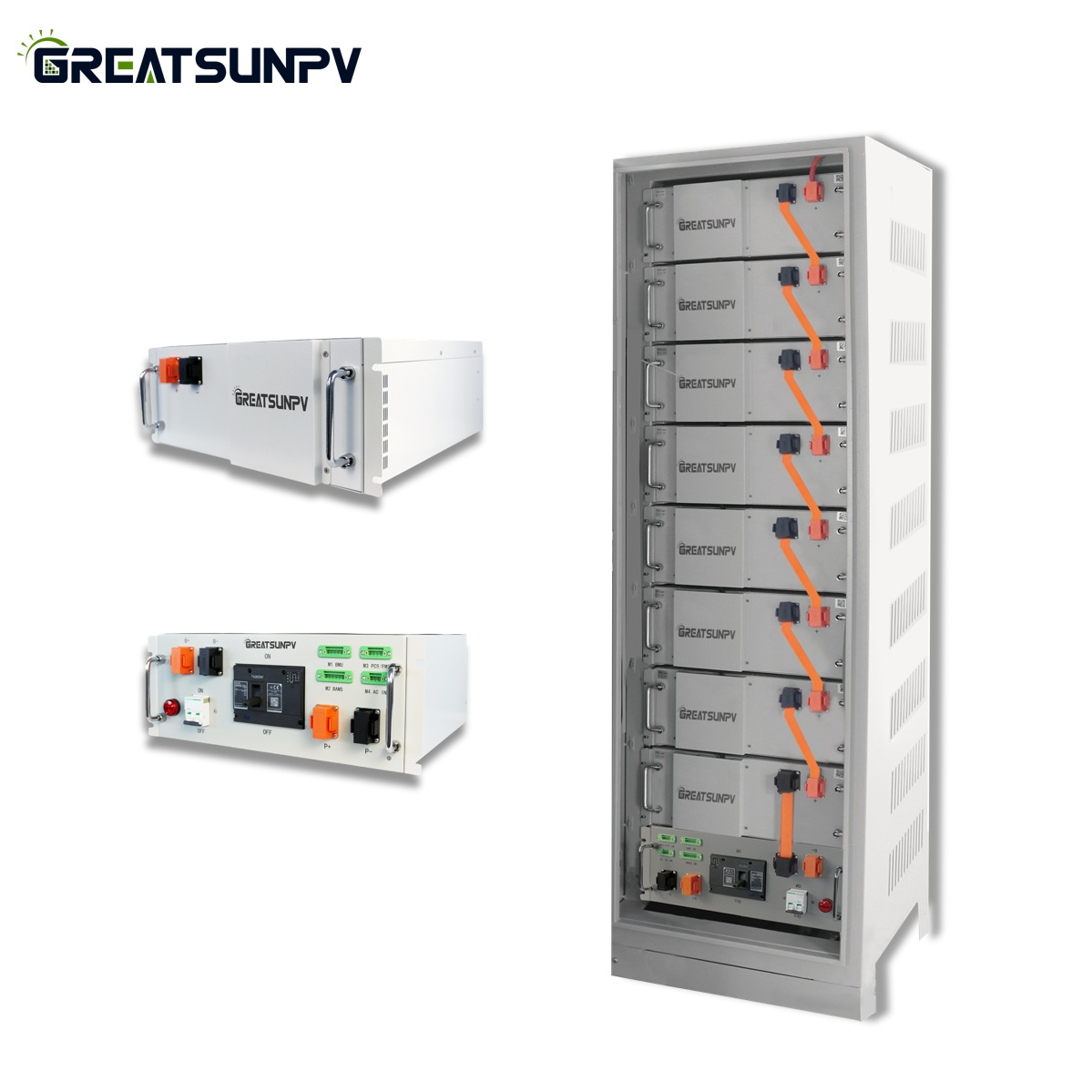

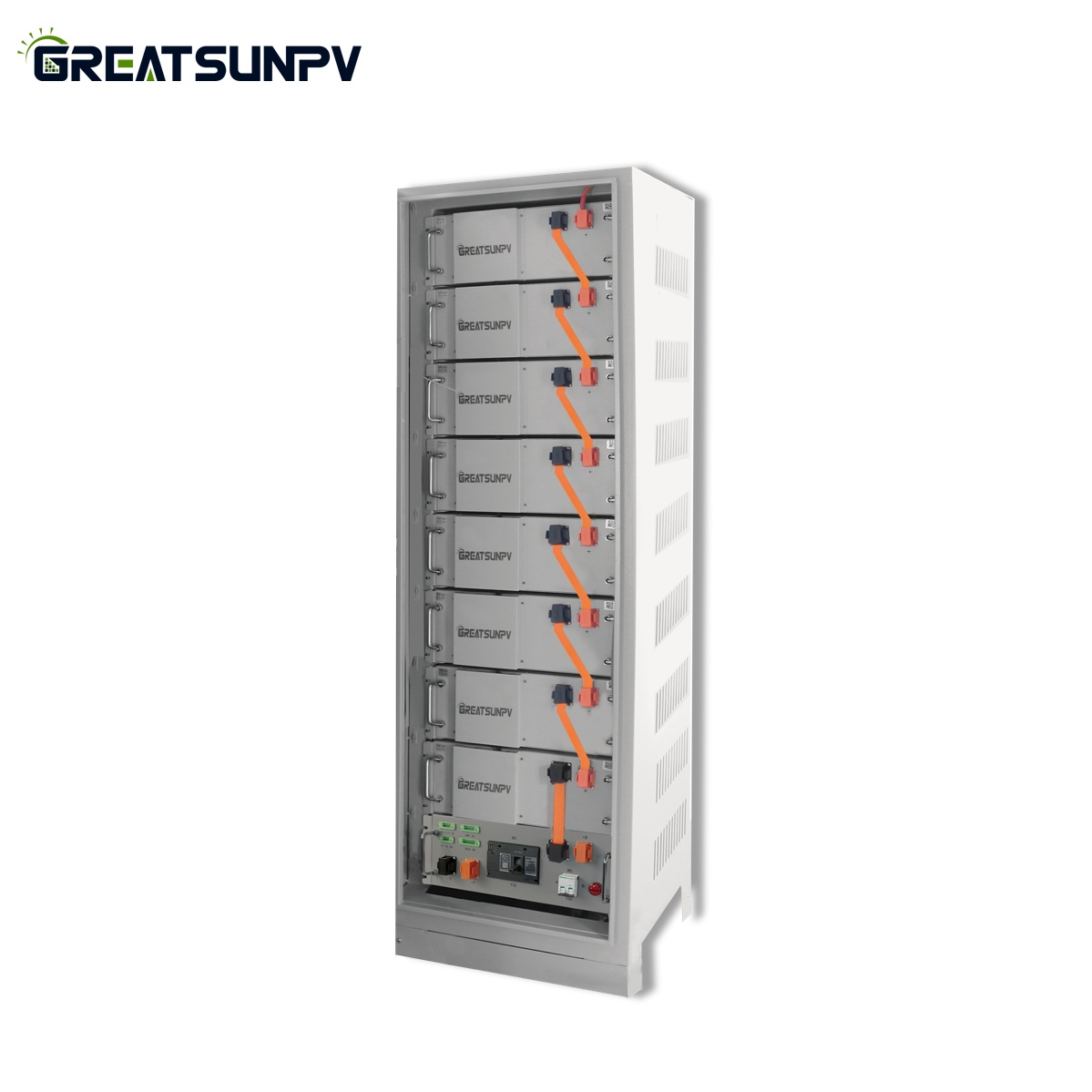

Model GS RACK HV-40.9 GS RACK HV-51.2 GS RACK HV-102.4
Rack Type LiFePO4 LiFePO4 LiFePO4
Battery Moudle Type LFP51100 LFP51100 LFP51100
Moudle Quantity 8PCS 10PCS 20PCS
Cycle Life ≥6000@25 ≥6000@25 ≥6000@25
Nominal Energy (KWH) 40.9 51.2 102.4
Nominal Capacity (AH) 100 100 100
Norminal Voltage (V) 409.6 512 1024
Operating Vol Range (V) 358.4~460.8 448~576 896~1152
Max.Power Output (KW) 40.9 51.2 102.4
Charge/Discharge current(A) 50A(Recommended)100A(3S) 50A(Recommended)100A(3S) 50A(Recommended)100A(3S)
Approx Dimension (L*W*H) 512*460*1790(MM) 502*940*1256(MM) 502*940*2146(MM)
Approx Weight 404.6KG 505.2KG 1004.4KG
Warranty 10 years 10 years 10 years
Certificates UL ,CE, ISO, MSDS, UN38.3 UL ,CE, ISO, MSDS, UN38.3 UL ,CE, ISO, MSDS, UN38.3
Module Quantity and Configuration 8 Units in series

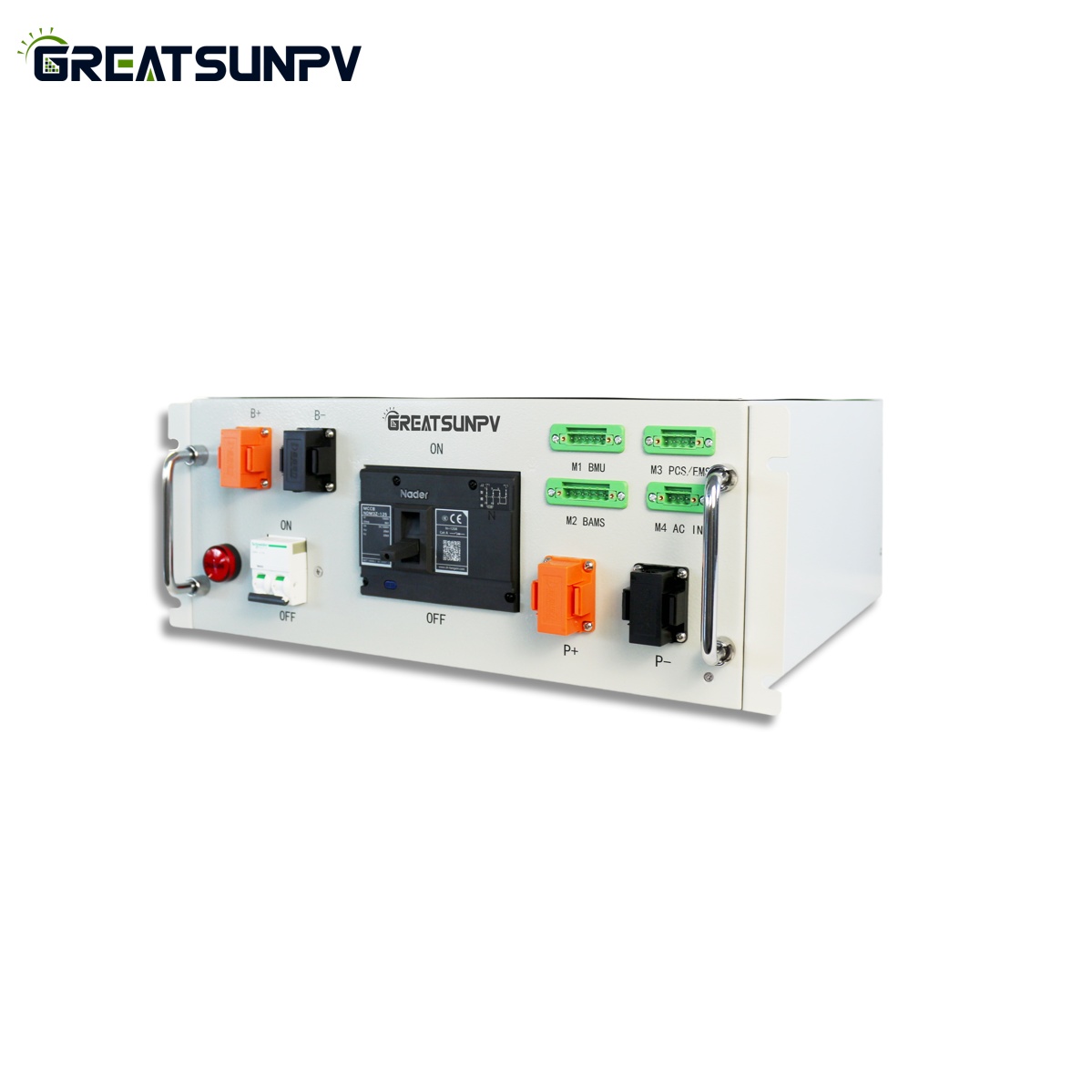

1 BMU
10 Units in series
1 BMU
10 Units in series, 2 Parallel
2 BMU



Compatible Inverter List:

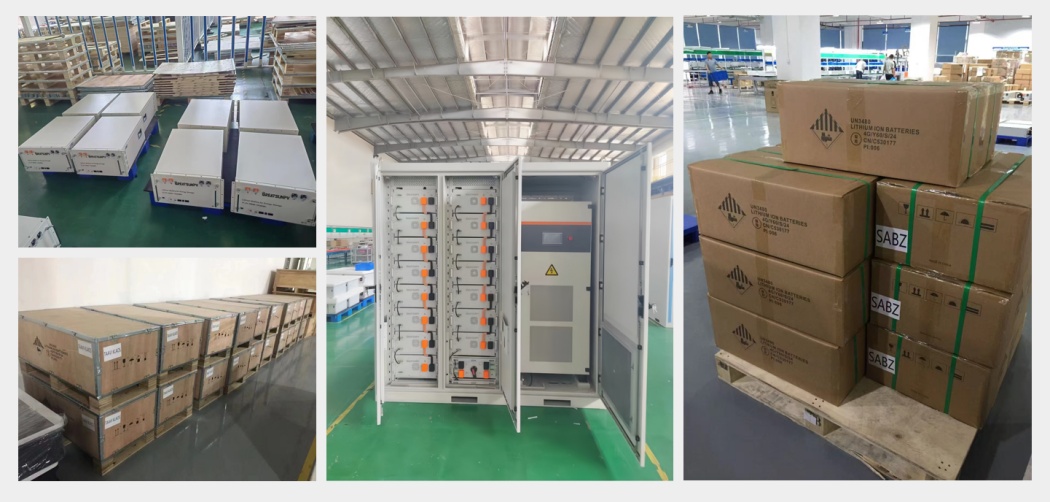

Production & Package:



High-Voltage Lithium Battery Advantages:

Higher Energy Density

High-voltage lithium batteries store more energy per unit volume/weight compared to standard lithium batteries, enabling longer runtime in applications like EVs and portable electronics.



Faster Charging Capability

Their elevated voltage supports higher power input, allowing rapid charging without compromising battery lifespan or safety.



Improved Efficiency

Reduced internal resistance and energy loss during discharge make them ideal for high-power devices, enhancing overall system performance.



Compact and Lightweight Design

Higher voltage reduces the number of cells required to achieve a target voltage, simplifying battery packs and saving space/weight in drones or aerospace systems.



Extended Cycle Life



Advanced materials minimize degradation, ensuring stable capacity retention over 6000 of charge-discharge cycles.
