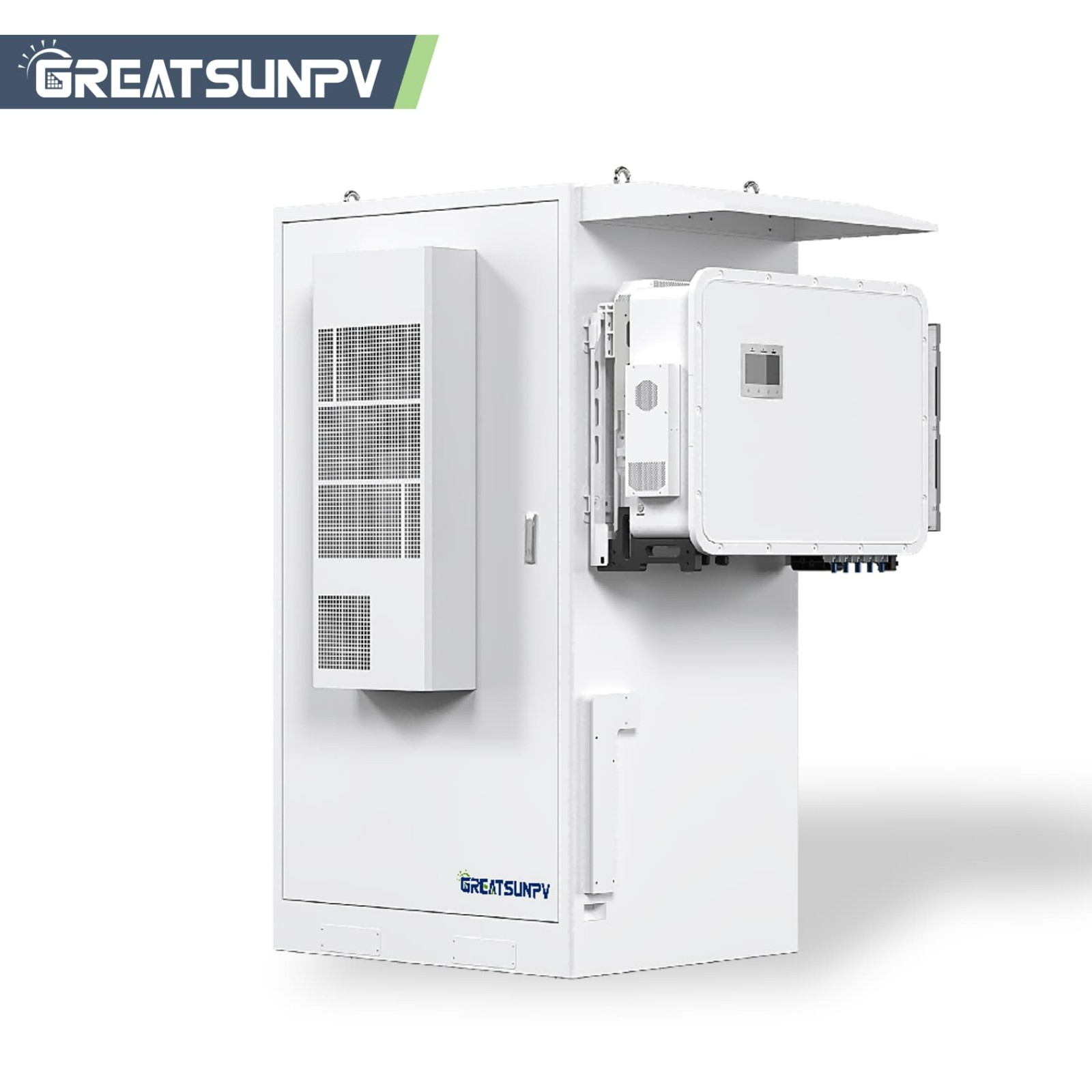

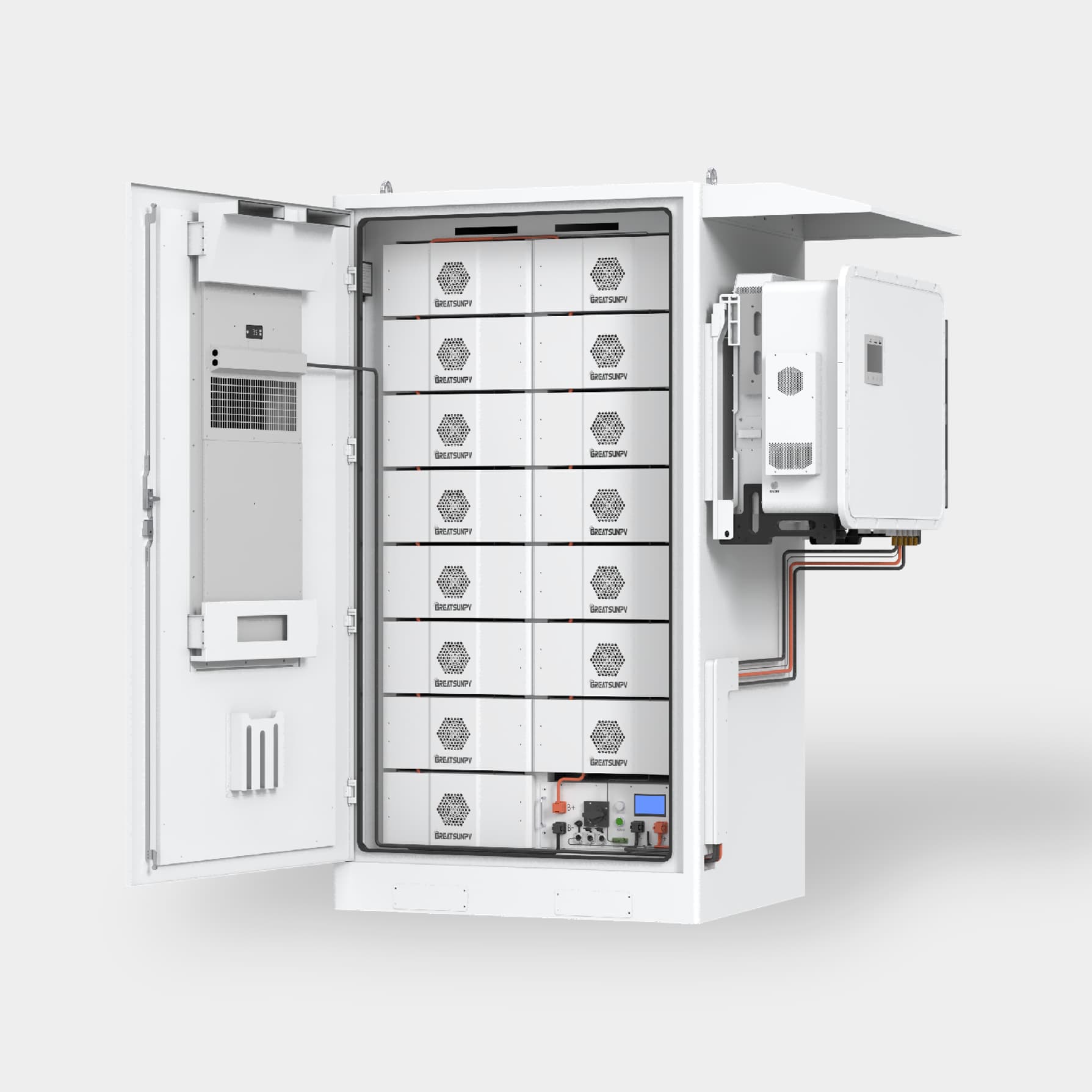

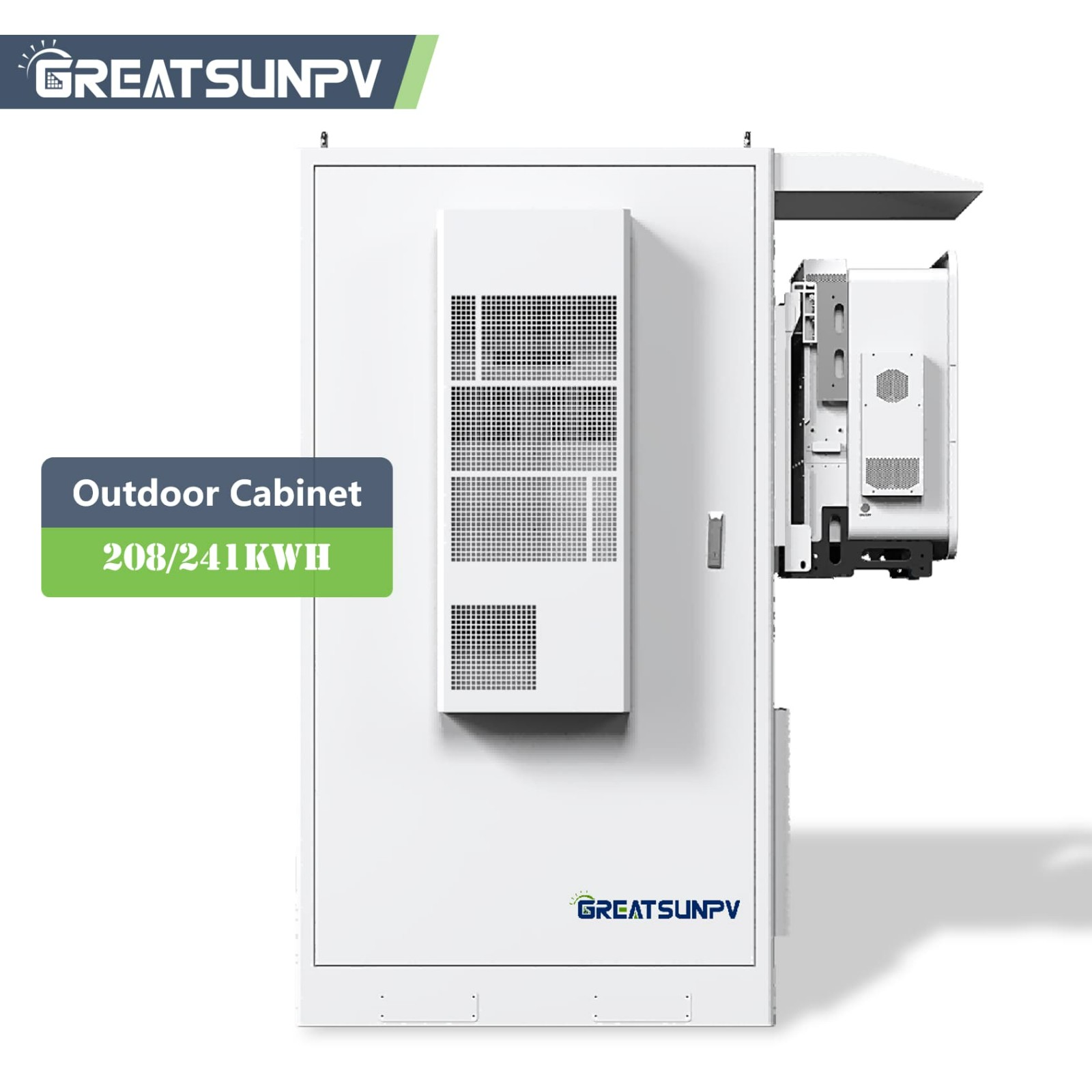

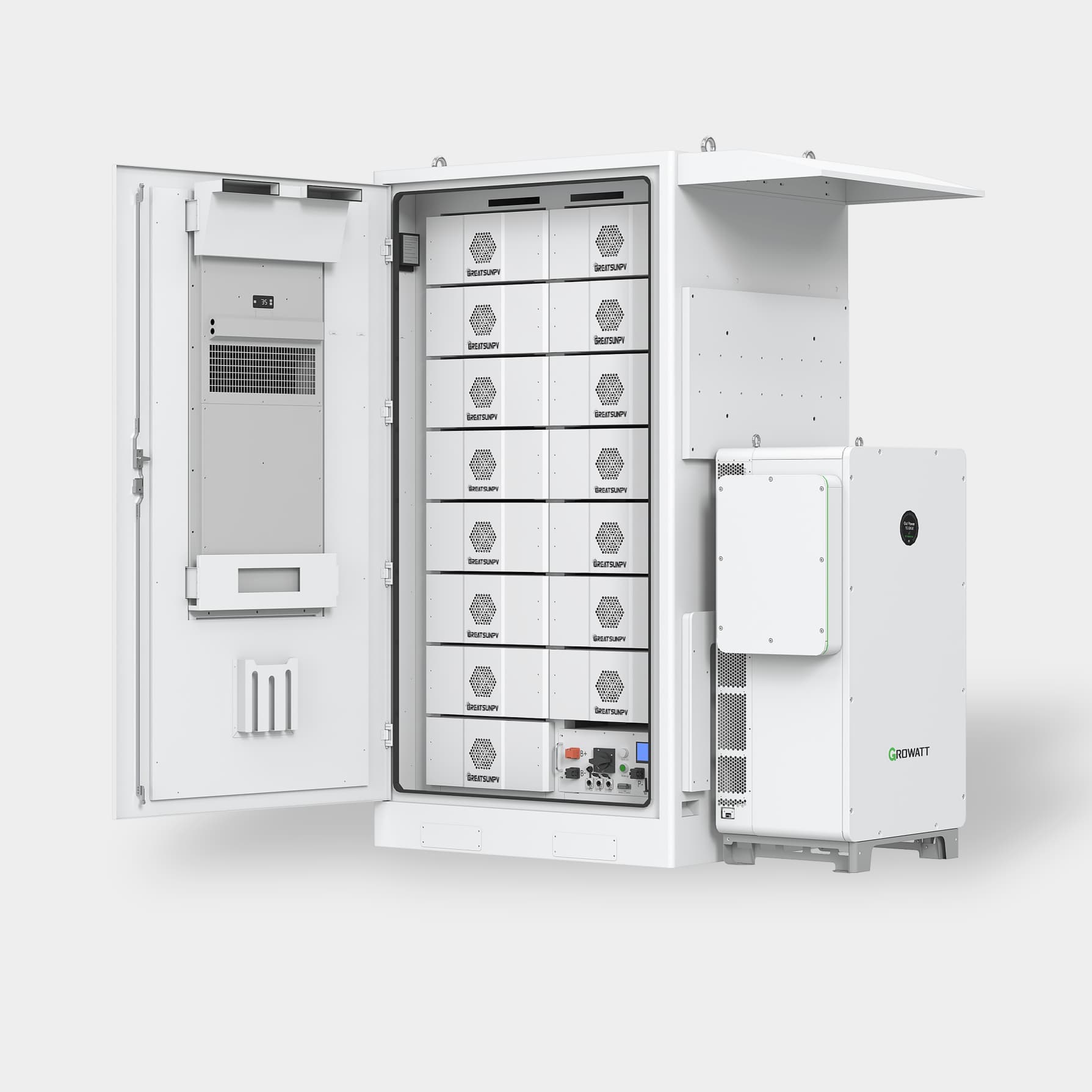

215kwh/241kwh customize outdoor energy storage cabinet for commercial and industrial use

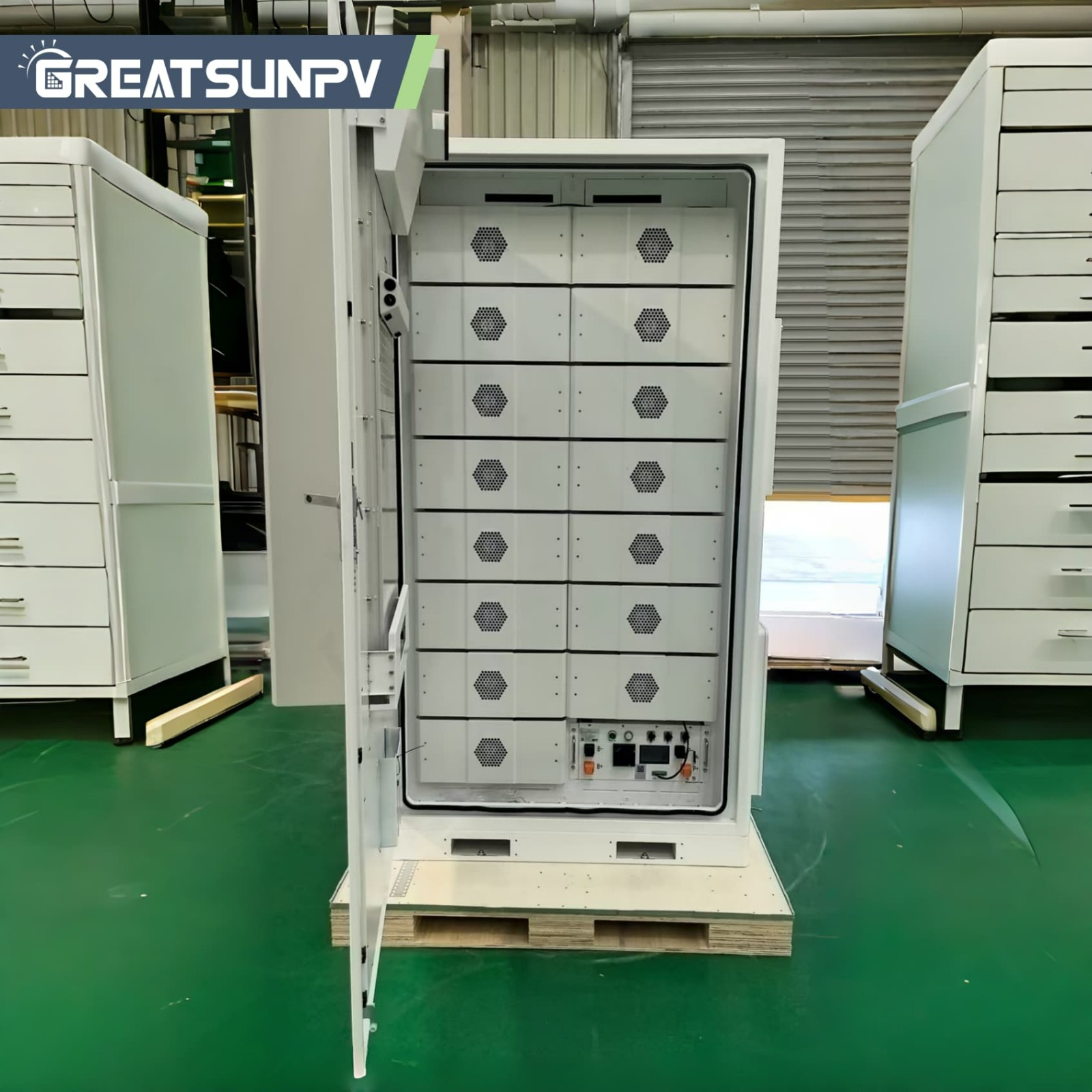

For larger energy demands, GREATSUNPV offers the GCB-E240, a high-power cabinet delivering up to 241 kWh of usable energy and 125 kW of rated power. Ideal for medium-to-large factories, commercial complexes, EV charging stations, and utility-scale projects. With 15 LFP modules in series (768V nominal voltage), the system achieves higher efficiency and lower current, reducing losses. Like all our products, the GCB‑E240 is fully customizable and available with white‑label OEM services.

Key Features

• High Energy & Power:

• Standard total energy 215–241 kWh, rated power 125 kW. Perfect for long-duration backup or aggressive peak shaving.

•
•

• Scalable Design:

• Single cabinet footprint only 1.64 m² (1300×1260 mm). Multiple cabinets can be paralleled for MWh‑level systems.

•
•

• Premium LFP Cells:

• Choose 314Ah or 280Ah cells. >6000 cycles with active cell balancing to maximize lifespan.



• Wide Temperature Tolerance:

• Operates from -20°C to 50°C. Built‑in heating and air cooling ensure performance in harsh environments.

•
•

• Complete Safety Package:

• IP54 enclosure, integrated fire suppression, and over‑current/over‑voltage protection.

•
•

• Full Customization & OEM:

• Capacity, voltage, enclosure branding, communication protocols – all can be tailored to your requirements.



Technical Specifications

Note: PCS (power conversion system) can be integrated inside or supplied separately. Please consult our team for integrated unit dimensions and weight.

Q&A

Q1: Can I get a single GCB‑E240 with more than 250 kWh?
A: Yes, GREATSUNPV supports custom capacity up to approximately 300 kWh per cabinet by adjusting the number of modules and cell configuration. If you need even larger capacity, we recommend paralleling two or more cabinets for MWh‑scale systems. Provide your required energy and power, and we will design a bespoke solution.

Q2: What OEM services do you provide for the GCB‑E240?
A: We offer complete OEM/ODM services, including:

• Custom RAL color for the cabinet

• Your brand logo on the front door, nameplate, and packaging

• Optional modification of communication protocols (Modbus, CAN, etc.)
  Even small quantities are welcome – MOQ for simple rebranding is just 1 unit.

Q3: Does the weight (2500 kg without PCS) require a special foundation?
A: The cabinet should be placed on a level, hardened concrete floor (minimum C25, 150 mm thick). For rooftop installations, please verify the load‑bearing capacity (recommended ≥5 kN/m²). We can provide anti‑vibration pads and anchor bolts.

Q4: How loud is the cabinet? Will it disturb an office environment?
A: The maximum noise level is 75 dB at 1 meter. When installed outdoors or in a dedicated utility room, the noise at 5 meters drops below 55 dB – similar to normal conversation. A “silent mode” (reduced fan speed) can be enabled during nighttime hours.

Q5: Can the GCB‑E240 operate off‑grid as a backup power source?
A: Yes. With an optional off‑grid switching module, the system can automatically disconnect from the grid and supply critical loads within milliseconds after a blackout. Please specify “off‑grid capability” when ordering so we can include the necessary hardware and logic.

General Customization & OEM Services – GREATSUNPV

Regardless of whether you choose the GCB-E100 or GCB-E240, GREATSUNPV provides the following value‑added services:

• Capacity Customization – From 50 kWh to 500+ kWh per cabinet. Tell us your energy target, and we will engineer the optimal module configuration.

• Full OEM Branding – Enclosure color, laser‑etched logo, customized nameplate, carton printing, and even boot logo on the LCD/EMS interface.

• Functional Extensions – Optional integrated PCS, 4G remote monitoring, external fire suppression interface, or upgraded EMS with scheduling algorithms.

• Certification Support – We can provide CE, UL, CEC, UN38.3, and other region‑specific certifications upon request (MOQ may apply).

Ready to build your own energy storage brand?
Contact the GREATSUNPV sales team today for a customized quote and engineering drawing.
