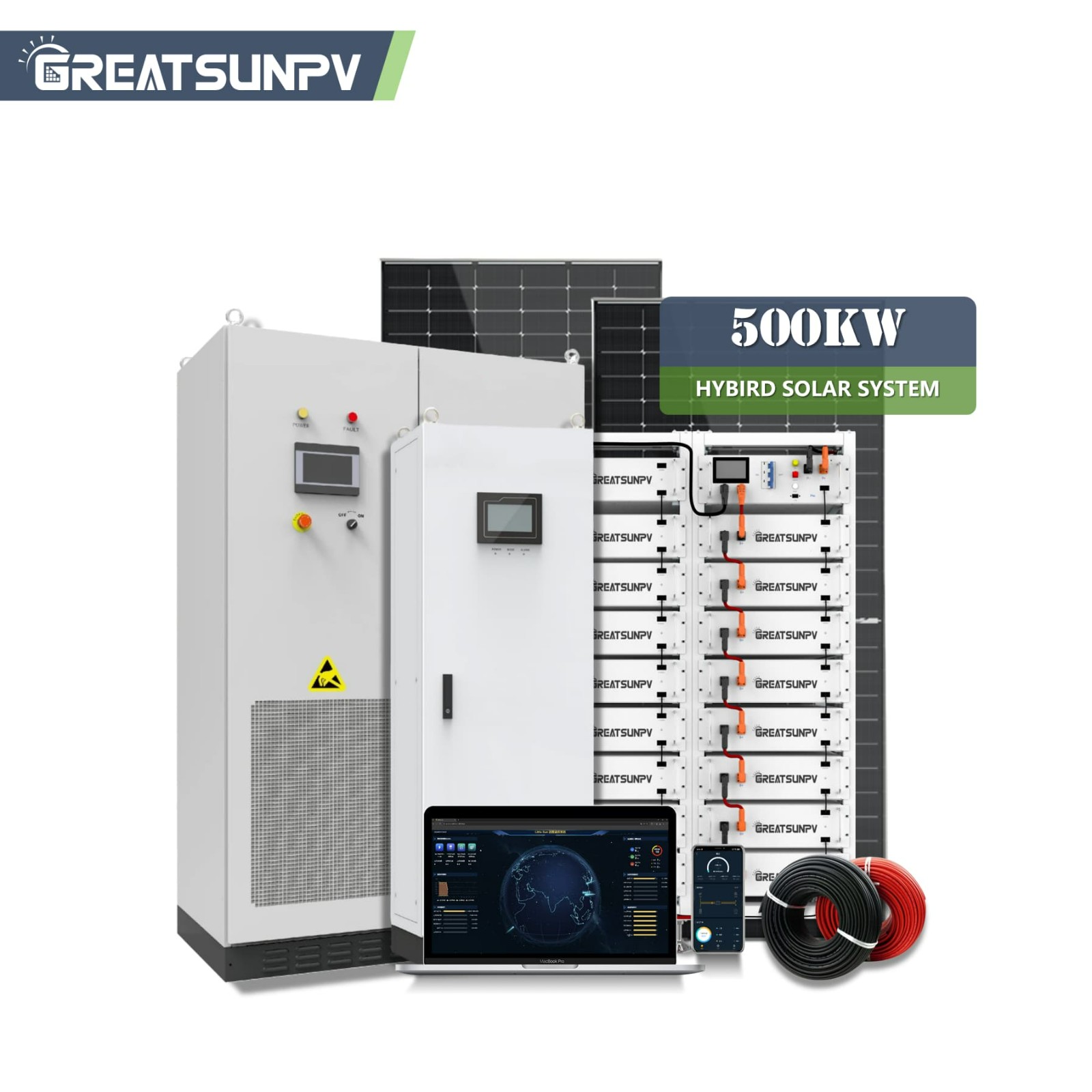

500kW Commercial and Industrial Hybrid Solar System with 1MWh Battery
The 500kW Hybrid system is built for industrial and commerical users, mining operations, large farms, and commercial complexes requiring continuous high-power output. Equipped with 695 panels, a 500kW hybrid inverter, and 1MWh battery storage.
Brand Name:
GREATSUNPVSystem Power:
500KWSystem Type:
Hybrid/ Off GridApplicable Voltage:
EU/US VersionSolar Panel Type:
Mono-crystallineInstallation Type:
Roof/Ground/Water SurfaceCustomization:
AcceptablePre-sale Design:
AcceptableApplication:
Commercial and industrial projectsCertificate:
CE/MCS/TUV/VDE/UL/CSA/ETL/CECOEM:
AcceptableThe GREATSUNPV HSS-500kW Hybrid Solar System offers industrial-grade power generation and storage. With a 1MWh lithium battery, it provides long-duration autonomy suitable for heavy equipment and round-the-clock production.
System components:

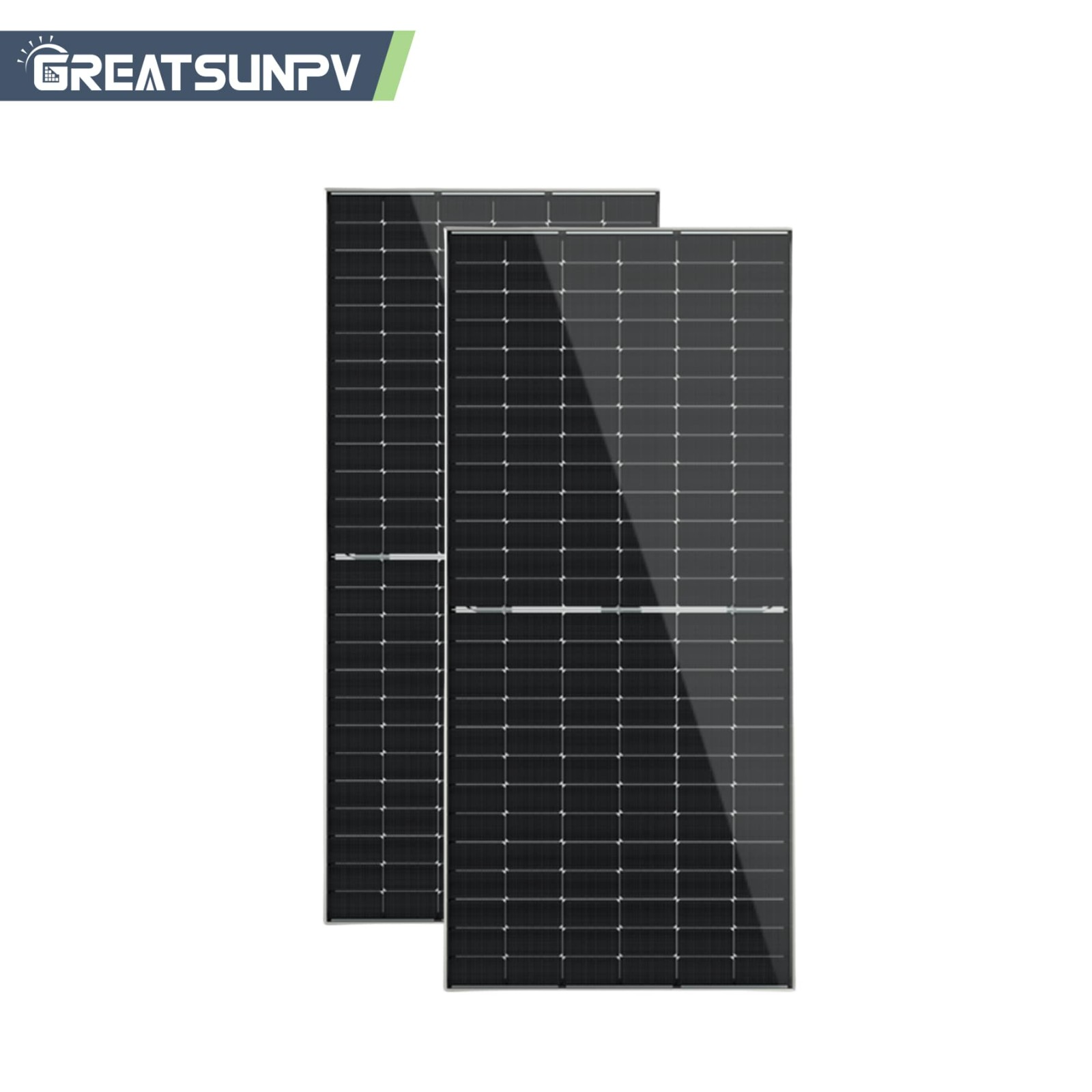

High Efficiency PV Module
* Max Power: 600W-750W
* Technology: TOPCon/HJT/Bifacial
* Low temperature coefficient
* Upto 24% Efficiency
* Low BOS cost & LCOE
* Warranty: 30 Years
* Full Certification

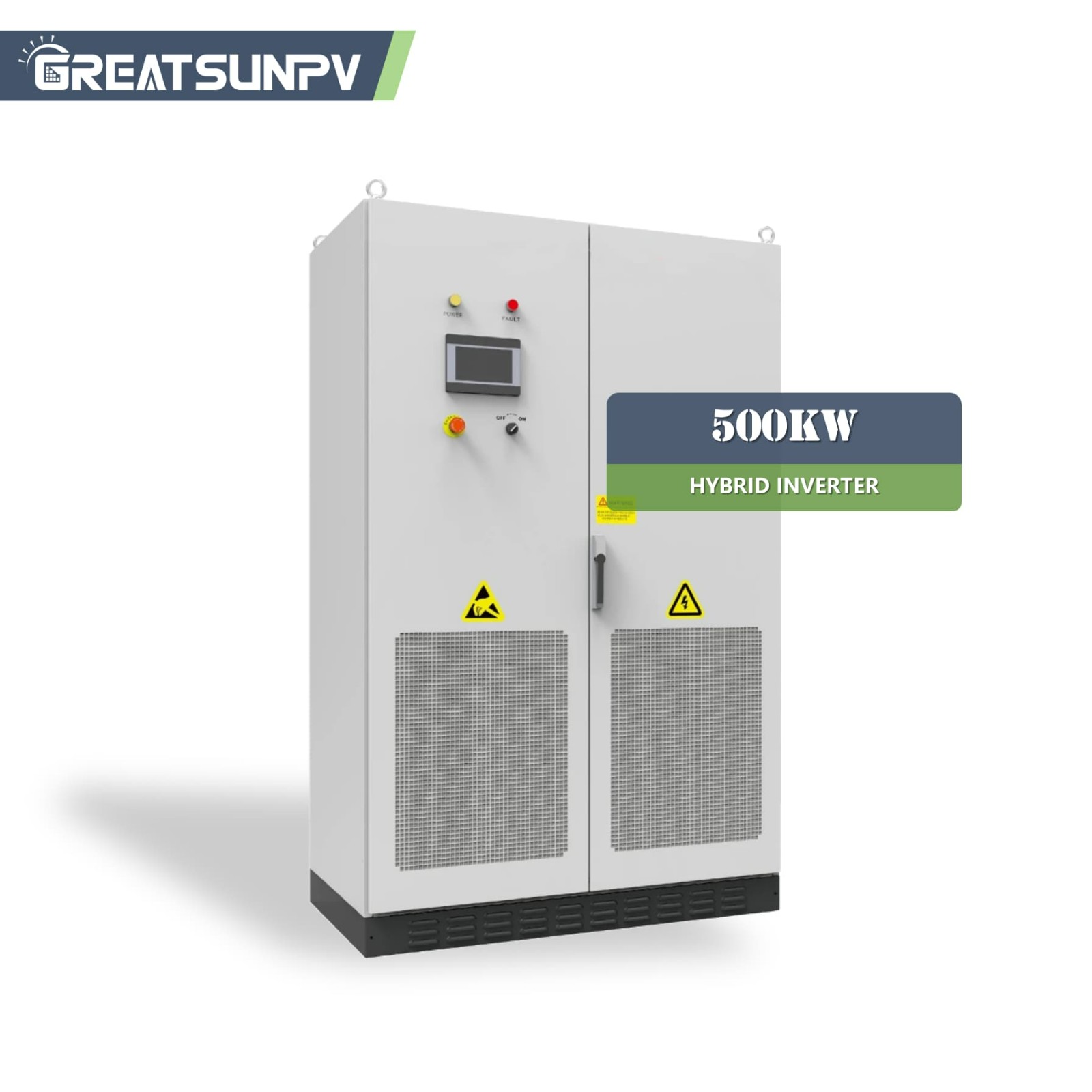

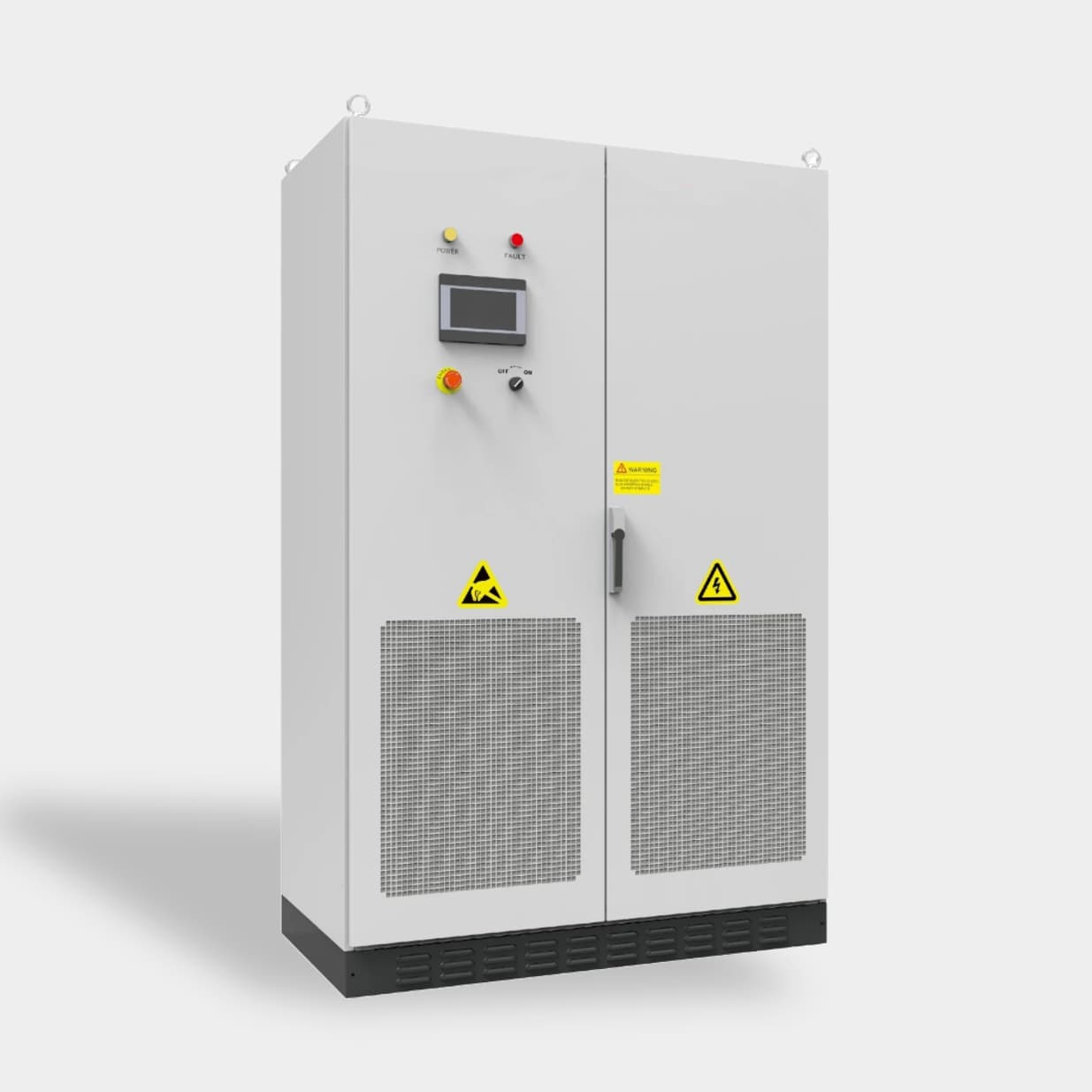

Commercial Hybrid Inverter
* Capactiy 100KW-500KW, three phase output for commercial & industrial use
* Dry contact output, support remote control of DG
* Off-grid transfer within 10ms, stable for power supplycharging/discharging
* Integrated with Isolation Transformer

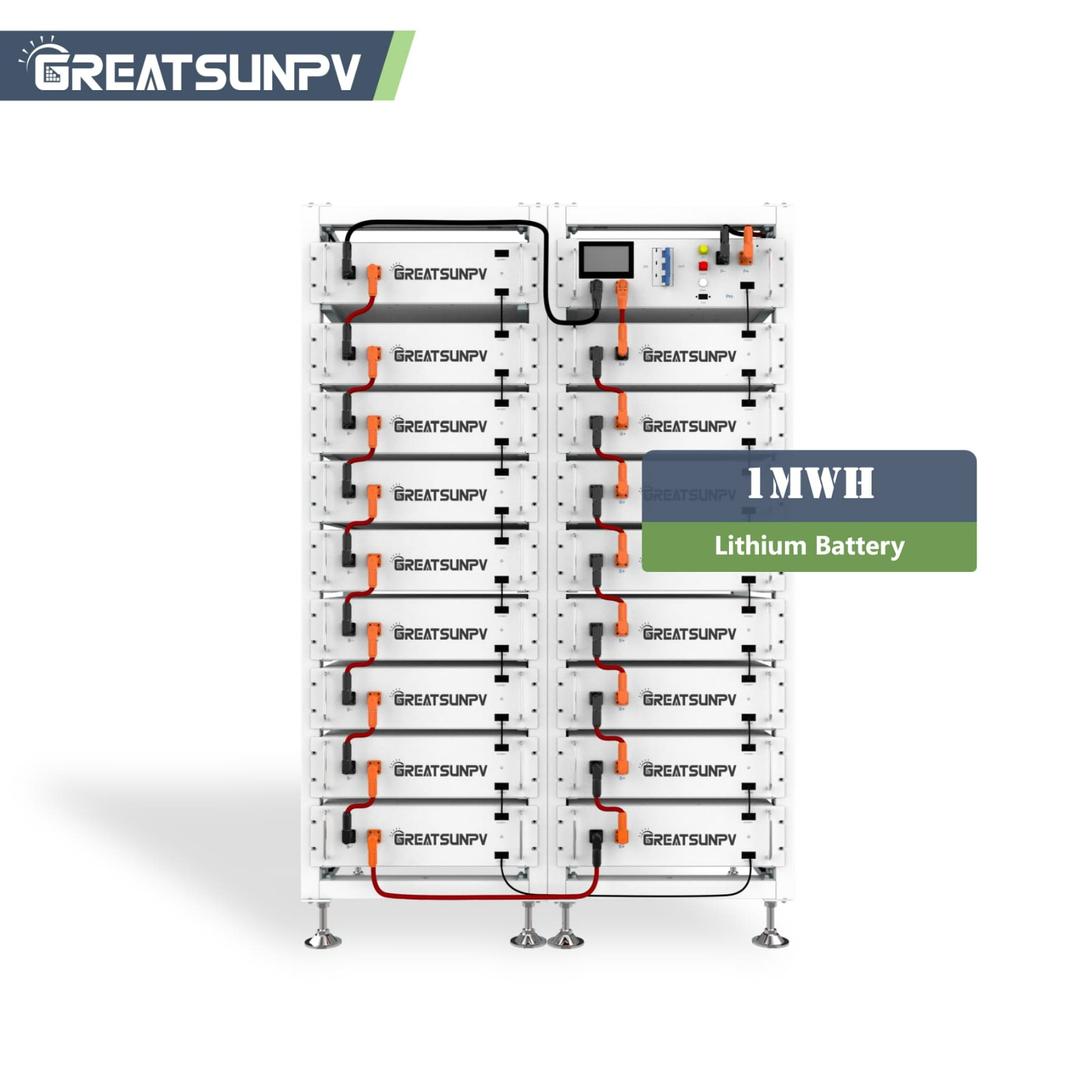

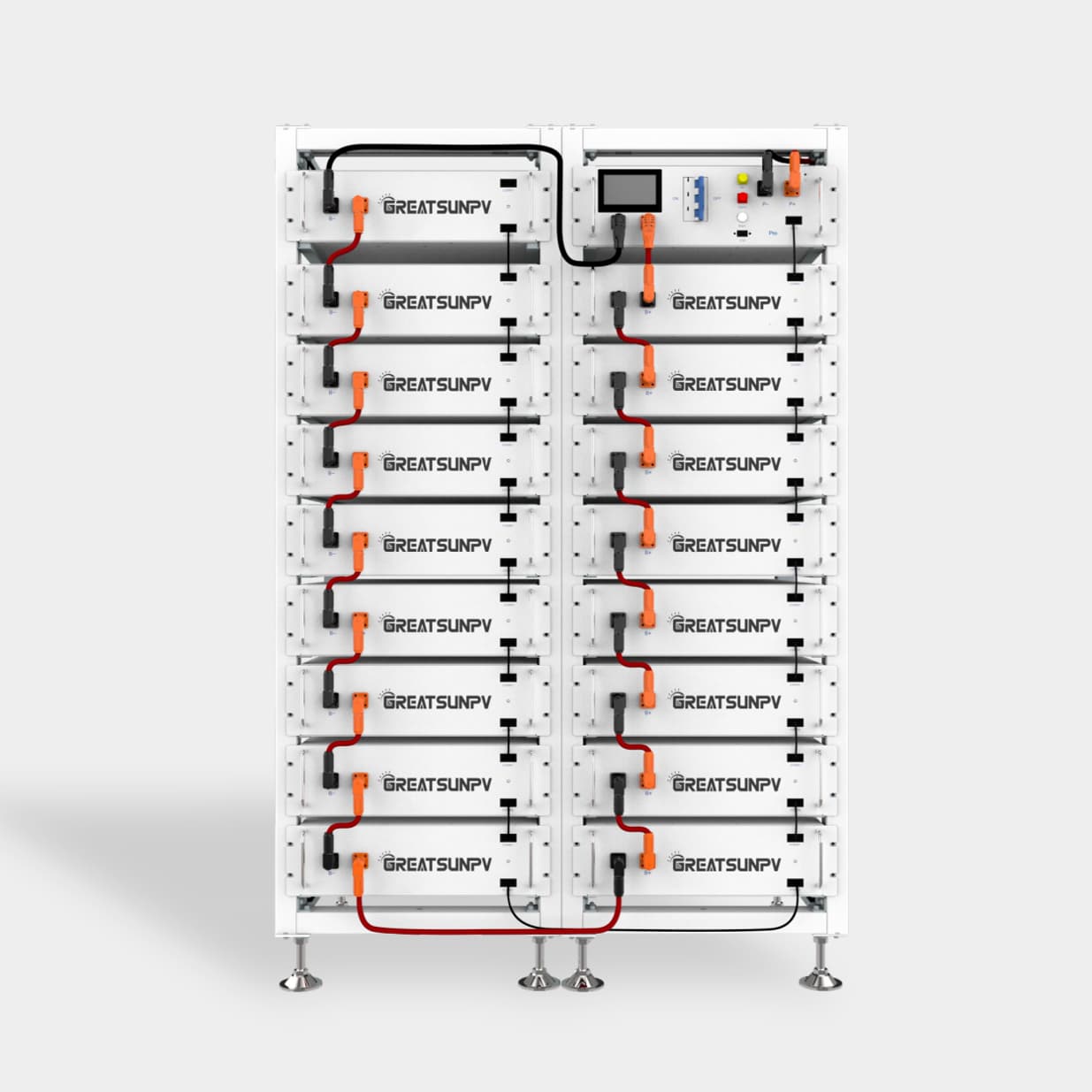

High-performance LiFePO₄ Lithium Battery
* LiFePO4: Higher Safe Performance and
* longer cycle life
* Aerosol Fire :Extinguishing System
* Flexible Installation: Stack-Mounted/Wall Mounted
* Wide Compatibility: Compatible with leading Inverter brands
* Design Life Span: 15 Years
* Warranty: 10 Years
Online Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

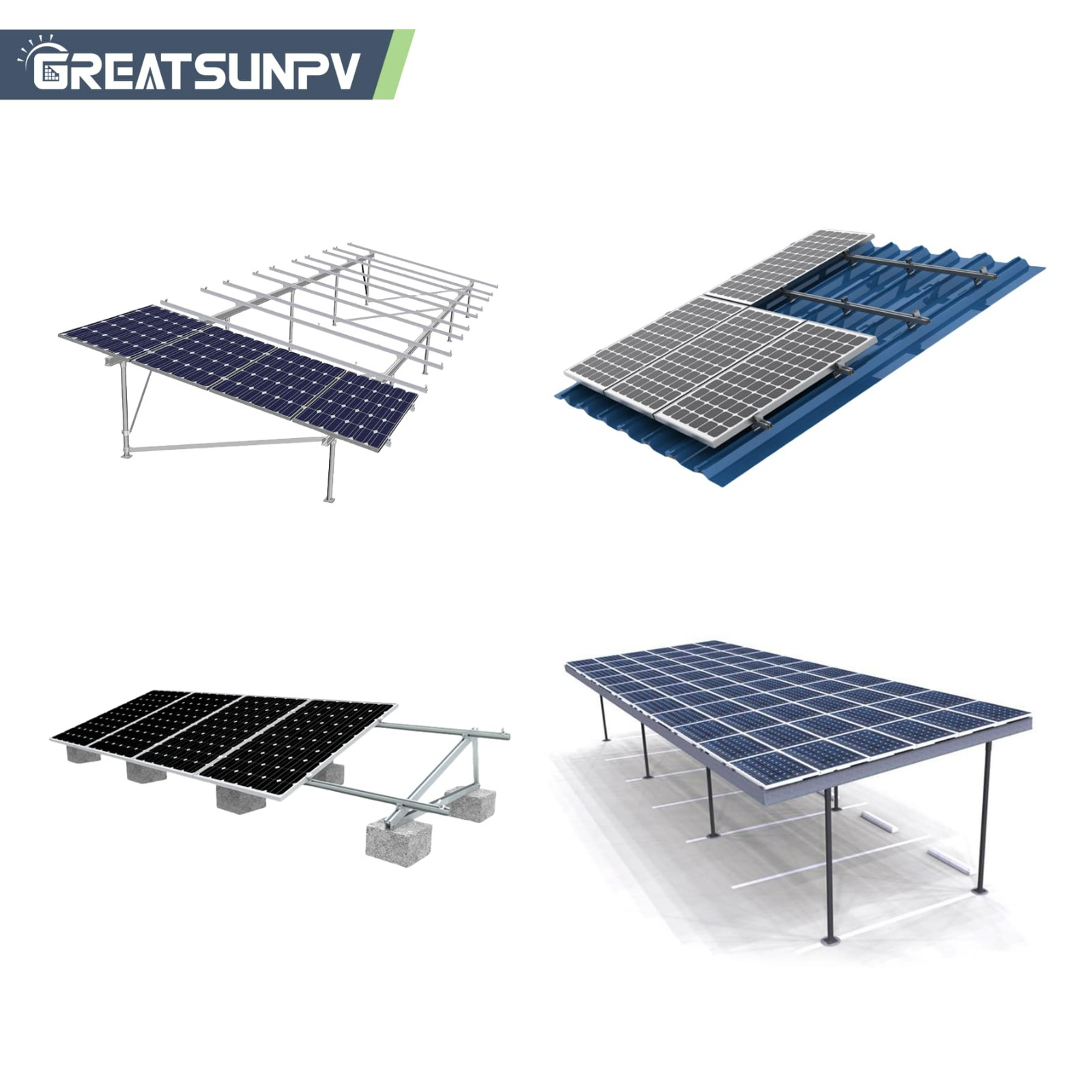

PV Mounting System
* Residential Roof(Pitched Roof)
* Commercial Roof(Flat roof&workshop roof)
* Ground Solar Mounting system
* Vertical wall solar mounting system
* All aluminum structure solar mounting system
* Car parking solar mounting system

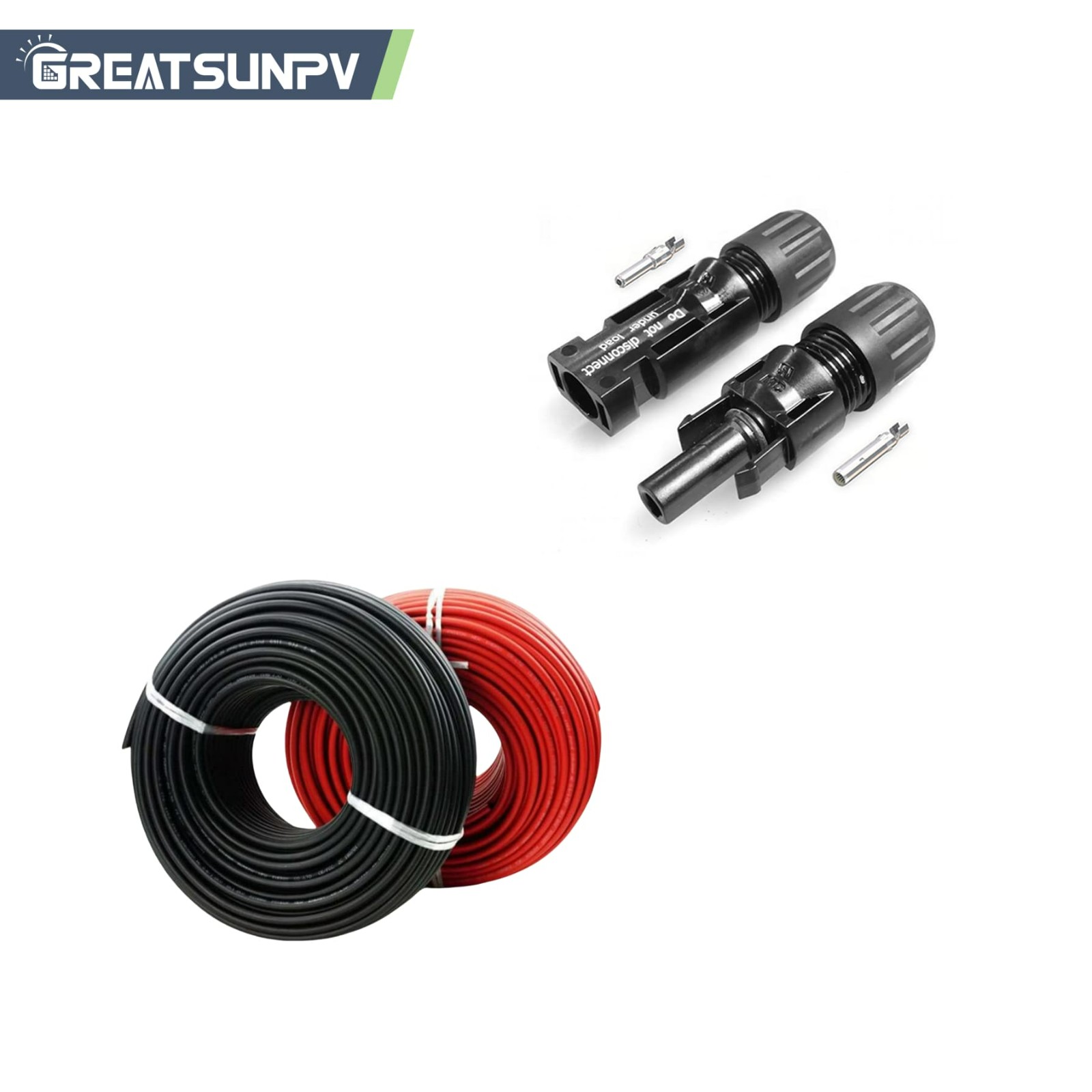

DC Cable & MC4 Connector
* Cross Section: 4mm2, 6mm2 Optional
* Rated Voltage:1000VDC/1500VDC
* Rated Current: 55A,70A
* Colors: Black For STD, Red Optional.
Installation Tools
* Whole set tools of Installing solar system, Crimping pv connector with cable.
* Solar Crimper Connector Wrench
PV Combiner Box
* Customized pv combiner box for solar panels connection
* Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
* IP65 Waterproof, applicable for outdoor PV systems
System Configuration：
| Model | HSS-100KW | HSS-150KW | HSS-300KW | HSS-500KW | HSS-1000KW |
| Mono 600W Solar Panel | 140 PCS | 210 PCS | 420 PCS | 695 PCS | 1390 Pcs |
| PV Combiner Box | 1 PCS | 1 PCS | 2 PCS | 10 PCS | 20 PCS |
| Hybrid Inverter | 1X100kW | 1X150kW | 2X150kW | 1X500kW | 1X1MW |
| Lithium Battery | 150kWh | 300kWh | 600kWh | 1MWh | 2MWh |
| DC Cable 4mm2 | 2000 Meter | 3000 Meter | 6000 Meter | 8000 Meter | 12000 Meter |
| MC4 Connector | 100 Pairs | 120 Pairs | 200 Pairs | 300 Pairs | 600 Pairs |
| Mounting System | Customized Based On Installation Roof/Ground | ||||
| PV Installation Tools | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |

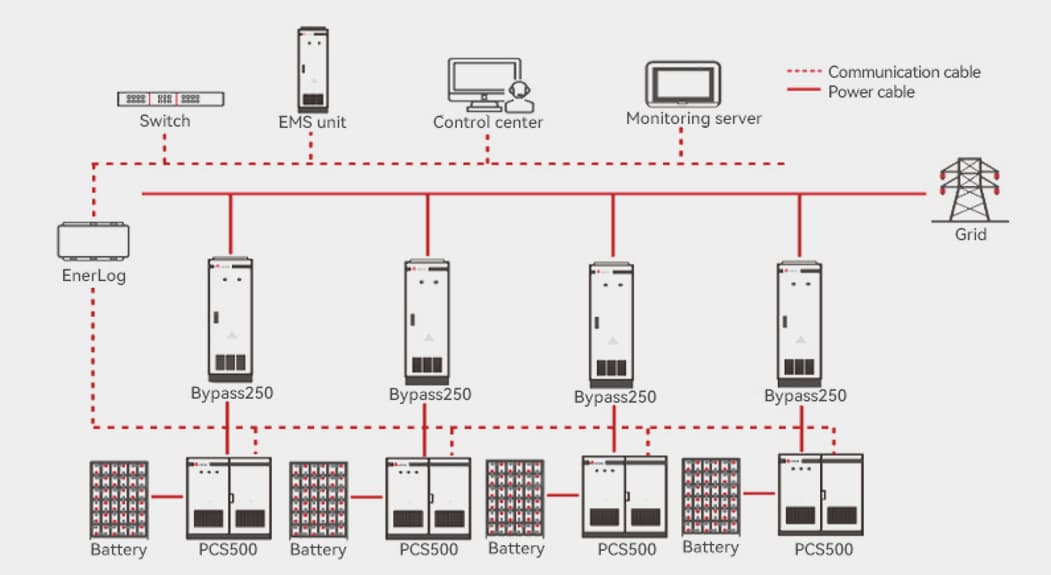

System Diagram:
Ideal for
Industrial plants
Mining/off-highway operations
Remote industrial zones
Large agricultural facilities
Packing & Delivery:
