100kwh 200kwh cabinet all in one out door use with cooling system
Designed for outdoor high-voltage setups, the GREATSUNPV PowerROCK ESS delivers large-capacity energy storage for big homes and small C&I applications. It optimizes solar self-consumption, provides backup power, and enables peak shaving for efficient energy management.
Brand Name:
GREATSUNPVNominal Battery Energy:
202KWHWarranty:
10 YearsNominal Voltage:
739~937VBattery Capacity:
202KWHDimension(mm):
2400*1730*1590mm(H*W*D)Weight(kg):
3200Certification & Safety Standard:
GB/T 36276, UN38.3

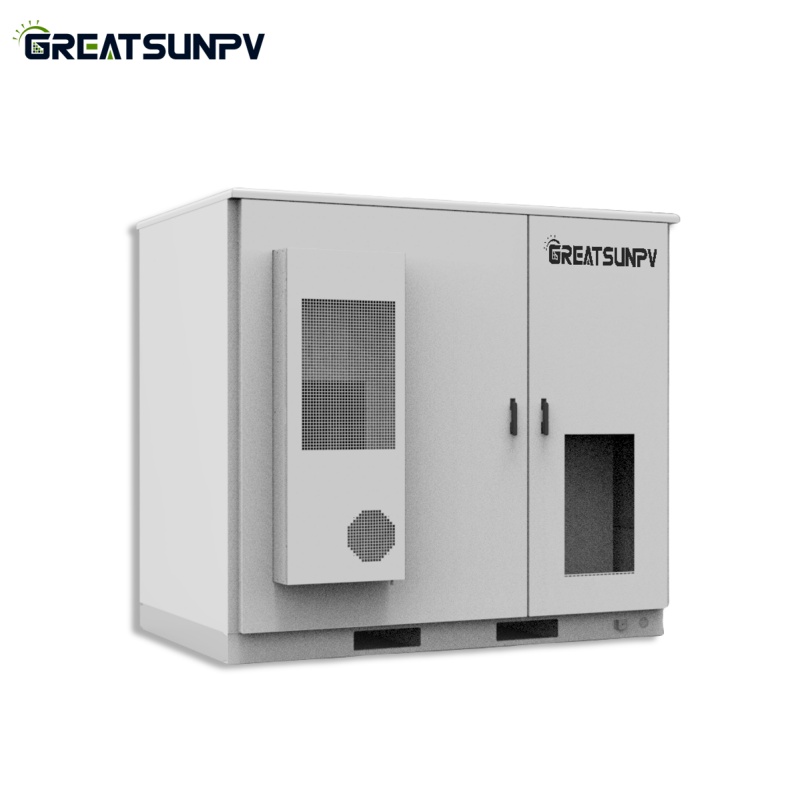

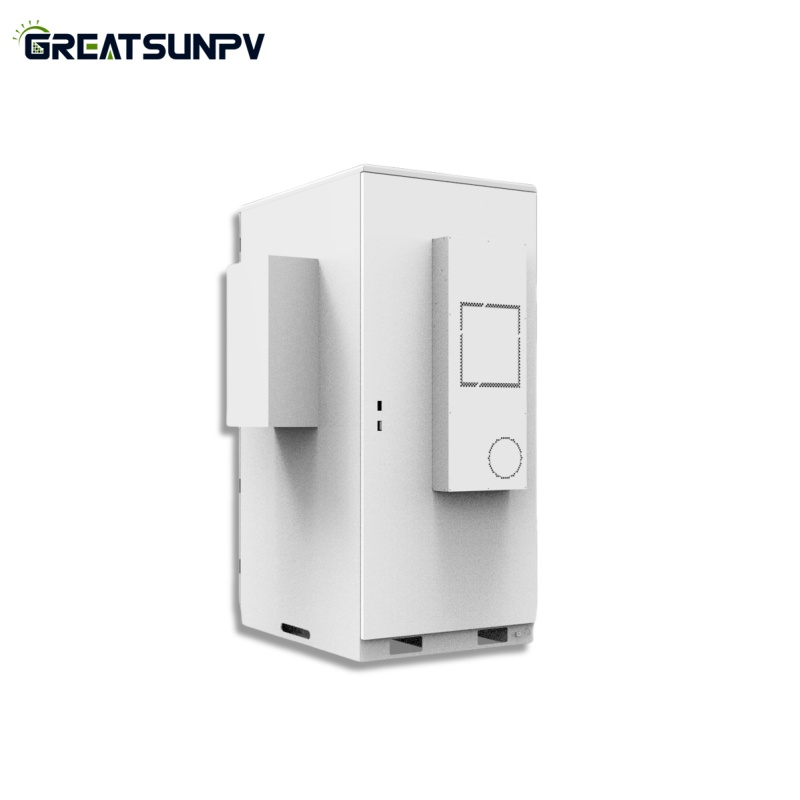

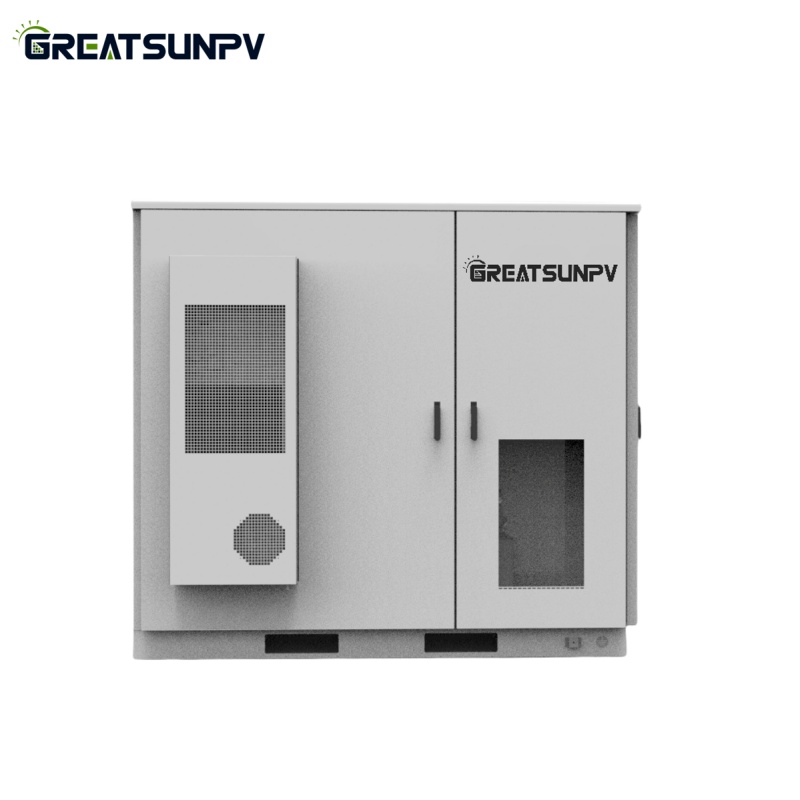

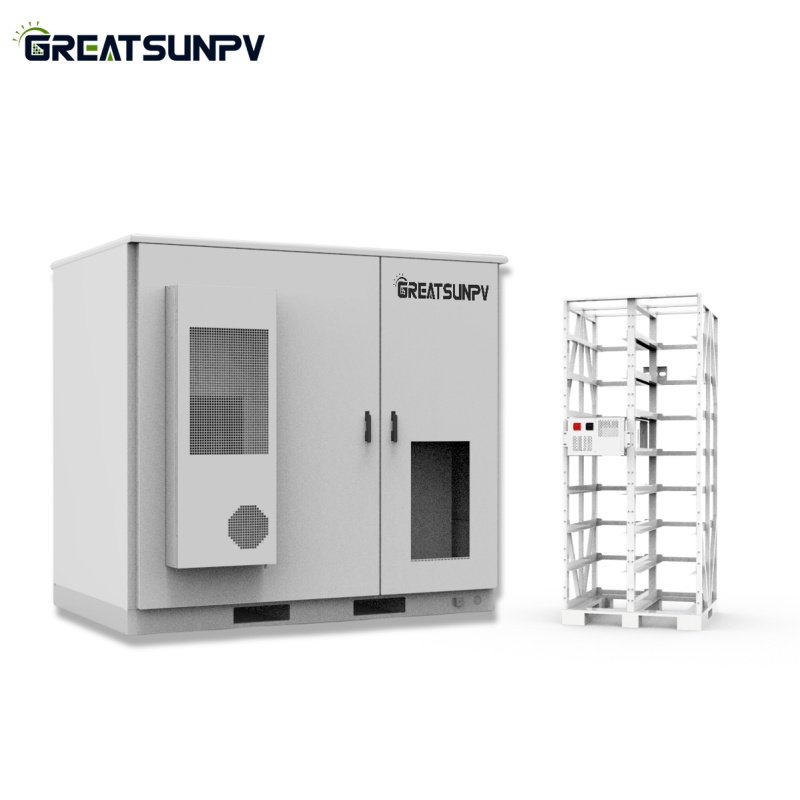

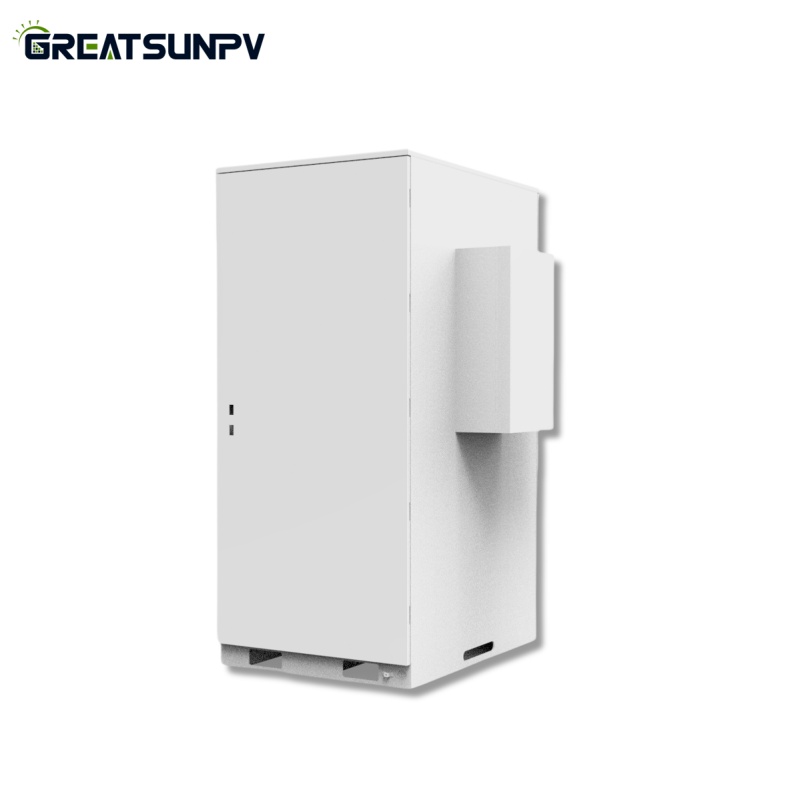

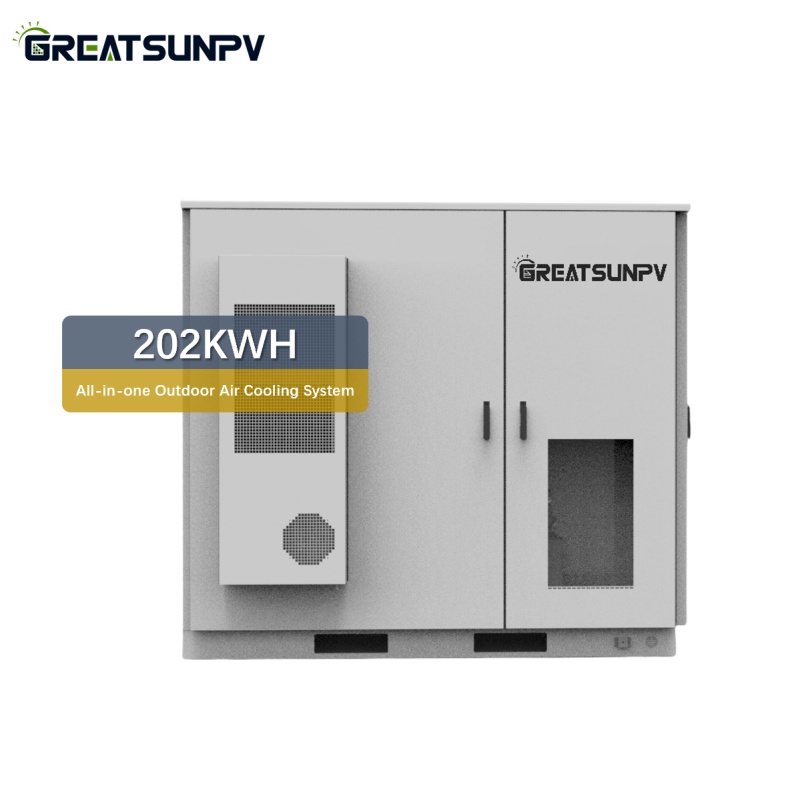

GREATSUNPV PowerROCK ESS
Designed for outdoor deployment, the GREATSUNPV PowerROCK ESS specializes in high-voltage configurations, providing robust performance for demanding energy needs. With expanded capacity per unit, it seamlessly supports large residential properties and small commercial and industrial (C&I) applications. The system is engineered to optimize solar self-consumption, ensure reliable backup power, and enable peak load shaving, while offering additional smart energy management features to maximize efficiency and cost savings. Its durable design and scalable architecture make it ideal for users seeking resilient, high-capacity solutions in diverse outdoor environments.
Key Features:
Application Scenarios:
Data Sheet:
| Model | PowerRACK ESS-202 |
| Total energy | 202kWh,25℃@0.5c |
| Dimension | 2400*1730*1590mm(H*W*D) |
| Weight | 3200KG |
| Nominal battery voltage | 844.8V |
| Battery working voltage range | 739~937V |
| Nominal Frequency | 50Hz |
| Max Charging/Diacharging power | 100kW |
| AC max discharge current | 150A |
| Cooling method | Air Cooling |
| On off grid method | Manual/Auto |
| AC output | 3P+PE |
| Discharge overcurrent protection current | 240A(5S) |
| Fire extinguishing type | Aerosol automatic fire extinguishing |
| IP grade | IP54 |
| Operation temperature | -20℃-50℃(over 45℃ Power derating) |
| Module standard | GB/T 36276、UN38.3 |
| Cycle life | ≥6000@90%DOD(25±5℃) |

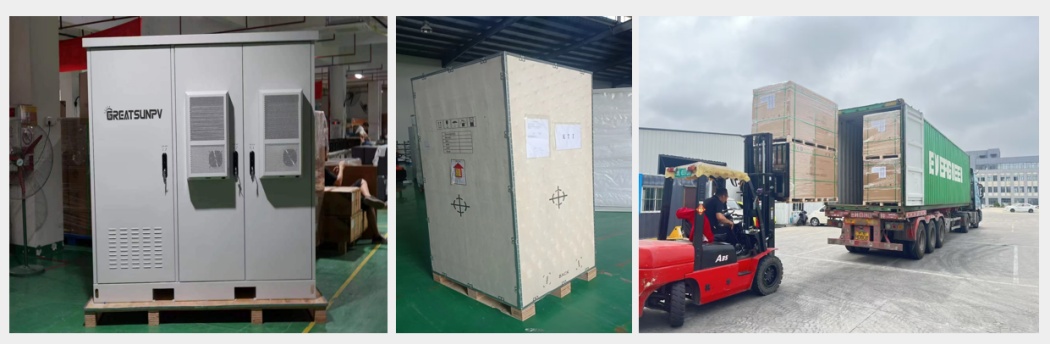

Production & Package:
