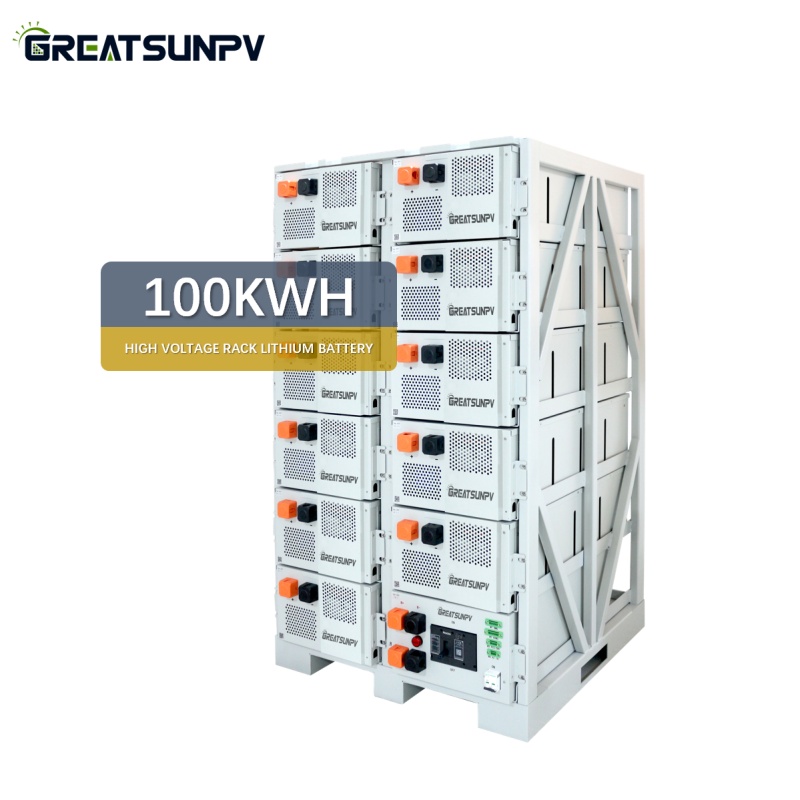

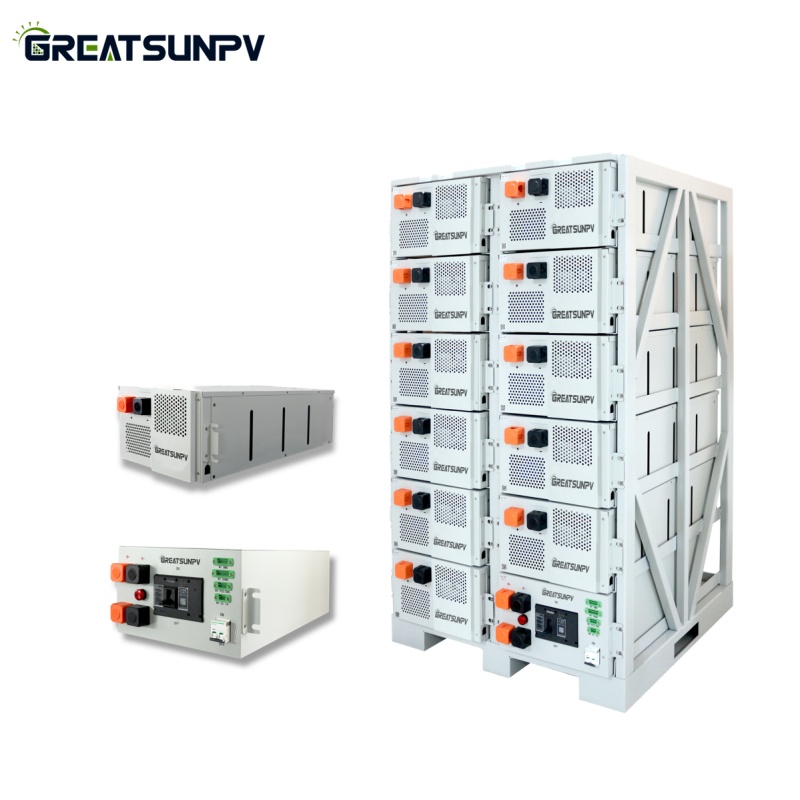

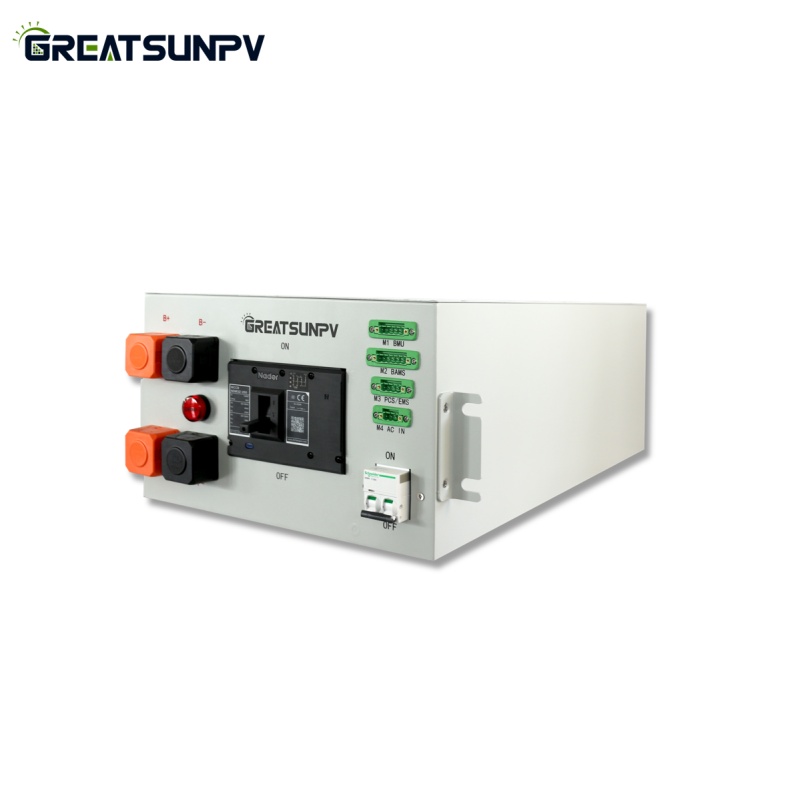

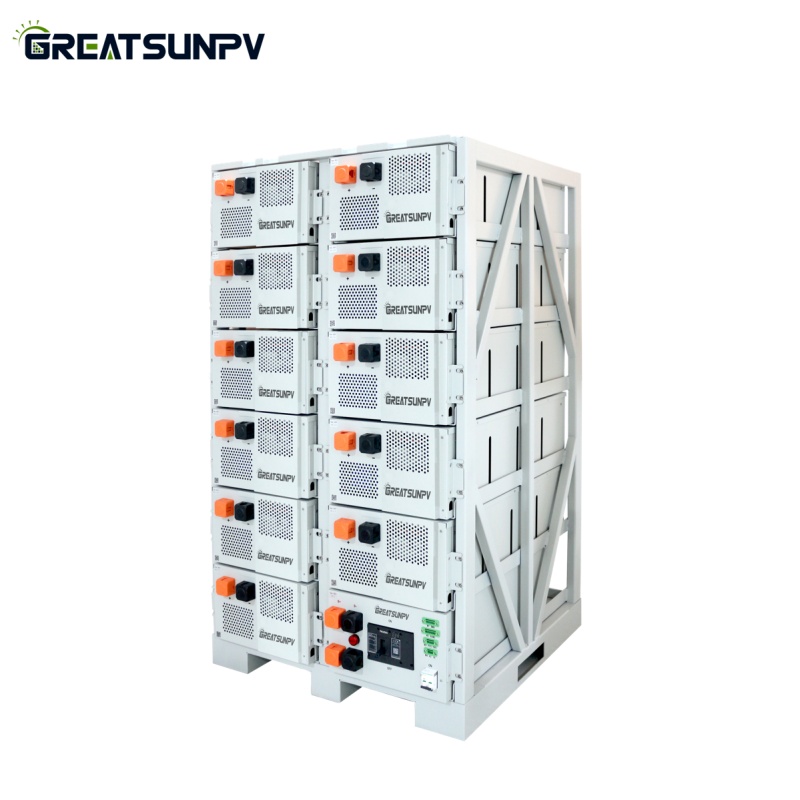

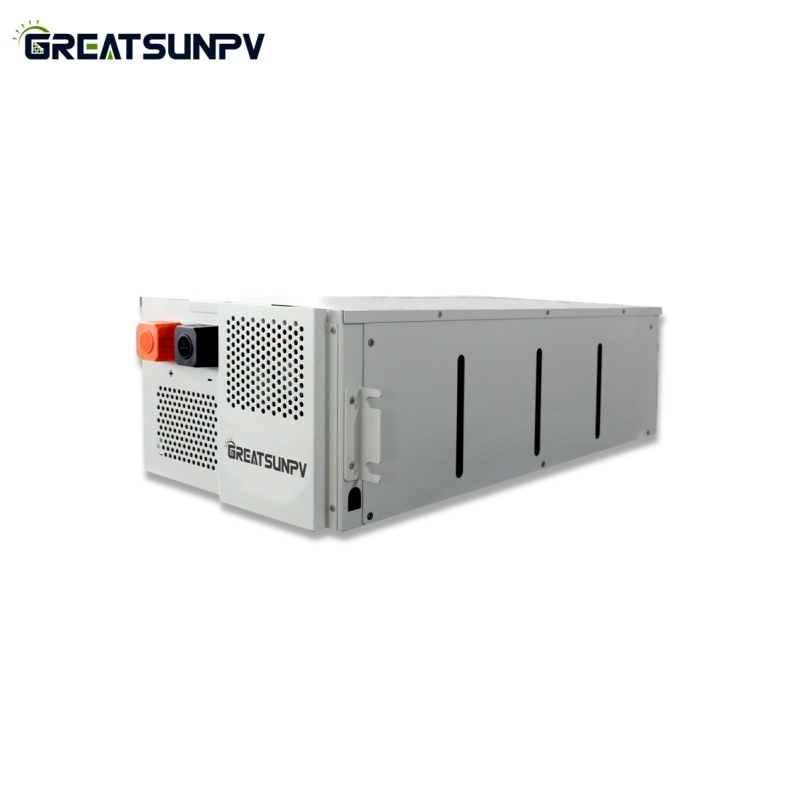

Free shipping 100kwh 200kwh high voltage battery with 50kw and 100kw inverter
The 51.2v 100ah Lithium Battery is efficient, safe and environmentally friendly energy storage devices.
Brand Name:
GREATSUNPVNominal Battery Energy:
100KWHWarranty:
10 yearsNominal Voltage:
51.2VBattery Capacity:
51.2V 100AHDimension(mm):
502*940*2146Weight(kg):
1004.4Certification & Safety Standard:
UL ,CE, ISO, MSDS, UN38.3Key Features:
High Performance:
5.12kWh capacity | 6000+ cycles for long-term energy support.
Intelligent Management:
Cloud-based monitoring | Real-time energy/battery analytics | Optimizes efficiency & cost.
Scalable Design:
Supports multi-rack setups | Up to 12 modular batteries in series.
Easy Installation:
Lightweight (48.8kg/module) | Streamlined setup with detailed manual.
Advanced Safety:
BMS protection against overcharge/discharge/short circuits | Ensures system longevity.
Durable Build:
High IP rating | Wide temperature tolerance | Rugged environment-ready.
Warranty:
10-year coverage | Full replacement guarantee | Up to 6000 cycles.
Specification:
| Model | GS RACK HV-40.9 | GS RACK HV-51.2 | GS RACK HV-102.4 |
| Rack Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Moudle Type | LFP51100 | LFP51100 | LFP51100 |
| Moudle Quantity | 8PCS | 10PCS | 20PCS |
| Cycle Life | ≥6000@25℃ | ≥6000@25℃ | ≥6000@25℃ |
| Nominal Energy (KWH) | 40.9 | 51.2 | 102.4 |
| Nominal Capacity (AH) | 100 | 100 | 100 |
| Norminal Voltage (V) | 409.6 | 512 | 1024 |
| Operating Vol Range (V) | 358.4~460.8 | 448~576 | 896~1152 |
| Max.Power Output (KW) | 40.9 | 51.2 | 102.4 |
| Charge/Discharge current(A) | 50A(Recommended)100A(3S) | 50A(Recommended)100A(3S) | 50A(Recommended)100A(3S) |
| Approx Dimension (L*W*H) | 512*460*1790(MM) | 502*940*1256(MM) | 502*940*2146(MM) |
| Approx Weight | 404.6KG | 502.2KG | 1004.4KG |
| Warranty | 10 years | 10 years | 10 years |
| Certificates | UL ,CE, ISO, MSDS, UN38.3 | UL ,CE, ISO, MSDS, UN38.3 | UL ,CE, ISO, MSDS, UN38.3 |
| Module Quantity and Configuration | 8 Units in series 1 BMU |
10 Units in series 1 BMU |
10 Units in series, 2 Parallel 2 BMU |
Compatible Inverter List:
Production & Package:
High-Voltage Lithium Battery Advantages:
Higher Energy Density
High-voltage lithium batteries store more energy per unit volume/weight compared to standard lithium batteries, enabling longer runtime in applications like EVs and portable electronics.
Faster Charging Capability
Their elevated voltage supports higher power input, allowing rapid charging without compromising battery lifespan or safety.
Improved Efficiency
Reduced internal resistance and energy loss during discharge make them ideal for high-power devices, enhancing overall system performance.
Compact and Lightweight Design
Higher voltage reduces the number of cells required to achieve a target voltage, simplifying battery packs and saving space/weight in drones or aerospace systems.
Extended Cycle Life
Advanced materials minimize degradation, ensuring stable capacity retention over 6000 of charge-discharge cycles.
