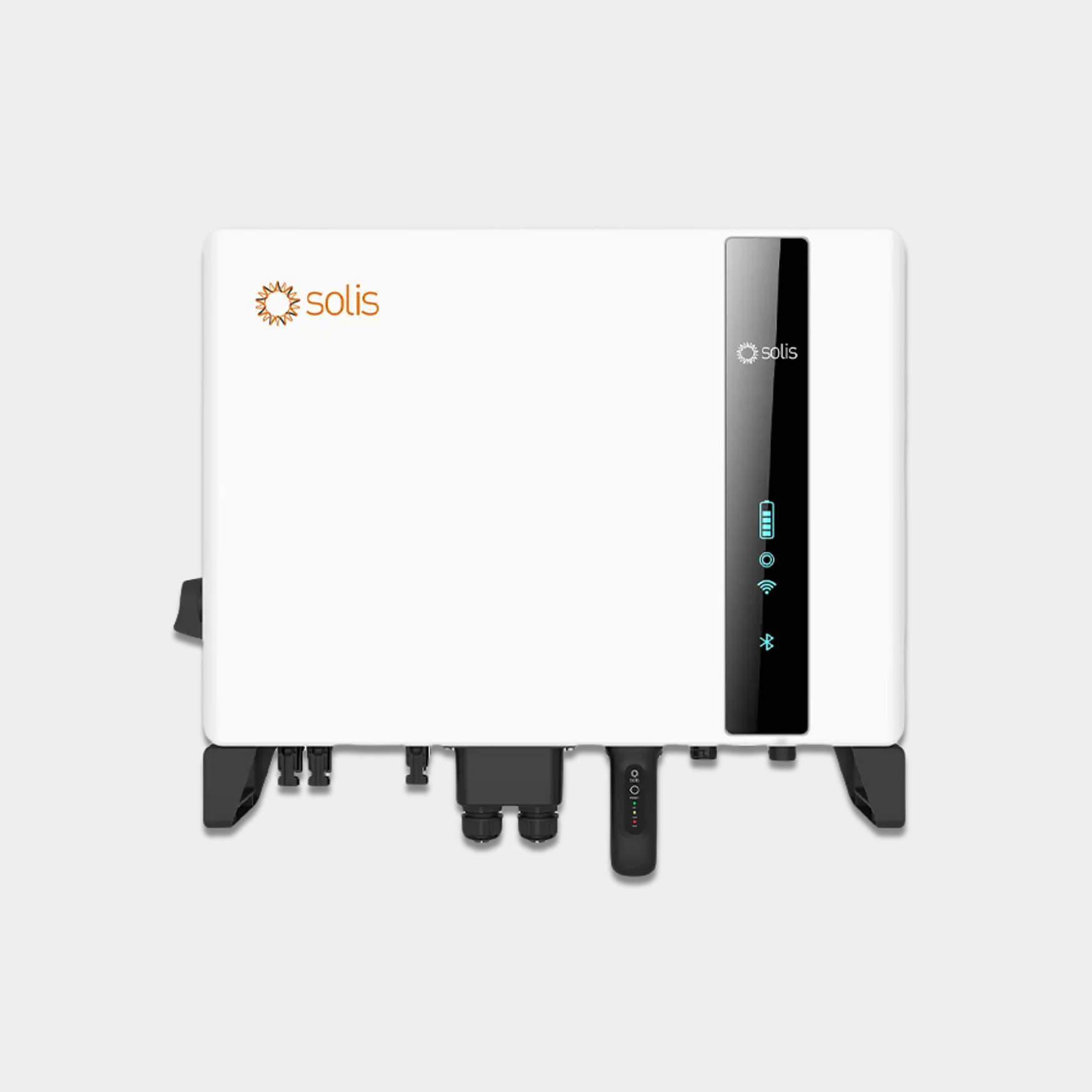

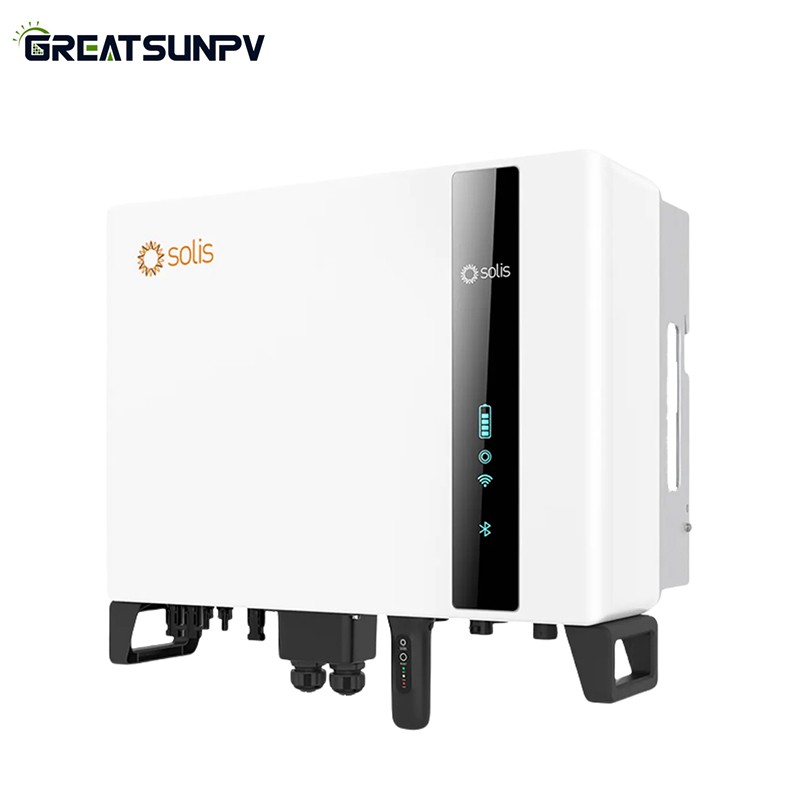

Stocked 3 Phase Inverters 5kw 8kw 10kw Energy Storage solis Inverter

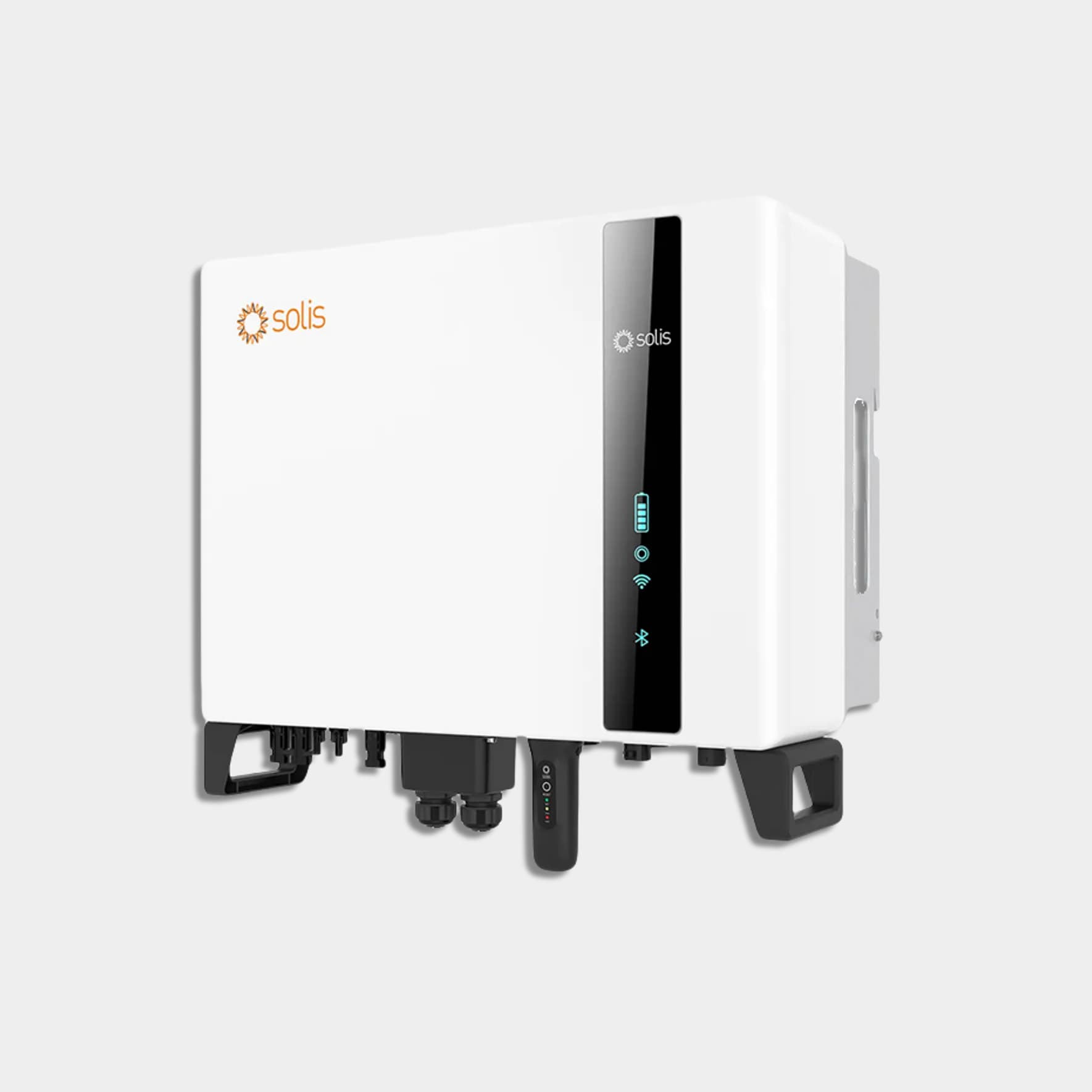

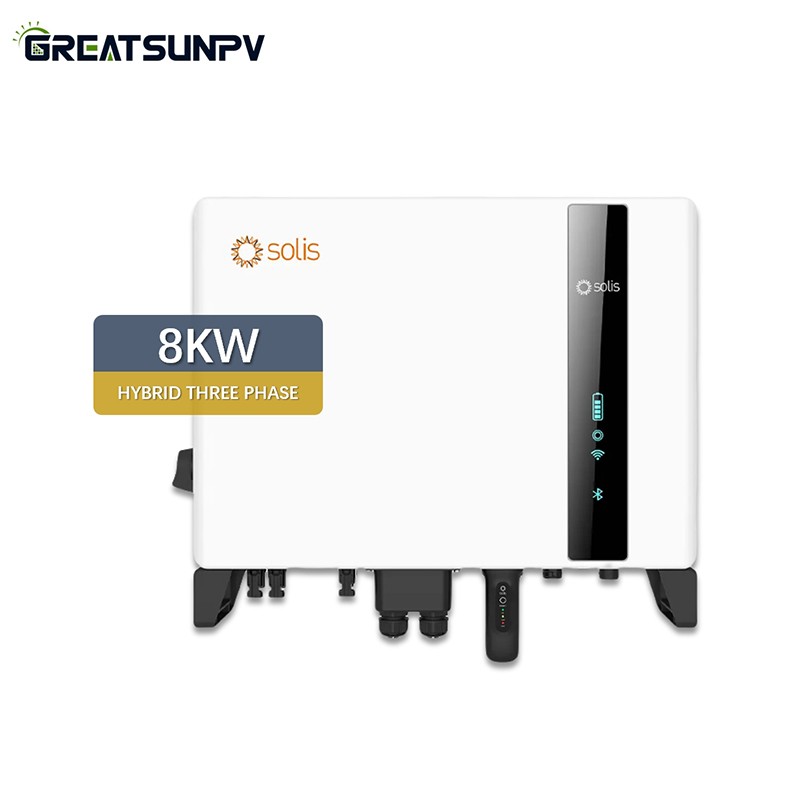

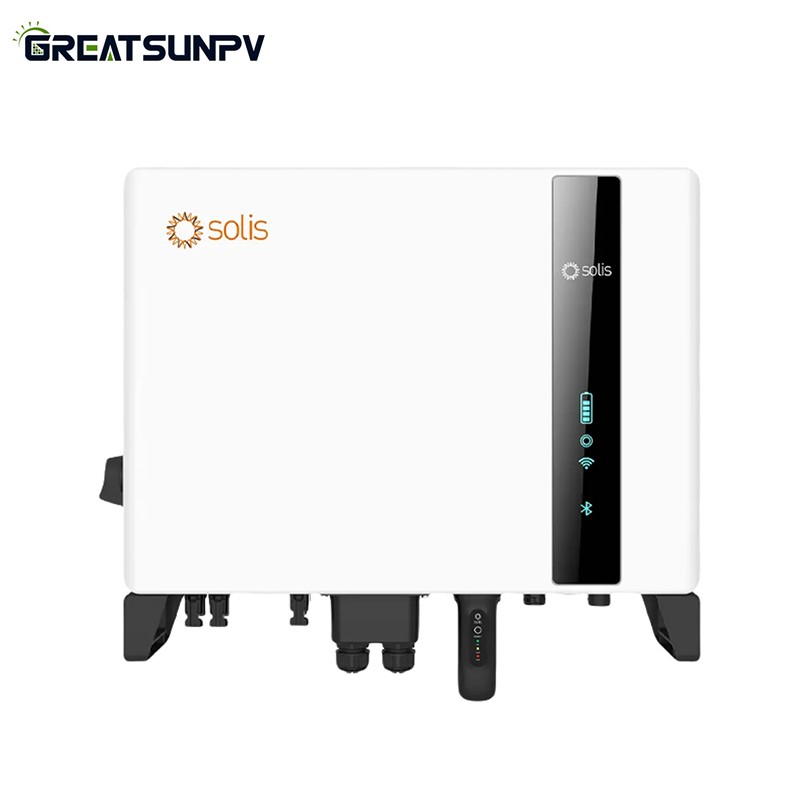

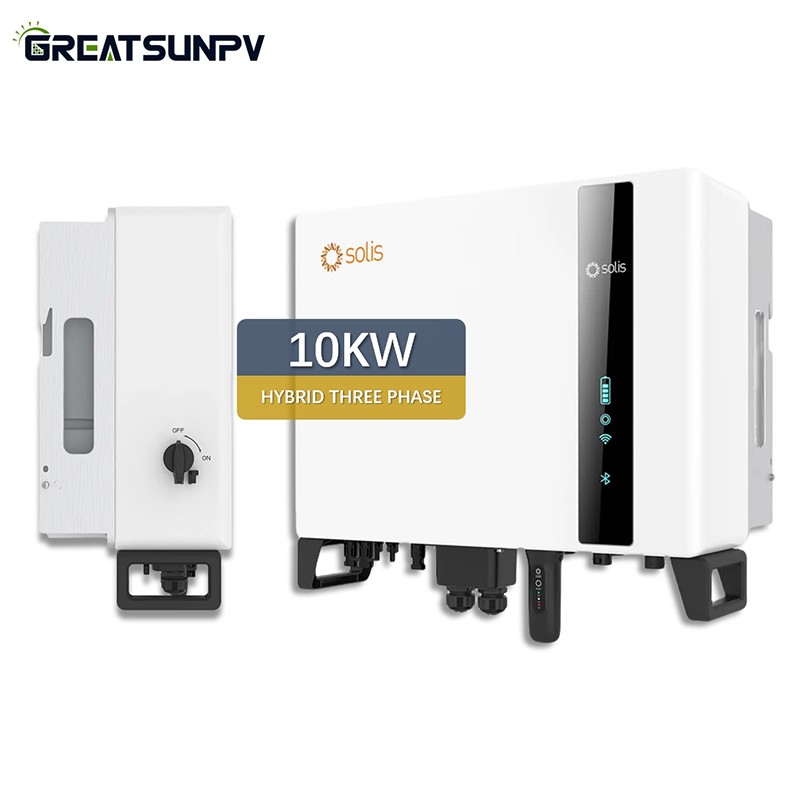

GREATSUNPV Stocked 3 phase Solis S6(S6-EH3P(5-10)K2-H) : High-efficiency three-phase hybrid inverter for solar storage. Supports 160% PV input, fast backup switching, TOU optimization, IP66.
Brand Name:
SolisType:
HybridMax. Power:
5-10KWAC Voltage:
1000VWarranty:
10 yearsIngress Protection:
IP66Dimensions:
600 × 500 × 210 mm/600 × 500 × 230 mmCertification & Safety Standard:
NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150, G98, CEI 0-21,
Product Introduction：
At GREATSUNPV, we provide reliable and future-ready energy storage solutions for the European market. The Solis S6-EH3P (5–10)K2-H Series is a three-phase high-voltage hybrid inverter engineered for residential and small commercial solar-plus-storage applications, delivering high efficiency, intelligent energy control, and grid-compliant performance.Designed to meet strict European grid standards, this inverter series supports 5kW to 10kW power ranges, making it ideal for modern homes, small businesses, and light C&I projects seeking energy independence and cost optimization.
Why GREATSUNPV Recommends This Inverter
Intelligent Energy Control for European Tariffs
The inverter features AI-driven energy management, automatically charging and discharging batteries based on Time-of-Use (TOU) electricity tariffs. This allows users to reduce peak energy costs and maximize solar self-consumption—a key requirement in European energy markets.
It also supports VPP and EMS integration, enabling advanced monitoring and grid interaction.
Flexible Battery Compatibility & System Scalability
Compatible with mainstream high-voltage lithium-ion batteries (120–600V), the inverter supports parallel operation and AC coupling, allowing system expansion as energy demands grow.
This flexibility is especially valuable for European households and businesses planning phased energy storage investments.
Installer-Friendly Design
GREATSUNPV prioritizes ease of installation and long-term reliability:
1.Bluetooth APP commissioning for fast setup

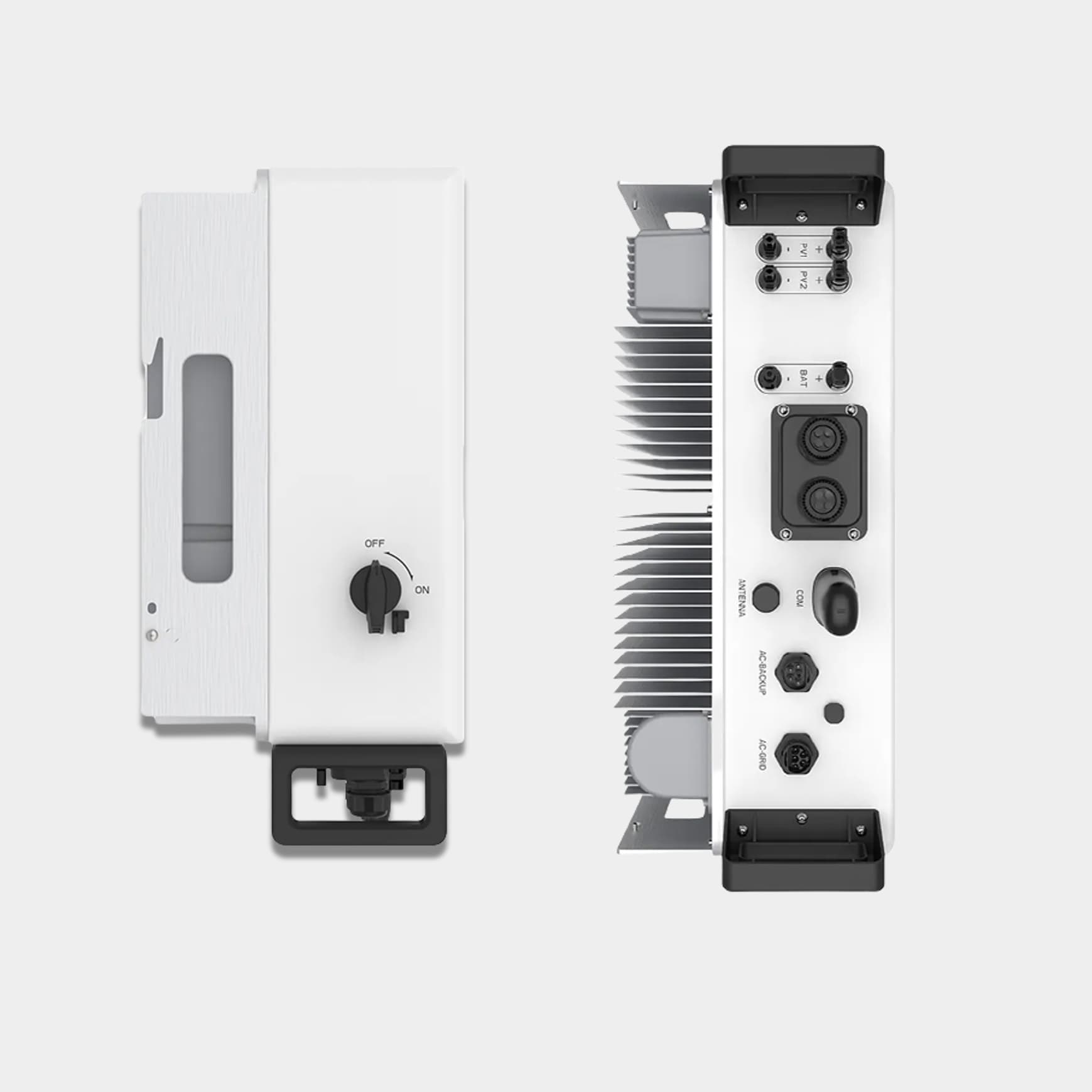

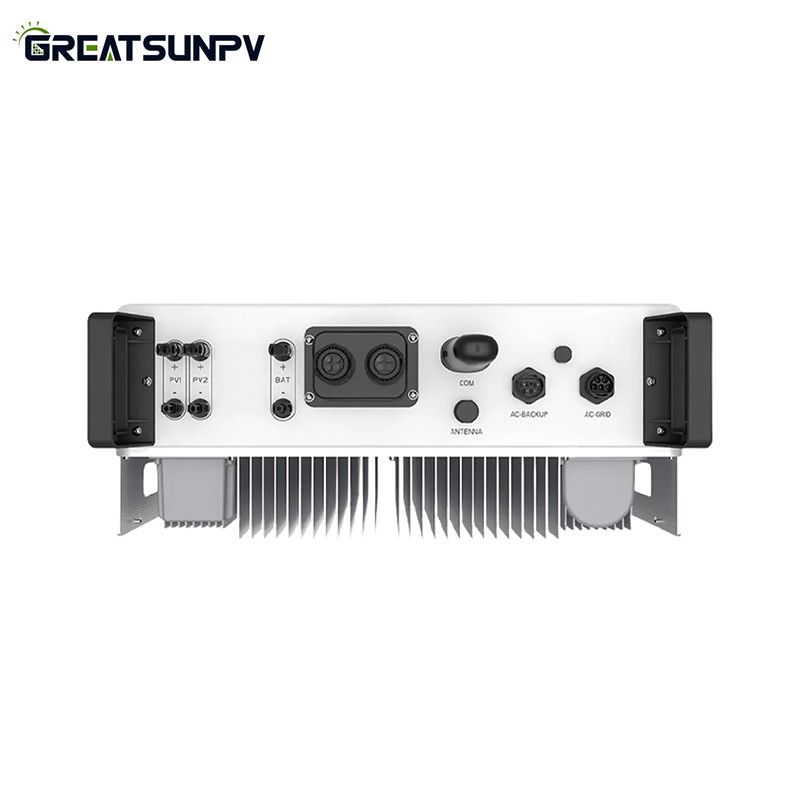

2.Quick-connect AC, PV, and battery terminals

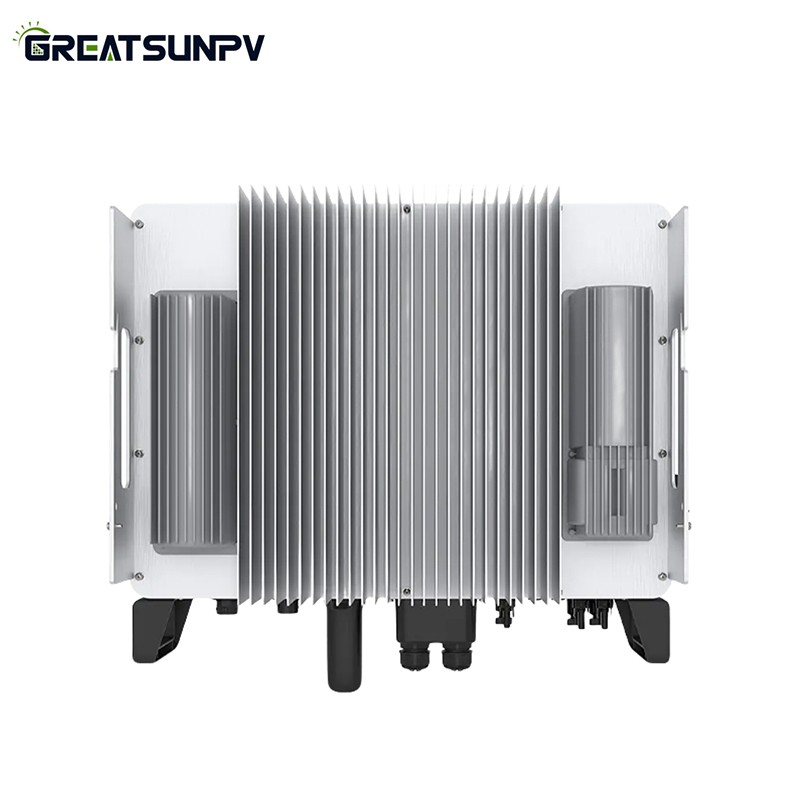

3.Natural cooling design for silent operation
4.Compact, wall-mounted form factor
These features reduce installation time and maintenance costs for installers and EPC partners.
Key Technical Specifications
PV Input
Max. DC voltage: 1000V
MPPT range: 200–850V
Dual MPPT, 2 strings
PV array size: up to 20kW (10kW model)
Battery System
Battery type: Lithium-ion (HV)
Voltage range: 120–600V
Max. charge/discharge power: 5–10kW
Communication: CAN
The inverter integrates comprehensive protection functions, including anti-islanding, over-current, short-circuit, DC polarity protection, and optional AFCI 2.0.
It is fully compliant with major European grid and safety standards, making it suitable for deployment across multiple EU countries.
1.Protection rating: IP66 (outdoor installation)
2.Operating temperature: -25°C to +60°C
3.Night standby consumption: <25W
4.Noise level: <46.9 dB(A)
Typical Applications
FAQ
1.What is the Solis S6-EH3P (5–10)K2-H inverter?
The Solis S6-EH3P (5–10)K2-H is a three-phase high-voltage hybrid inverter designed for residential and small commercial solar energy storage systems. It integrates PV generation, battery storage, grid connection, and backup power into one compact solution.
2.Is this inverter suitable for three-phase residential systems in Europe?
Yes. This inverter is designed for European three-phase power systems (380V/400V) and complies with major European grid and safety standards, making it suitable for residential and small commercial installations across multiple EU countries.
3.What battery types are compatible with this inverter?
The inverter supports mainstream high-voltage lithium-ion batteries with a voltage range of 120–600V. Battery communication is supported via CAN or RS485, ensuring stable and efficient energy management.
4.Does the inverter support Time-of-Use (TOU) optimization?
Yes. The inverter features intelligent energy management that optimizes battery charging and discharging based on Time-of-Use electricity tariffs. This helps users reduce peak electricity costs and increase solar self-consumption.
5.Can the inverter provide backup power during grid outages?
Yes. The S6-EH3P series provides backup power with an automatic switching time of less than 10 milliseconds, ensuring uninterrupted power supply for essential loads during grid failures.
6.How much PV oversizing does the inverter allow?
The inverter supports up to 160% PV input capacity, allowing larger PV arrays to be connected. This maximizes solar energy production, particularly under variable European weather conditions.
7.Is the inverter suitable for outdoor installation?
Yes. With an IP66 protection rating, the inverter is suitable for outdoor installation and can operate reliably in harsh environmental conditions such as rain, dust, and temperature variations.
8.Can the system be expanded in the future?
Yes. The inverter supports parallel operation and AC coupling, enabling flexible system expansion as energy
With GREATSUNPV, customers gain access to carefully selected, grid-compliant energy storage products that meet the performance, safety, and reliability expectations of the European market. The S6-EH3P hybrid inverter series is a proven choice for efficient, scalable, and intelligent solar energy systems.
