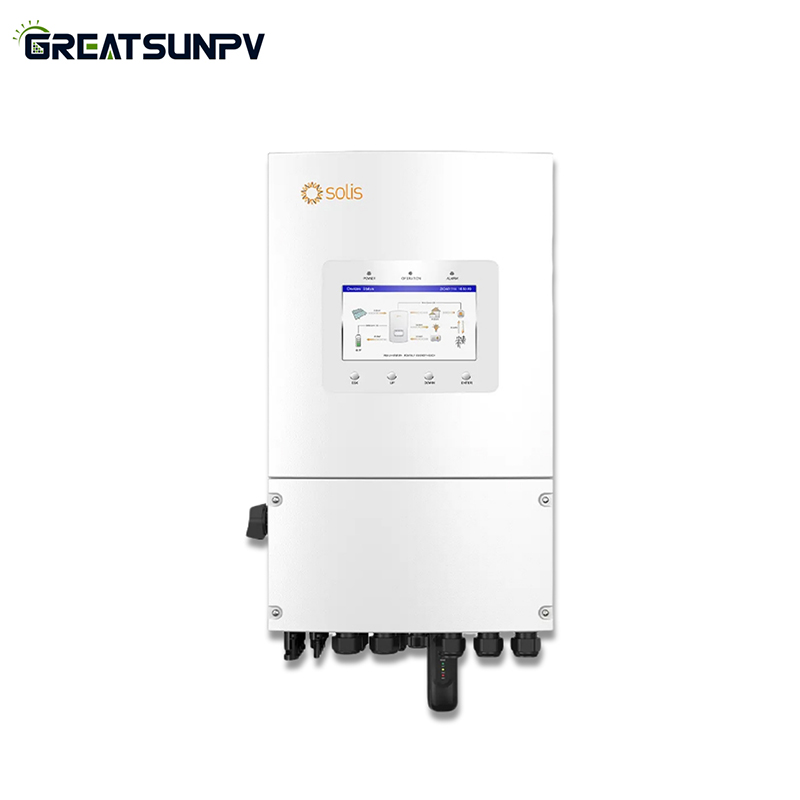

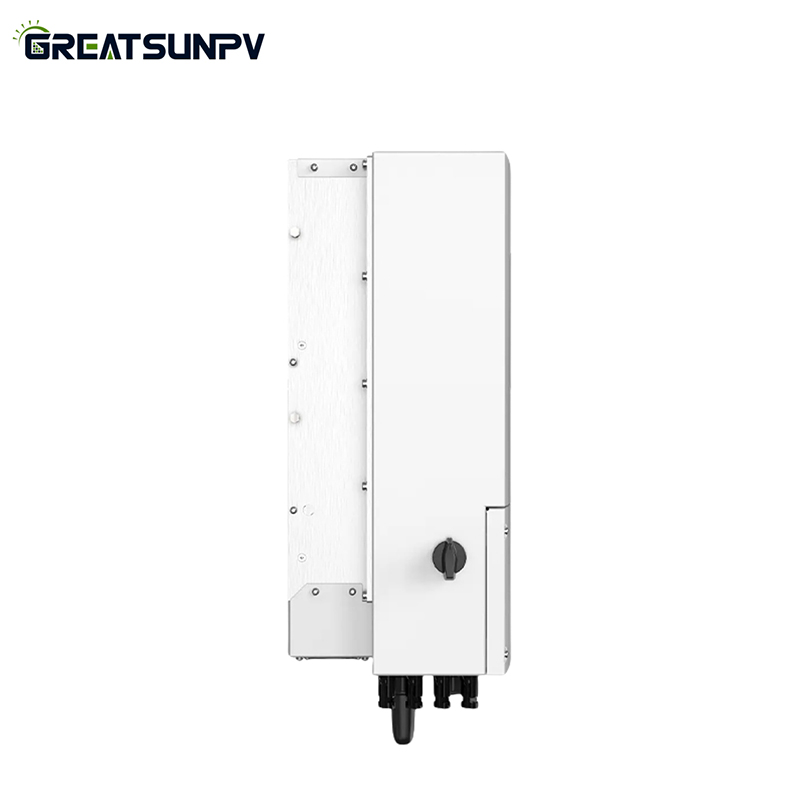

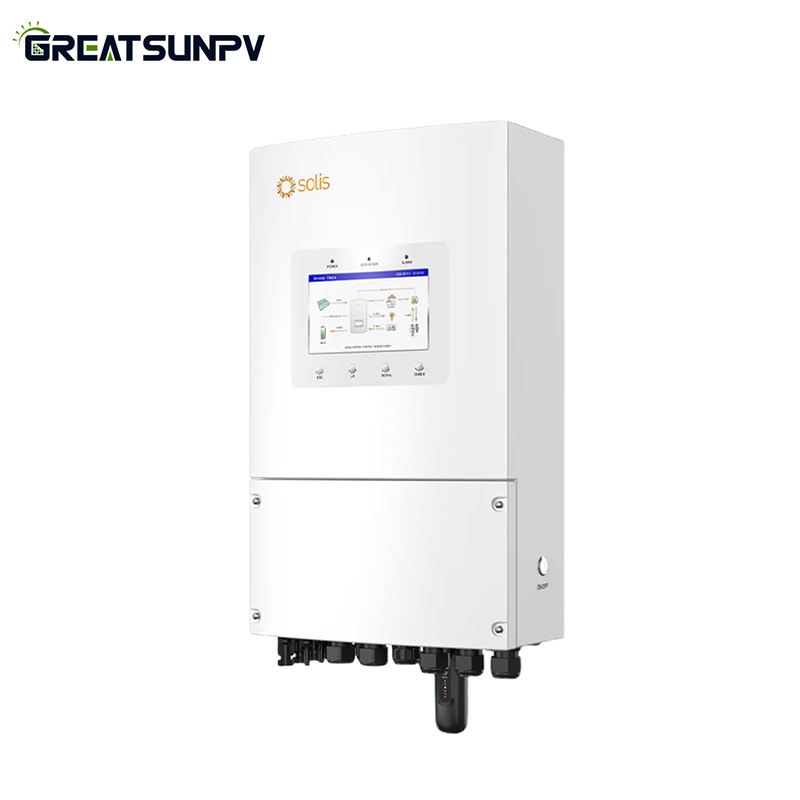

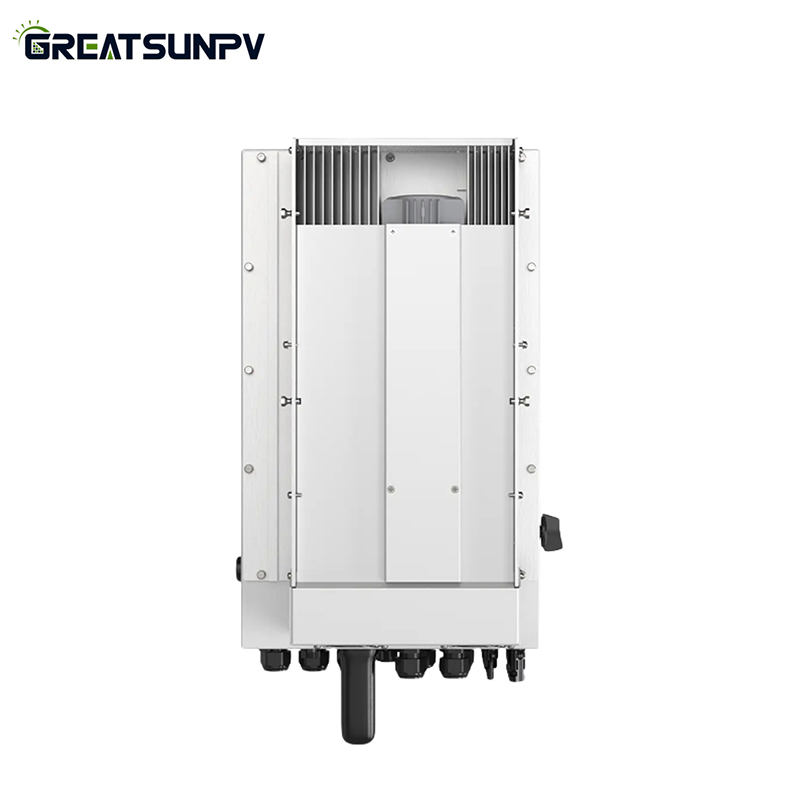

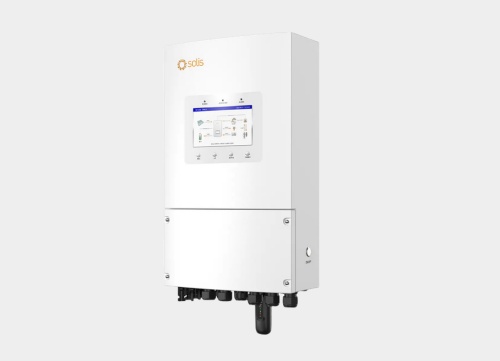

Stock 10years warranty 5kw 8kw 10kw hybrid inverter for residential

S6-EH1P(3-8)K-L-PLUS series energy storage inverter is suitable for residential solar energy storage system, provides solutions for demanding power scenarios with residential energy storage systems.

Brand Name:
Solis
Type:
Hybrid
Max. Power:
3-8KW
AC Voltage:
500V
Warranty:
10 years
Ingress Protection:
IP66
Dimensions:
335×560×253 mm
Certification & Safety Standard:
NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150, G98, CEI 0-21,

Inquiry now

Product Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Leading Features:

Smart Energy Management

• AI intelligently manages charging and discharging based on TOU (Time-of-Use) tariffs

• Seamless integration with VPP and EMS platforms for enhanced energy optimization

High Performance

• 160% PV input capacity to maximize solar energy utilization

• Switching time < 4ms

Flexible & Scalable

• Compatible with mainstream lithium and lead-acid batteries

• Easily expand system capacity using parallel connections and AC coupling

Simple & Fast Configuration

• 7-inch LCD screen for an intuitive user experience

• Bluetooth app support for quick and easy setup

• Smart I-V curve scan, system health report, string-level fault finding

• Connecting with multiple types of devices seamlessly: Inverters, export power managers, weather stations, etc.

• Manage multiple types of systems across residential, commercial and utility scale plants.Enables multiple team management across different sectors

• Clear and concise display of system performance and benefits including carbon emissions saved and equivalent trees planted as well as showing system yield & earnings

Datasheet:

Models	3K	3.6K	5K	6K	8K
Input DC(PV side)
Recommended max.PV array size	6kW	7.2kW	10kW	12kW	16kW
Max.usable PVinput power	4.8kW	5.76kW	8kW	9.6kW	12.8kW
Max.input voltage	500V
Rated voltage	330V
Start-up voltage	90V
MPPT voltage range	90-435V
Max.input current	6A/16A				32A/32A
Max.short circuit current	20A/20A				40A/40A
MPPT number/Max.input strings number	2/2				2/4
Battery
Battery type	Li-ion/Lead-acid
Battery voltage range	40-60V
Max.charge/discharge power	3KW	3.6KW	5KW	6KW	8KW
Max.charge/discharge current	70A	80A	112A	135A	190 A
Communication	CAN/RS485
Output AC(Grid side)
Rated output power	3KW	3.6KW	5KW	6KW	8KW
Max.apparent output power	3kVA	3.6kVA	5 kVA	6 kVA	8kVA
Operation phase	L/N/PE
Rated grid voltage	220V/230V
Rated grid frequency	50 Hz/60 Hz
Rated grid output current	13.7A/13.1A	16.4A/15.7A	22.8A/21.8A	27.3A/26.1A	36.4A/34.8A
Max.output current	13.7A/13.1A	16.4A/15.7A	22.8A/21.8A	27.3A/26.1A	36.4 A/34.8A
Power factor	>0.99(0.8 leading-0.8 lagging)
THDi	<2%
Input AC(Grid side)
Input voltage range	187-253V
Max.input current	21A	25A	32A	40A	50A
Frequency range	45-55Hz/55-65Hz
Output AC(Back-up)
Rated output power	3kW	3.6kW	5kW	6kW	8kW
Max.apparent output power	2times of rated power,10 s
Back-up switch time	<4ms
Rated output voltage	L/N/PE,220V/230V
Rated frequency	50Hz/60Hz
Rated output current	13.7A/13.1A	16.4A/15.7A	22.8A/21.8A	27.3A/26.1A	36.4 A/34.8 A
Max.AC passthrough current	35A	35A	40A	40A	50A
THDv(@linear load)	<2%
Input Generator
Max.input power	3kW	3.6 kW	5 kW	6 kW	8kW
Max.input current	13.7A/13.1A	16.4 A/15.7A	22.8 A/21.8A	27.3A/26.1A	36.4A/34.8A
Rated input frequency	50Hz/60Hz
Efficiency
Max.eficiency	96.2%
EU efficiency	96.1%
BAT charged by PV/AC max.efficiency	95.3%/93.9%
BAT discharged to AC max.eficiency	93.8%
Protection
Ground fault monitoring	Yes
DC reverse-polarity protection	Yes
Integrated AFCI 2.0	Optional
Protection class/Over voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
General Data
Dimensions(W×H×D)	335×560×253 mm
Weight	23kg			23.5kg
Topology	High frequency isolation (for battery)
Operating ambient temperature range	-40～+60℃
Ingress protection	IP66
Noise emission (typical)	<65 dB(A)
Cooling concept	Natural cooling			Intelligent fan-cooling
Max.operation altitude	3000 m
Grid connection standard	NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150, G98, CEI 0-21
Safety/EMC standard	IEC/EN62109-1/-2,EN 61000-6-2/-3
Features

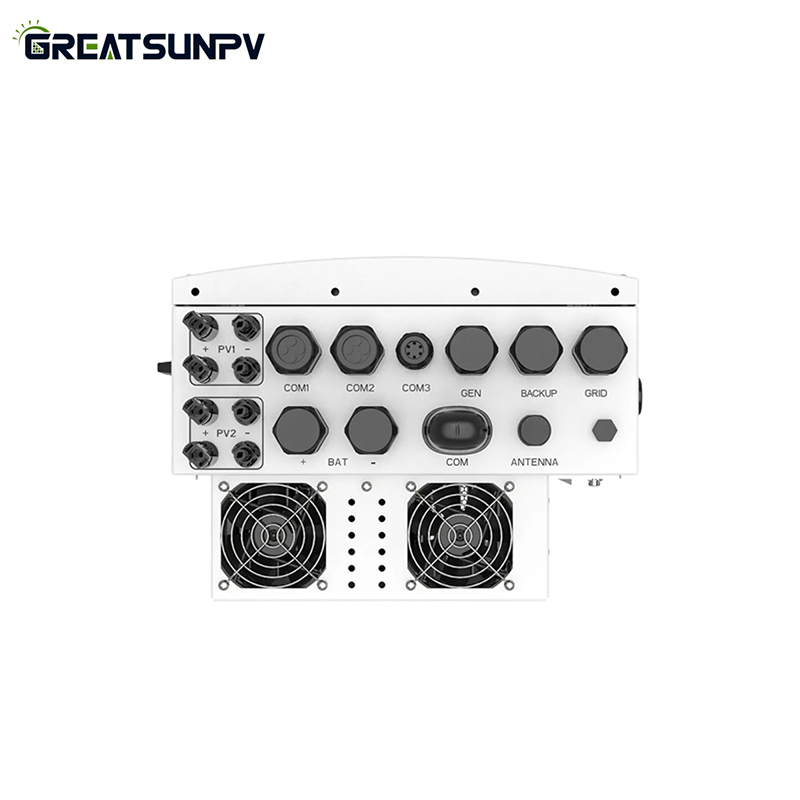

DC connection	MC4 plug(PV port)/Terminal Block(BAT port)
AC connection	Terminal Block
Display	7.0"LCD display & Bluetooth + APP
Communication	RS485,CAN,Optional:Wi-Fi,GPRS,LAN
