HV-102 Industrial 51.2V LiFePO4 Battery for Energy Storage System
102.4kWh industrial LiFePO₄ high-voltage battery with smart BMS, strong cooling, and scalable design for large energy-storage projects.
Brand Name:
GREATSUNPVNominal Battery Energy:
102.4KWHWarranty:
10yearsNominal Voltage:
512vBattery Capacity:
102.4KWHWeight(kg):
785Certification & Safety Standard:

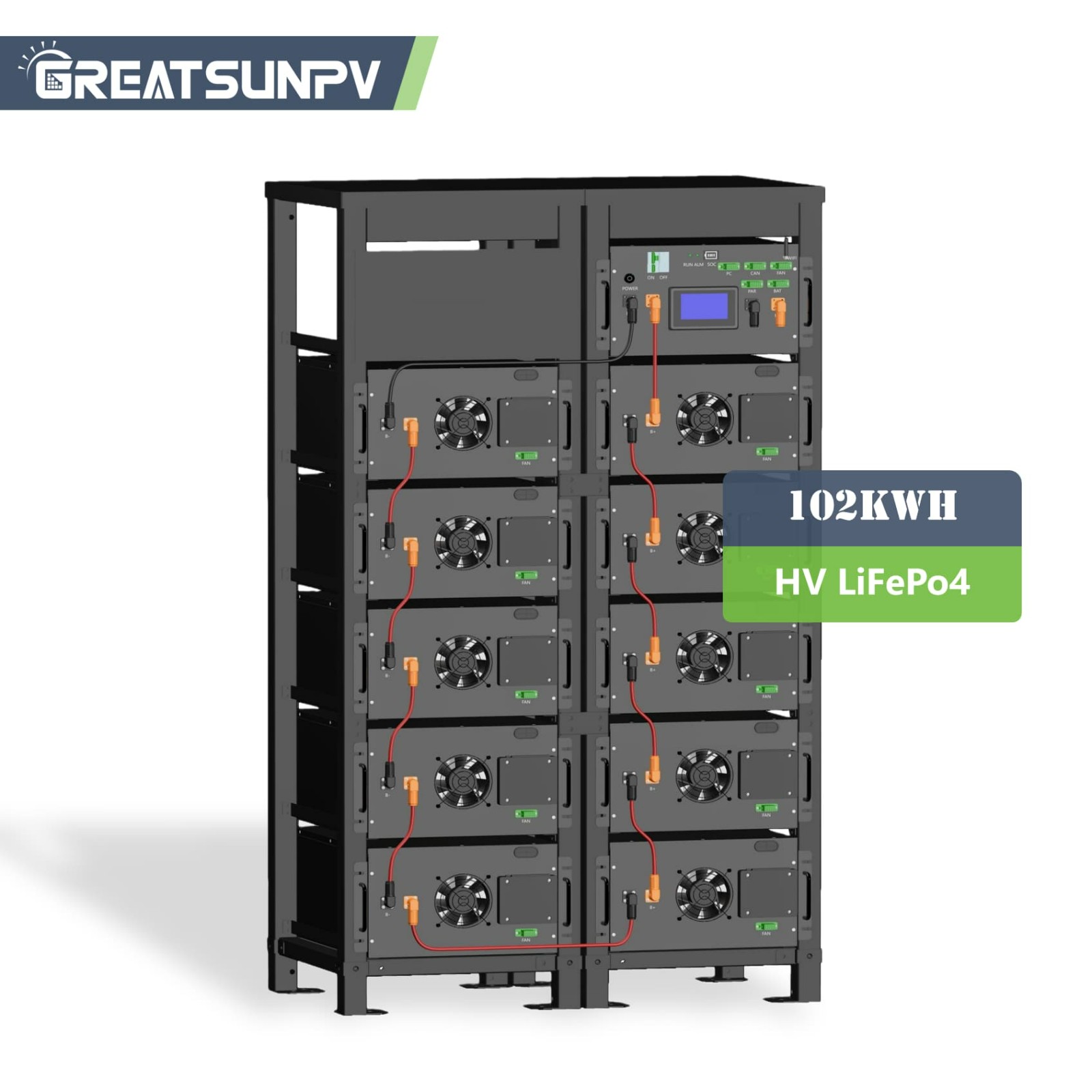

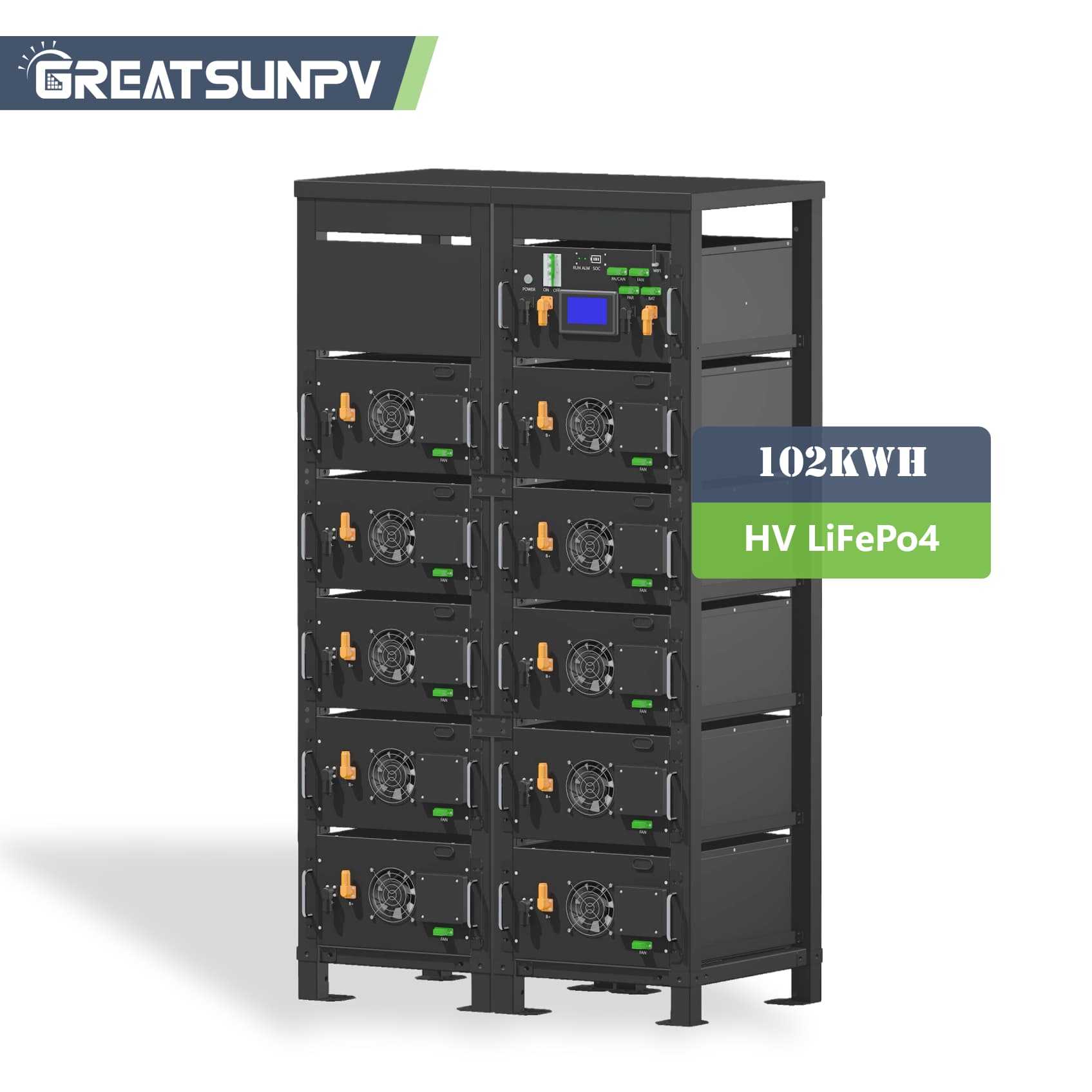

CE, UN38.3, MSDSThe HV-102 51.2V 200Ah High-Voltage LiFePO₄ Battery System is the flagship large-capacity model in the high-voltage series.
Delivering 102.4 kWh total system energy and 92.16 kWh usable energy, it is purpose-built for industrial facilities, utility energy storage, large microgrids, renewable energy plants, and critical backup systems.

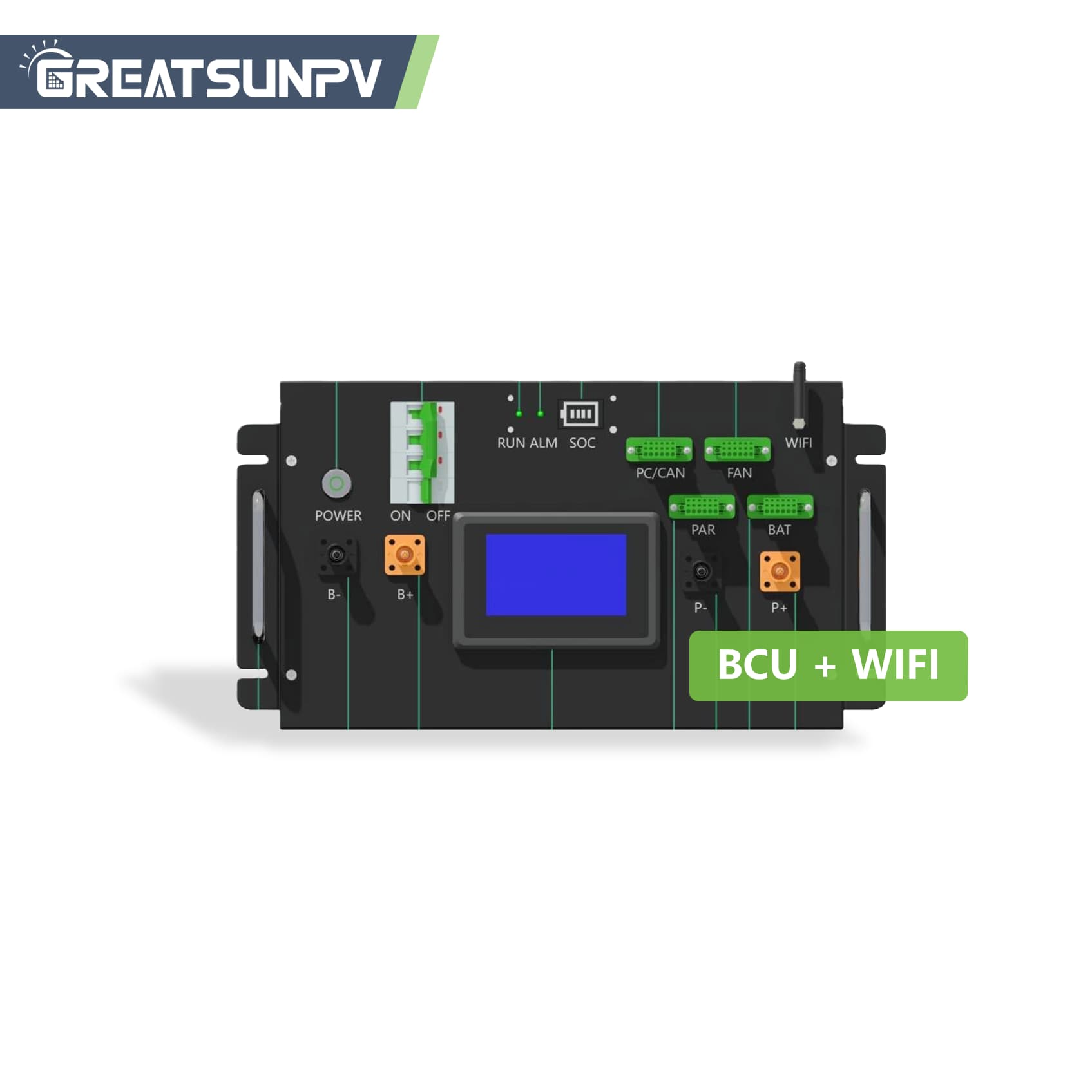

With a rugged 10-module high-voltage configuration, the HV-102 integrates a multi-layer intelligent BMS, supported by powerful fan-cooled thermal control and a robust monitoring platform with color display and WiFi.
Ultra-High Capacity for Industrial Loads
More than 100 kWh power storage for heavy-duty and long-duration applications.
Enhanced BMS with Multi-Level Protection
Provides comprehensive safety including over-voltage, fault isolation, thermal protection, and dynamic balancing.
High-Efficiency Cooling System
Designed for stable operation in demanding industrial environments.
IoT-Ready Monitoring
Remote monitoring, real-time alarms, and performance analytics.
Expandable to Multi-Module Arrays
Supports systems requiring hundreds of kWh or MWh-level storage.
Long Lifespan with Low Degradation
≥10,000 cycles for 10+ years of service in commercial ESS.
Product Advantages
High-voltage architecture for maximum efficiency and reduced system losses
Industrial-grade thermal design handles high-current discharge
Comprehensive digital safety management
Supports large-scale ESS integration
Extremely high usable energy for long-duration autonomy
Industrial energy-storage power plants
Utility grid peak-shaving and frequency regulation
Commercial solar-storage hybrid systems
Data centers and telecom infrastructure
Off-grid mining, oil & gas, and remote industrial operations
EV charging station buffering and load management
Specifications:
| Battery Module | HV-102( 102.4kwh ) | |
| Models | 51.2V200Ah HV | |
| Cell Chemistry | LiFePO4 | |
| Module Energy(kWh) |
10.24 |
|
| Module Nominal Voltage(V) | 51.2 | |
| Module Capacity(Ah) | 200 | |
| Battery Module Qty In Series(Optional) | 10 | |
| System Nominal Voltage(V) | 512 | |
| System Operating Voltage(V) | 464～576 | |
| System Energy(kWh) | 102.4 | |
| System Usable Energy(kWh) | 92.16 | |
| Rated DC Power (KW) | 102.4 | |
| Charge/Discharge Current(A) | Recommend | 50 |
| Max | 100 | |
| Peak Discharge (2mins,25℃) | 125 | |
| Working Temperature(℃) | -10～55℃ | |
| Cooling | Fan Cooling Power | |
| Communication Port | CAN/RS485 | |
| Humidity | 5%～95%RH | |
| Altitude | ≤2000m | |
| IP Rating of Enclosure | IP20 | |
| Weight Approximate ( kg ) | 785 | |
| Installation Location | Rack Mounting | |
| Storage Temperature(℃) | 0～35 | |
| Recommend Depth of Discharge | 90% | |
| Cycle Life | 25±2℃,0.5C/0.5C,EOL70%≥1000 | |
| Warranty³ | 5+5 years | |
| Certification | CE,UN38.3,MSDS | |
|
1.DC Usable Energy,test conditions:90%DOD,0.3C charge &discharge at 25℃.System usable energy may vary due to system configuration parameters. 2.The current is affected by temperature and SOC. 3.The warranty is due whichever reached first of warranty period or life cycle power. 4.Made in China. |
||
