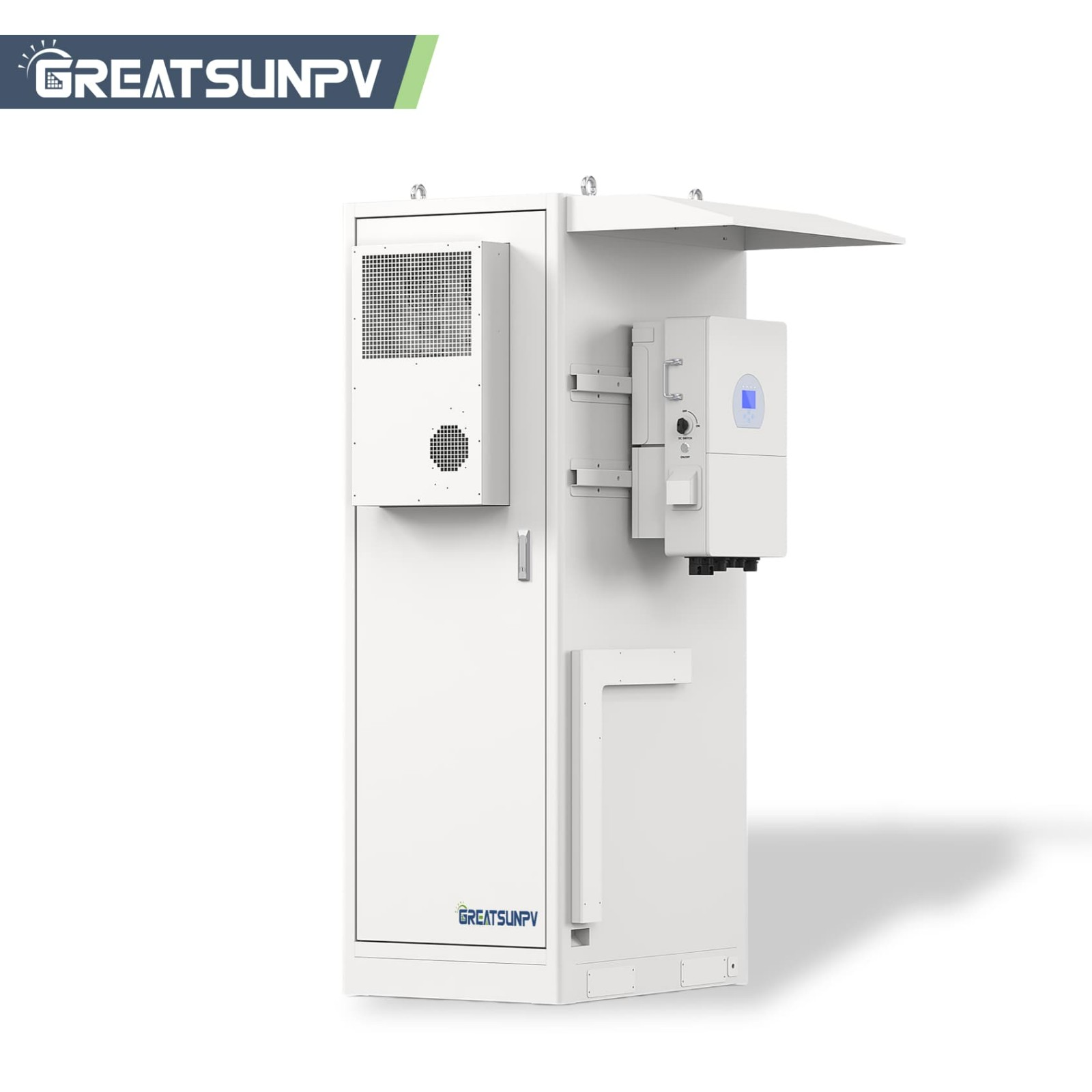

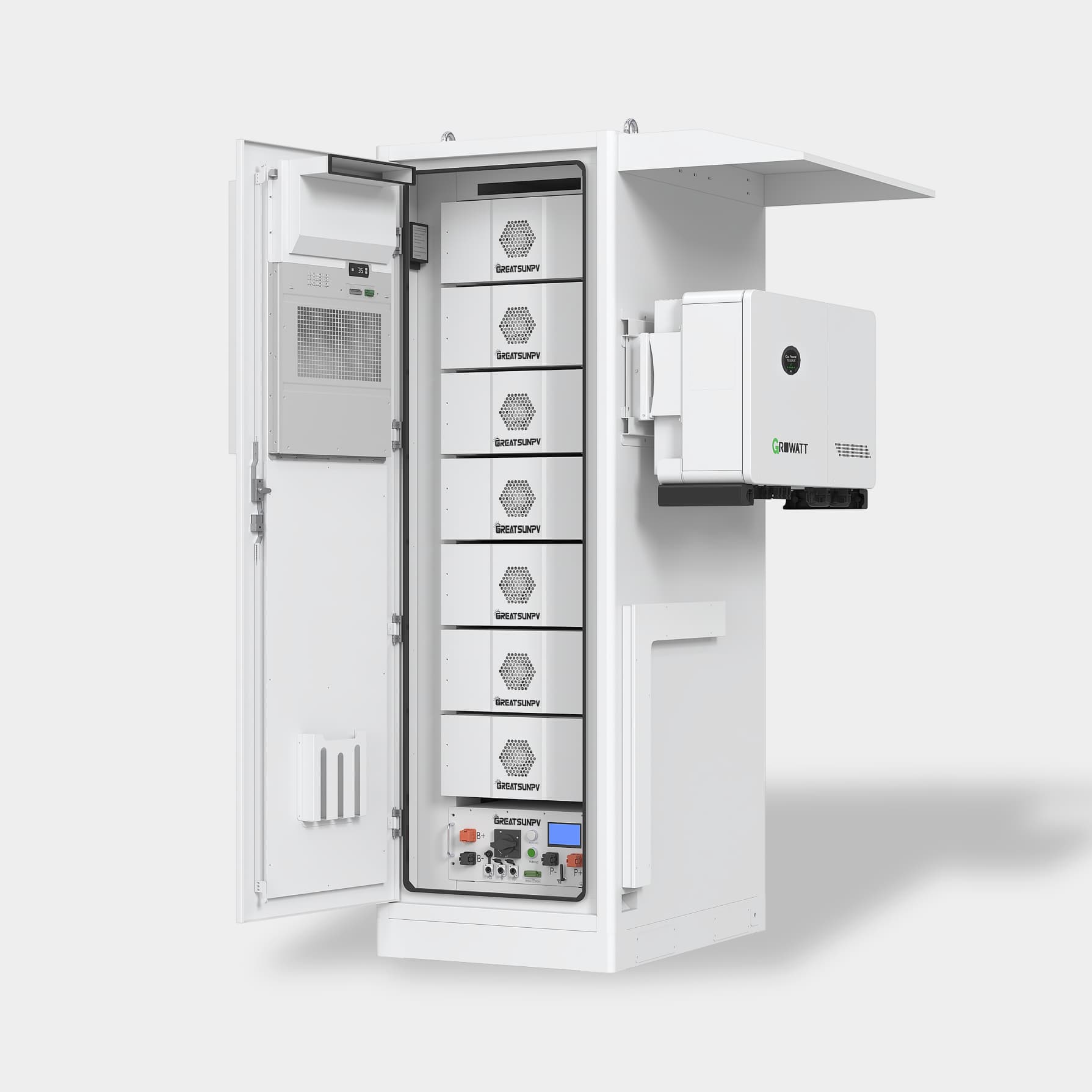

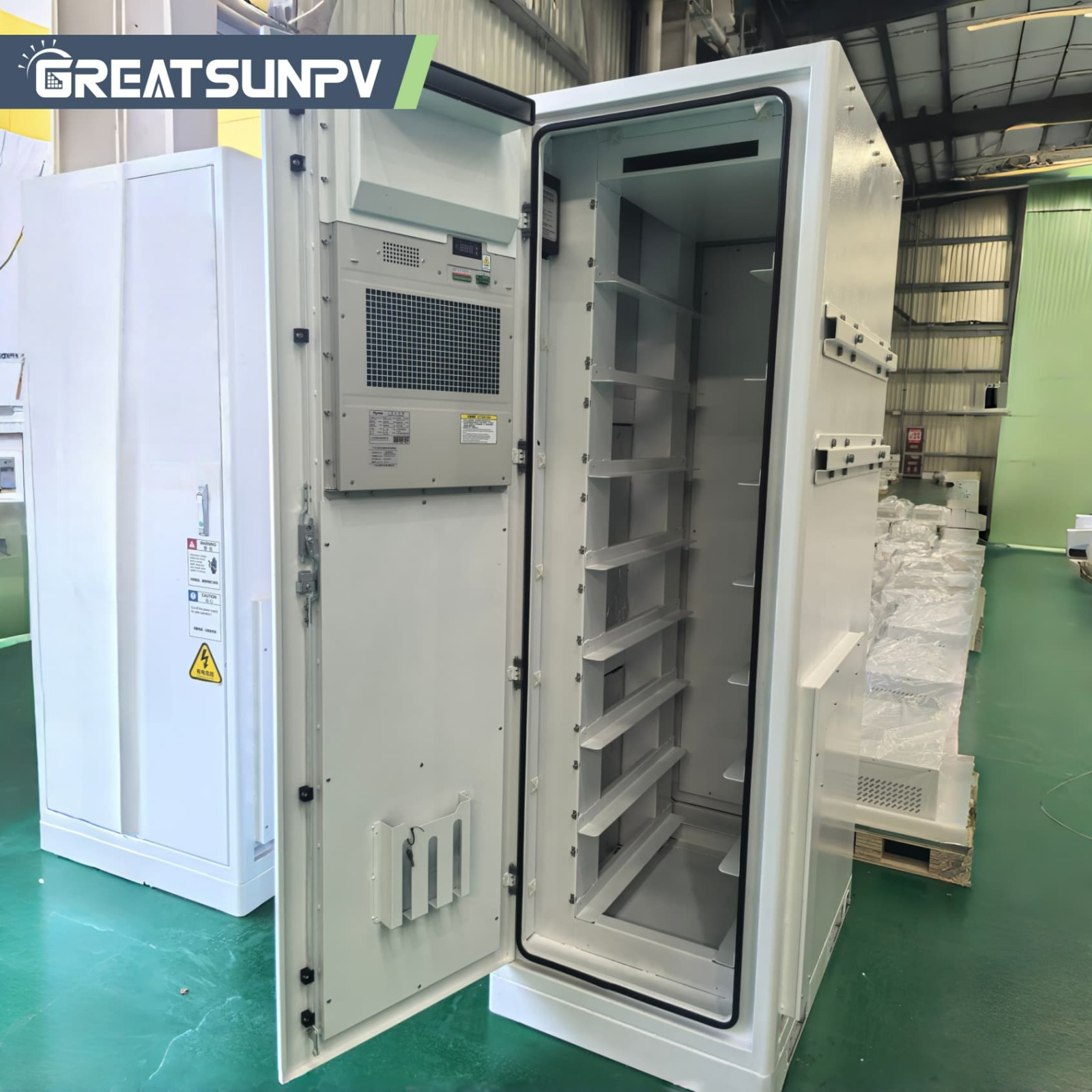

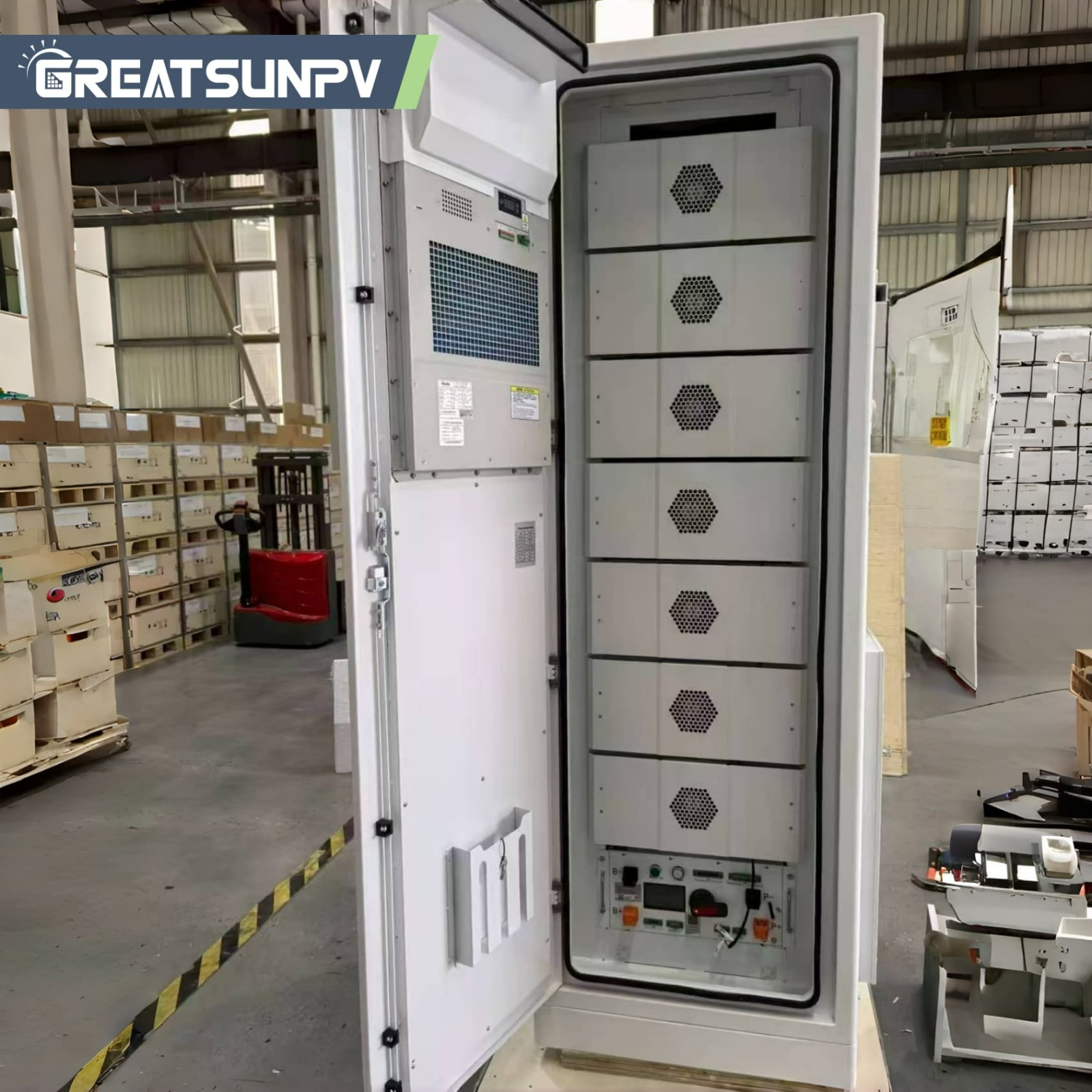

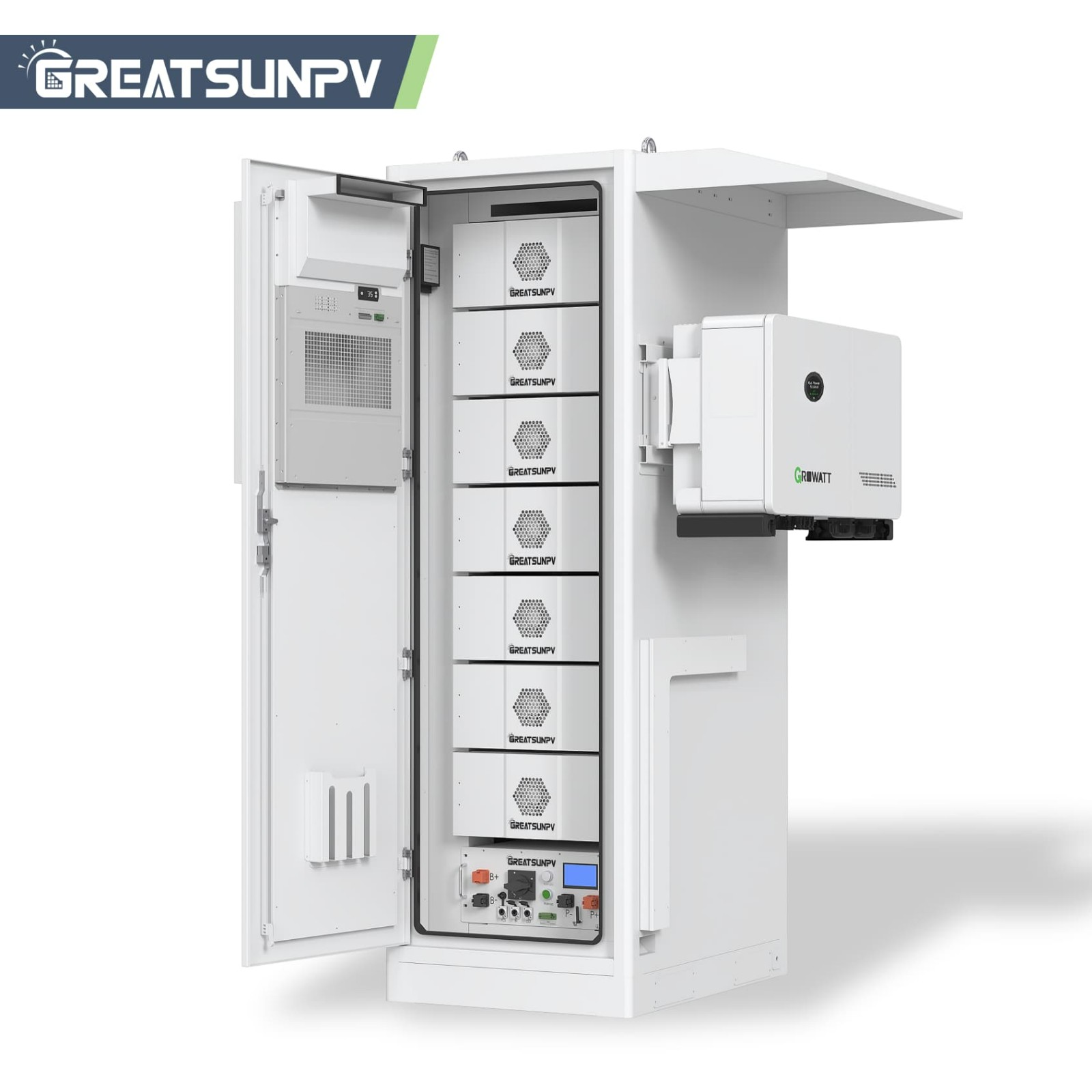

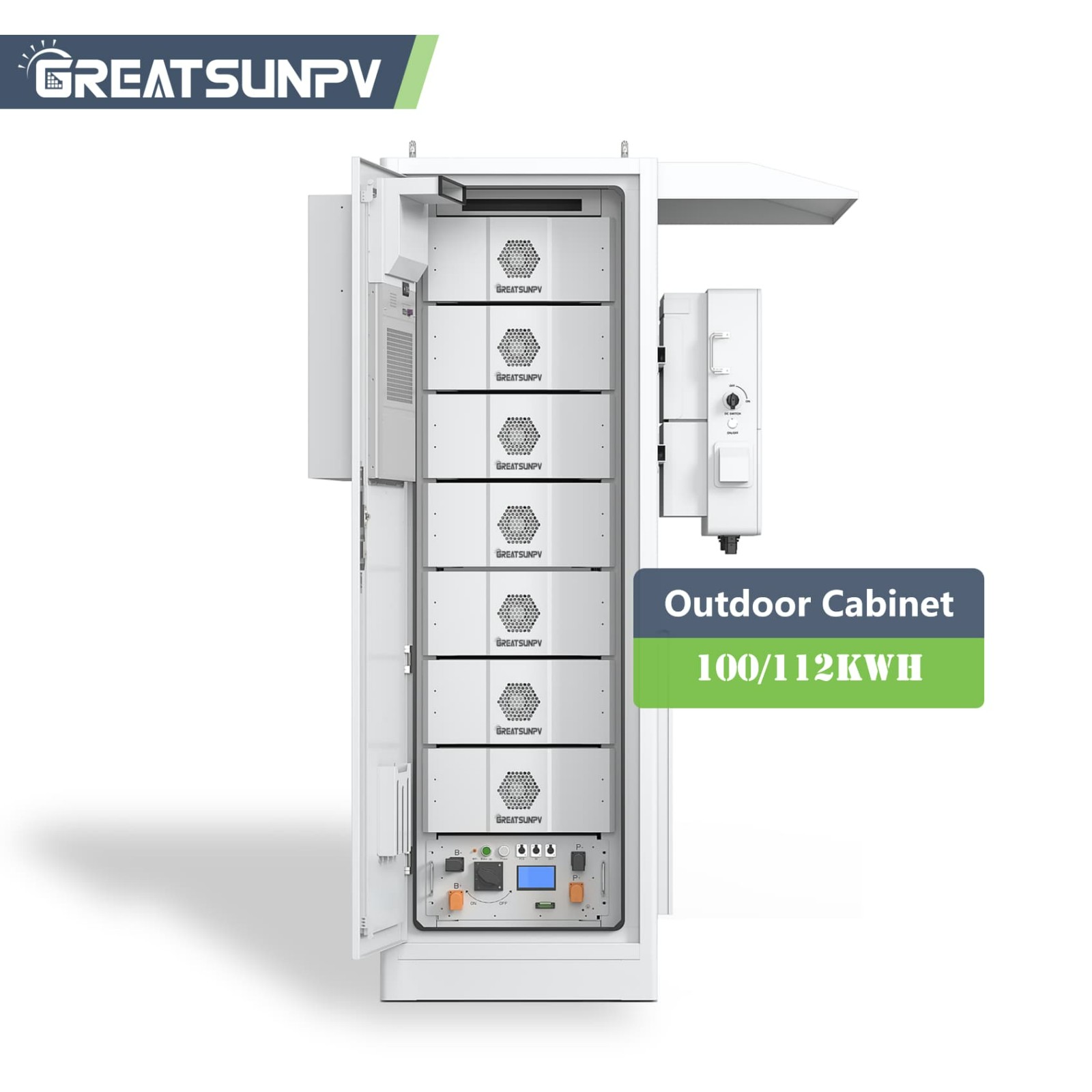

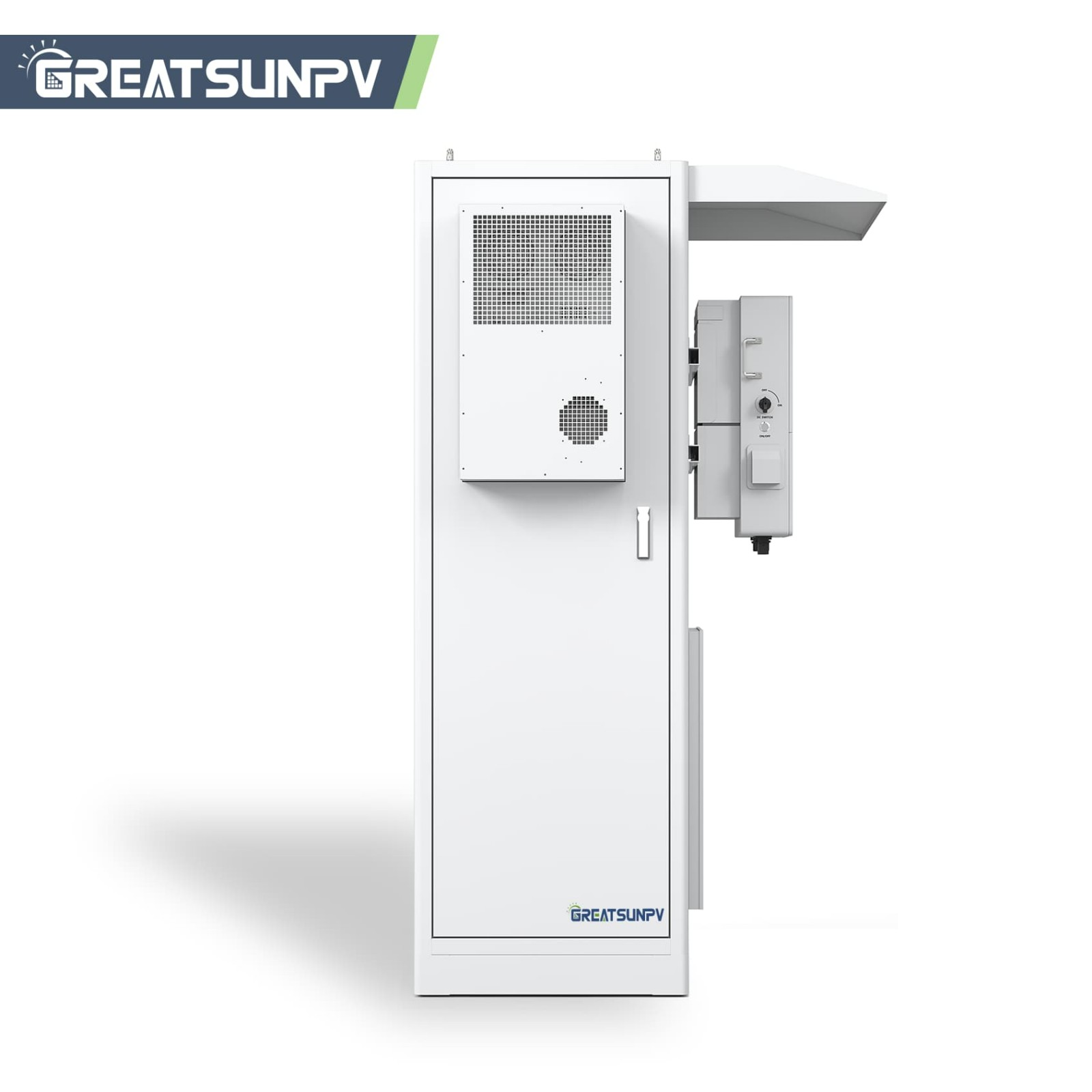

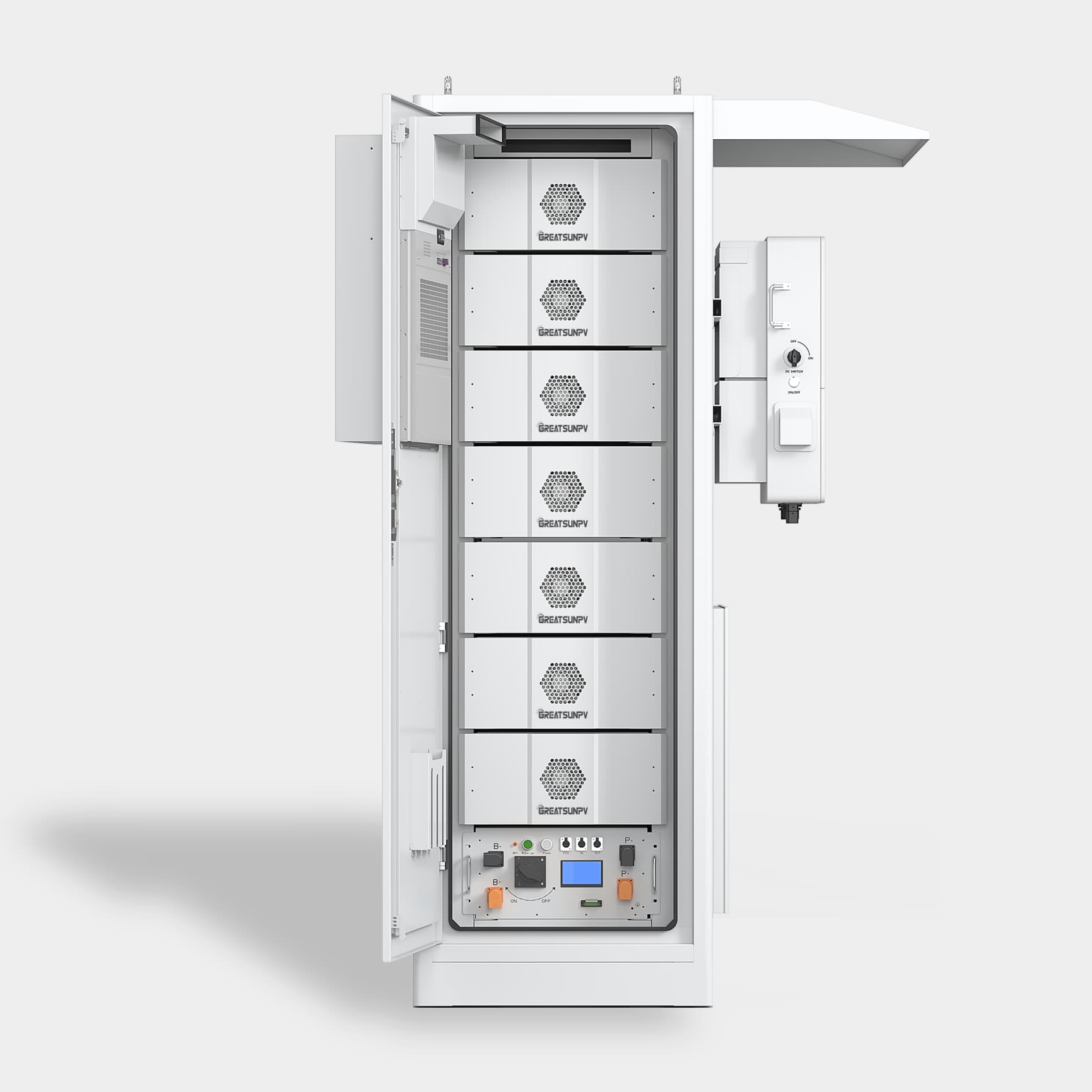

100KWH/112KWH Industrial & Commercial Energy Storage Cabinet

GREATSUNPV presents the GCB-E100, a compact yet powerful energy storage solution tailored for small to medium-sized commercial and industrial applications. Built with safe and durable LFP (LiFePO₄) battery cells, this cabinet integrates intelligent thermal management (cooling, ventilation, and heating) to operate reliably across a wide temperature range. Whether you need peak shaving, load shifting, backup power, or renewable self-consumption, the GCB‑E100 delivers outstanding performance with flexible capacity options.

Key Features

• • Customizable Energy Capacity:

  • Standard total energy from 100.35 kWh to 112.53 kWh, but we can tailor the capacity from 80 kWh up to 120 kWh per unit to match your exact load profile.

  •
  •

  • Long-Life LFP Cells:

  • Choose between 280Ah or 314Ah prismatic cells. Cycle life >6000 cycles (0.5C, 25°C, 90% DOD), ensuring more than 15 years of daily use.

  •
  •

  • All-in-One Thermal Management:

  • Air cooling system with built‑in refrigeration, ventilation, and electric heating. Operating range -20°C to 50°C (power derating above 45°C).



• High Protection & Safety:

• IP54 rated for indoor or outdoor installation. Integrated fire suppression system meets industrial safety standards.

•
•

• Easy Communication:

• Standard RS485 and CAN ports for seamless integration with local monitoring or cloud EMS.

•
•

• OEM Ready:

• Full OEM services including custom enclosure color, logo, nameplate, packaging, and even software UI. Build your own brand with GREATSUNPV.



Technical Specifications

Q&A：

Q1: Can the total energy of the GCB‑E100 be customized beyond the standard values?
A: Absolutely. GREATSUNPV offers flexible capacity from approximately 80 kWh to 120 kWh per cabinet by adjusting the number of modules or choosing different cell capacities (280Ah or 314Ah). Contact us with your required capacity, and we will provide a tailored solution.

Q2: Do you offer OEM services for the GCB‑E100?
A: Yes. We are an experienced OEM/ODM manufacturer. You can customize the cabinet color, your logo on the enclosure and nameplate, packaging design, and even the EMS interface. This allows you to market the product under your own brand effortlessly.

Q3: Does the cabinet work in cold climates?
A: Yes. The integrated heating system automatically activates when the temperature drops. The battery can charge safely from -20°C upward. No external heater is required.

Q4: How long does the GCB‑E100 last in real operation?
A: With >6000 cycles at 90% DOD, if you perform one full cycle per day, the cabinet will retain >60% of its initial capacity after 16+ years. For partial cycles, the service life extends even further.

Q5: Can I connect the GCB‑E100 with solar PV or a diesel generator?
A: Yes. The GCB‑E100 works with any three-phase AC source (380V, 50Hz). It can be integrated with PV inverters, wind turbines, or diesel generators using our energy management strategies.

Q6: Is installation complicated?
A: The unit comes pre-assembled from the factory. On-site work only requires AC cable connection, communication wiring, and grounding. One or two electricians can complete the installation within half a day. Remote monitoring eliminates the need for dedicated on-site operators.

Compactable Inverters：
