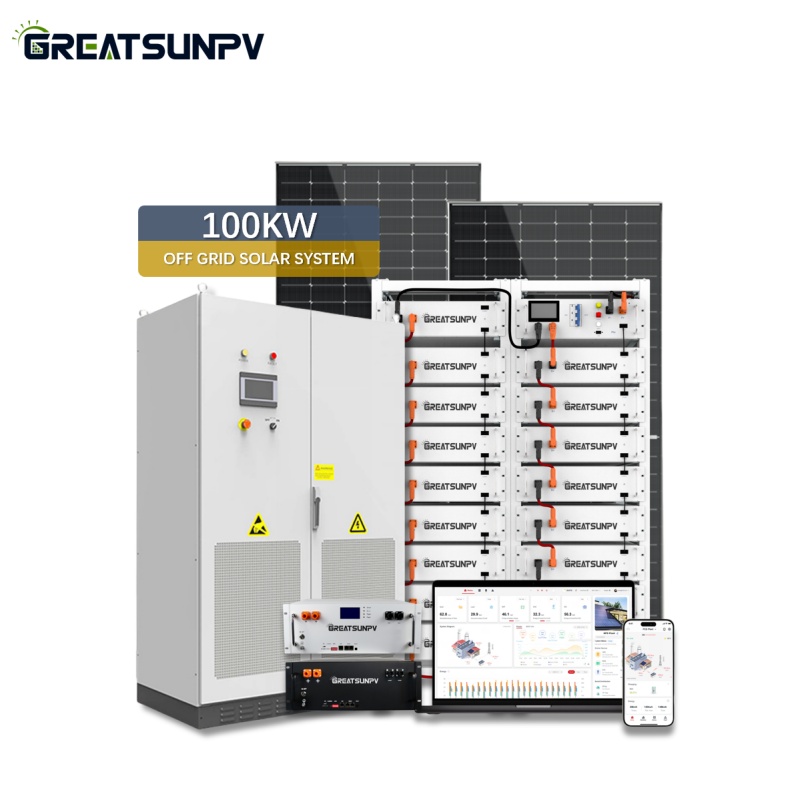

Free design 100KW 150KW 300KW 500KW Commercial Storage Solar System
GREATSUNPV 100KW-500kW hybrid storage system is ideal for commercial and industry use. They are usually working for factory and commericial building, in order to solve the electricity problems.
Brand Name:
GREATSUNPVSystem Power:
100KWSystem Type:
Hybrid/ Off GridApplicable Voltage:
EU/US VersionSolar Panel Type:
Mono-crystallineInstallation Type:
Roof/Ground/Water SurfaceCustomization:
AcceptablePre-sale Design:
AcceptableApplication:
Presidential and CommercialCertificate:
CE/MCS/TUV/VDE/UL/CSA/ETL/CECOEM:
Acceptable
System Components：

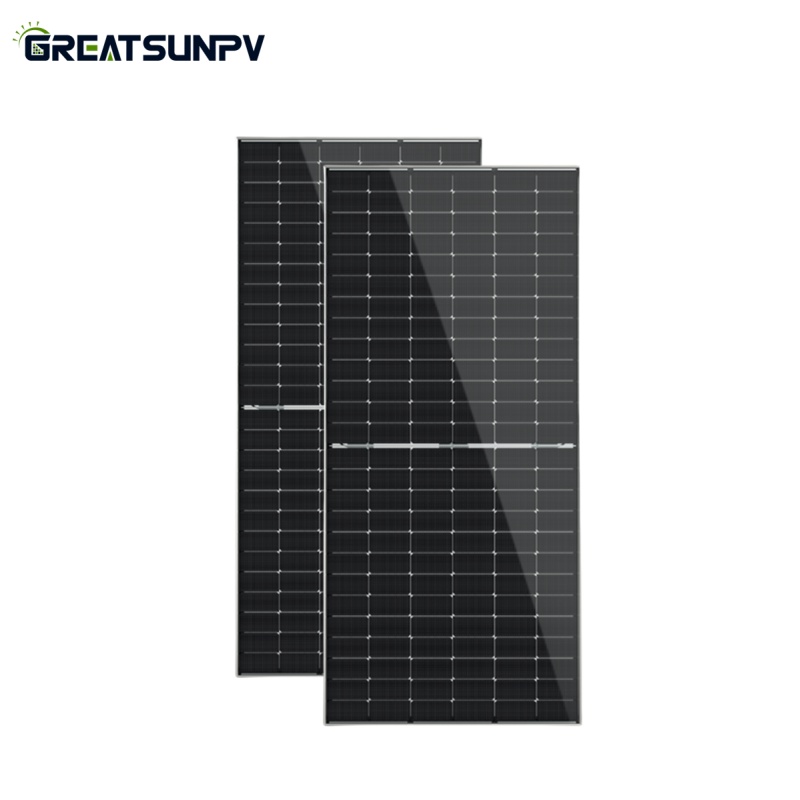

High Efficiency PV Module
* Max Power: 600W-750W
* Technology: TOPCon/HJT/Bifacial
* Low temperature coefficient
* Upto 24% Efficiency
* Low BOS cost & LCOE
* Warranty: 30 Years
* Full Certification

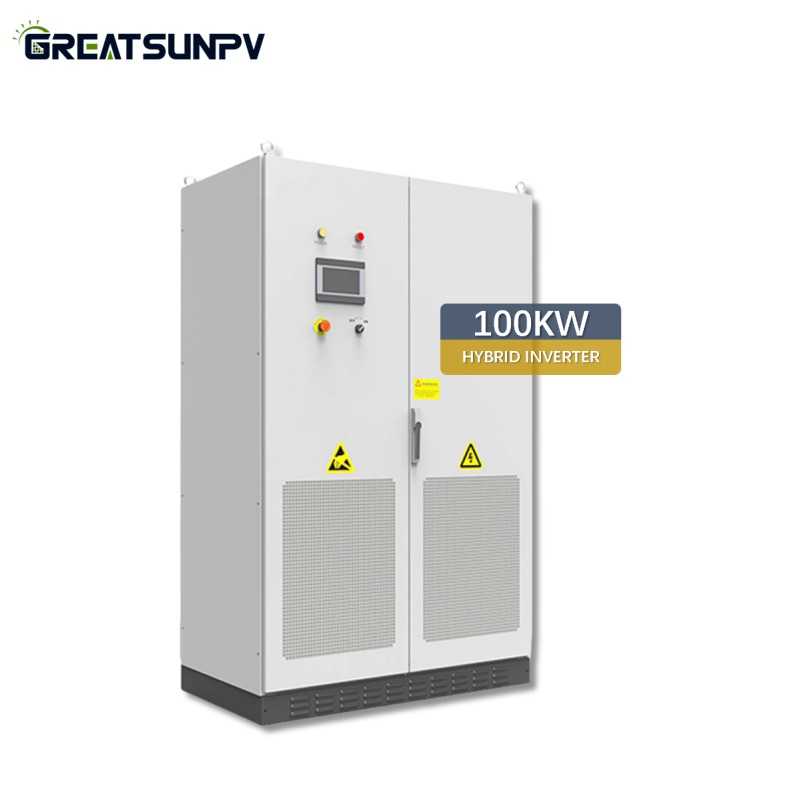

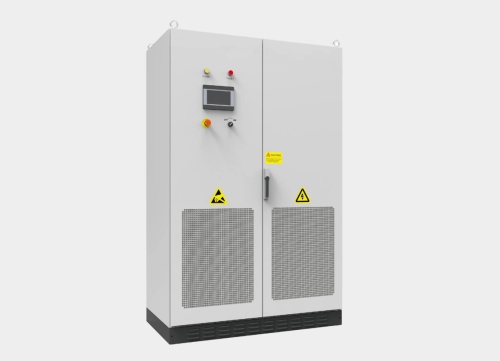

Commercial Hybrid Inverter
* Capactiy 100KW-500KW, three phase output for commercial & industrial use
* Dry contact output, support remote control of DG
* Off-grid transfer within 10ms, stable for power supplycharging/discharging
* Integrated with Isolation Transformer

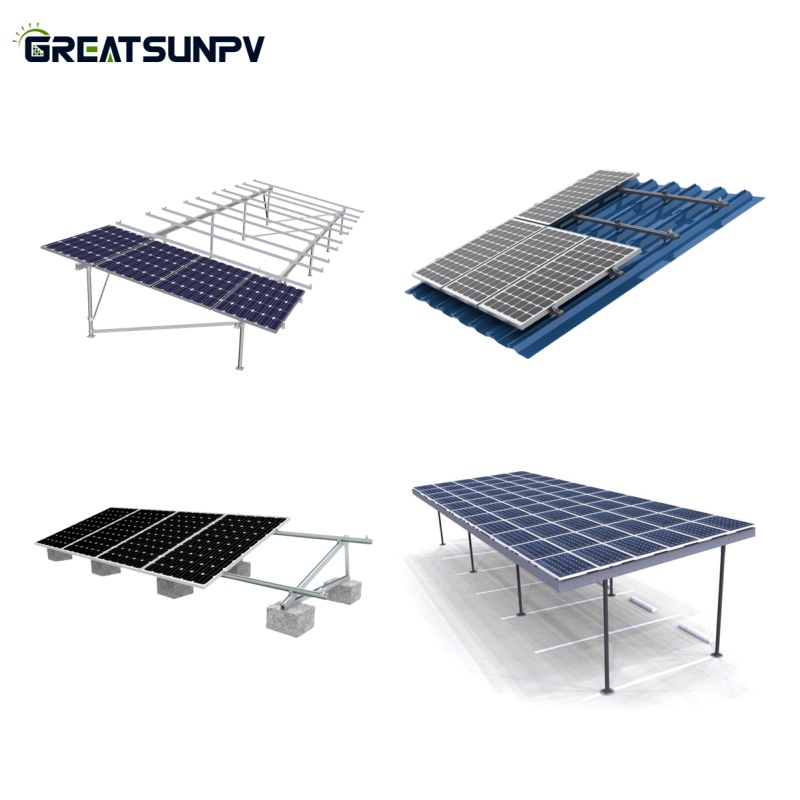

PV Mounting System
* Residential Roof(Pitched Roof)
* Commercial Roof(Flat roof&workshop roof)
* Ground Solar Mounting system
* Vertical wall solar mounting system
* All aluminum structure solar mounting system
* Car parking solar mounting system
Accessories：

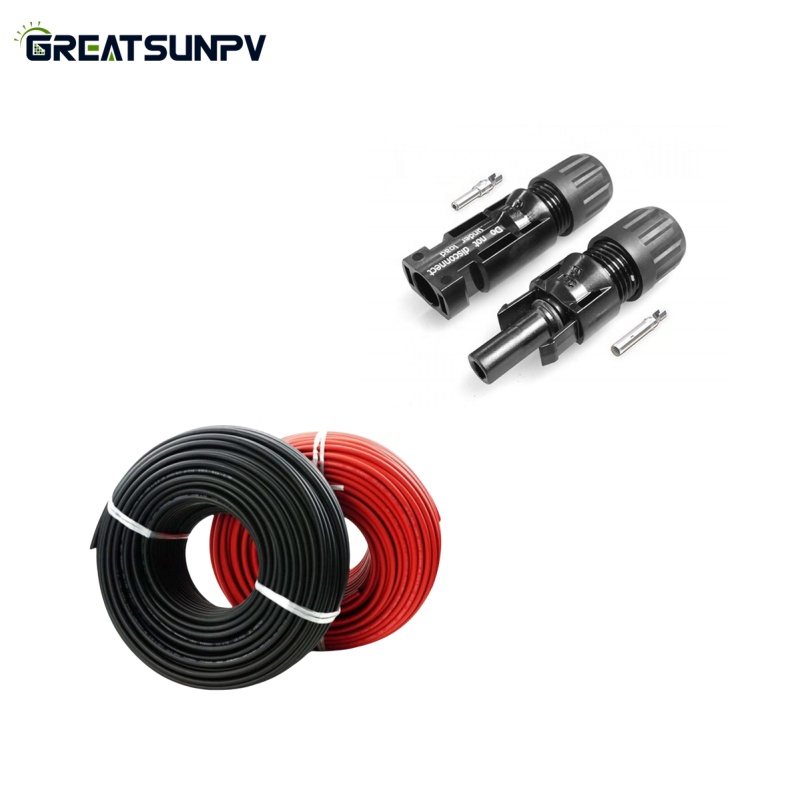

DC Cable & MC4 Connector
* Cross Section: 4mm2, 6mm2 Optional
* Rated Voltage:1000VDC/1500VDC
* Rated Current: 55A,70A
* Colors: Black For STD, Red Optional.
* Lifetime:30 Years
Installation Tools
* Solar Crimper
* Connector Wrench
PV Combiner Box
* Customized pv combiner box for solar panels connection
* Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
* IP65 Waterproof, applicable for outdoor PV systems

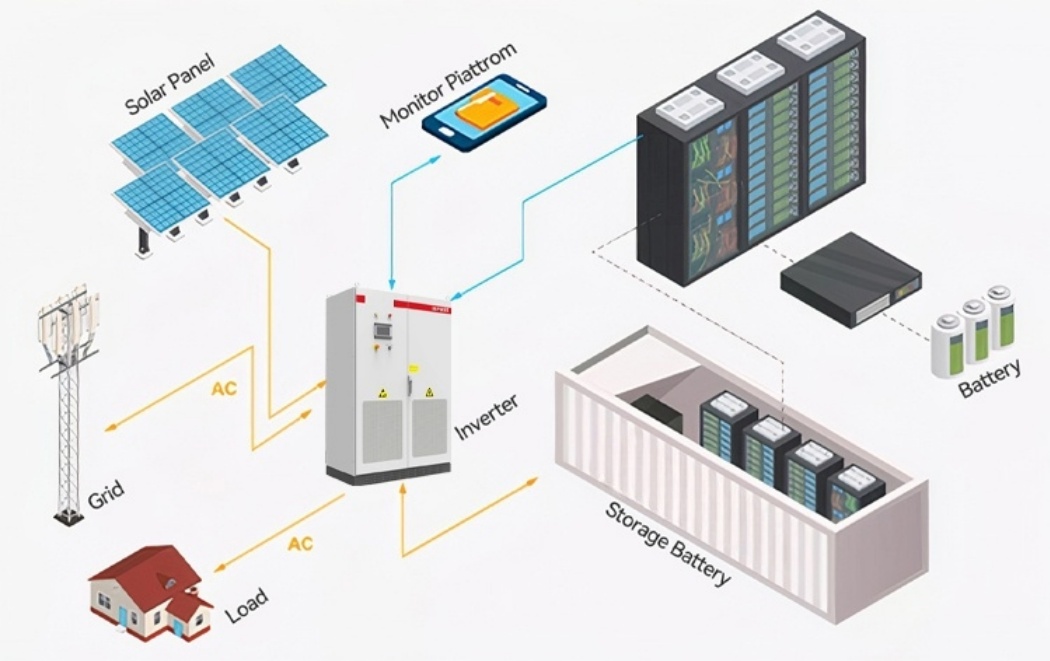

System Diagram:
System Configuration：
| Model | GSH-100KW | GSH-150KW | GSH-300KW | GSH-500KW | GSH-1000KW |
| Mono 600W Solar Panel | 180 Pieces | 250 Pieces | 540 Pieces | 840 Pieces | 1680 Pieces |
| PV Combiner Box | 1 Piece | 1 Piece | 2 Pieces | 10 Pieces | 20 Pieces |
| Hybrid Inverter | 1X100kW | 1X150kW | 2X150kW | 1X500kW | 1X1MW |

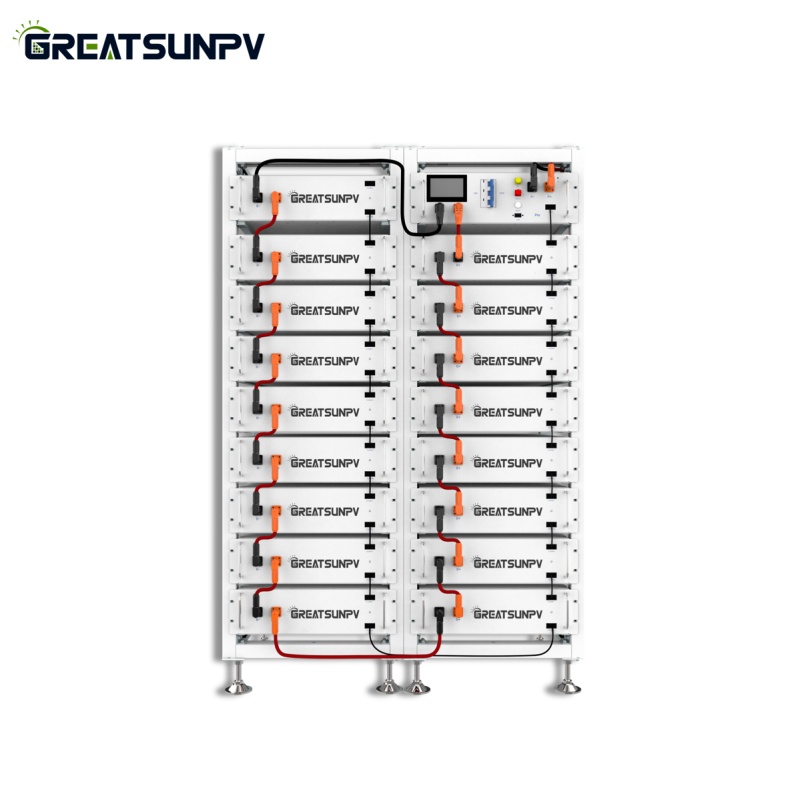

| Lithium Battery | 150kWh | 300kWh | 600kWh | 1MWh | 2MWh |
| DC Cable 4mm2 | 2000 Meter | 3000 Meter | 6000 Meter | 8000 Meter | 12000 Meter |
| MC4 Connector | 100 Pairs | 120 Pairs | 200 Pairs | 300 Pairs | 600 Pairs |
| Mounting System | Customized Based On Installation Roof/Ground | ||||
| PV Installation Tools | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |

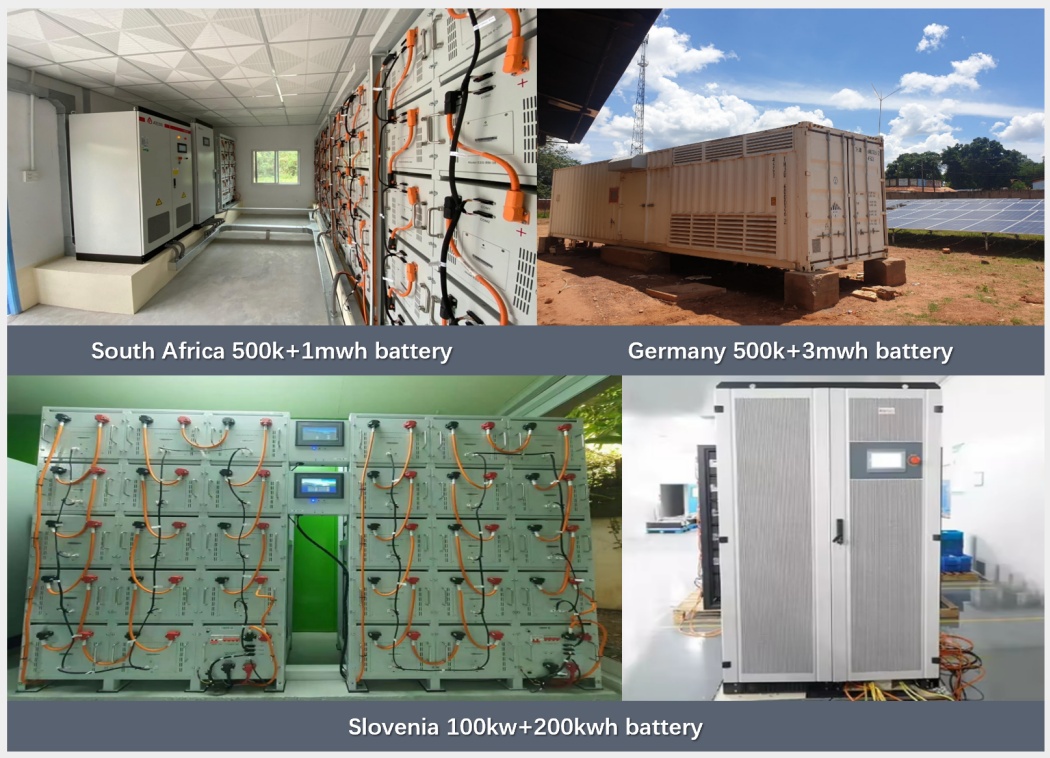

Project Cases:
Packing & Delivery:
