The GREATSUNPV 1MW off-grid solar plant is designed for utility-level operations, mining bases, data centers, and remote communities. It features 1680 panels, a 1MW hybrid inverter, and a 2MWh lithium battery.
Brand Name:
GREATSUNPVSystem Power:
1MWSystem Type:
Hybrid/ Off GridApplicable Voltage:
EU/US VersionSolar Panel Type:
Mono-crystallineInstallation Type:
Roof/Ground/Water SurfaceCustomization:
AcceptablePre-sale Design:
AcceptableApplication:
Commercial and industrial projectsCertificate:
CE/MCS/TUV/VDE/UL/CSA/ETL/CECOEM:
AcceptableThe HSS-1000kW system is GREATSUNPV's flagship utility-scale off-grid energy package. With 1MW solar generation and 2MWh high-capacity storage, it can power large facilities or serve as the backbone of remote micro-grids.
System components:

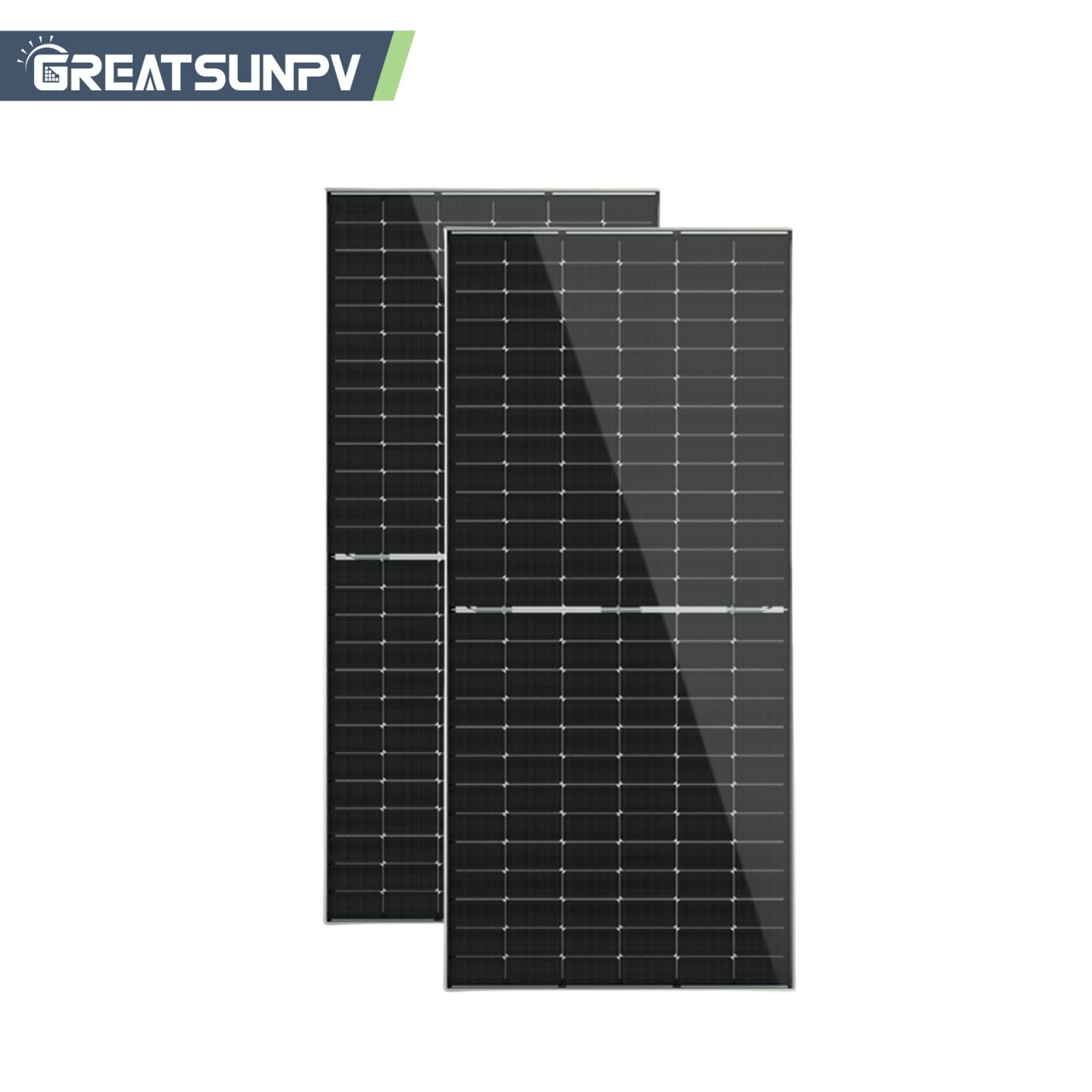

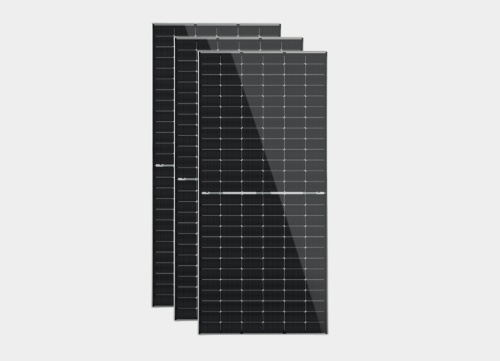

High Efficiency PV Module
* Max Power: 600W-750W
* Technology: TOPCon/HJT/Bifacial
* Low temperature coefficient
* Upto 24% Efficiency
* Low BOS cost & LCOE
* Warranty: 30 Years
* Full Certification

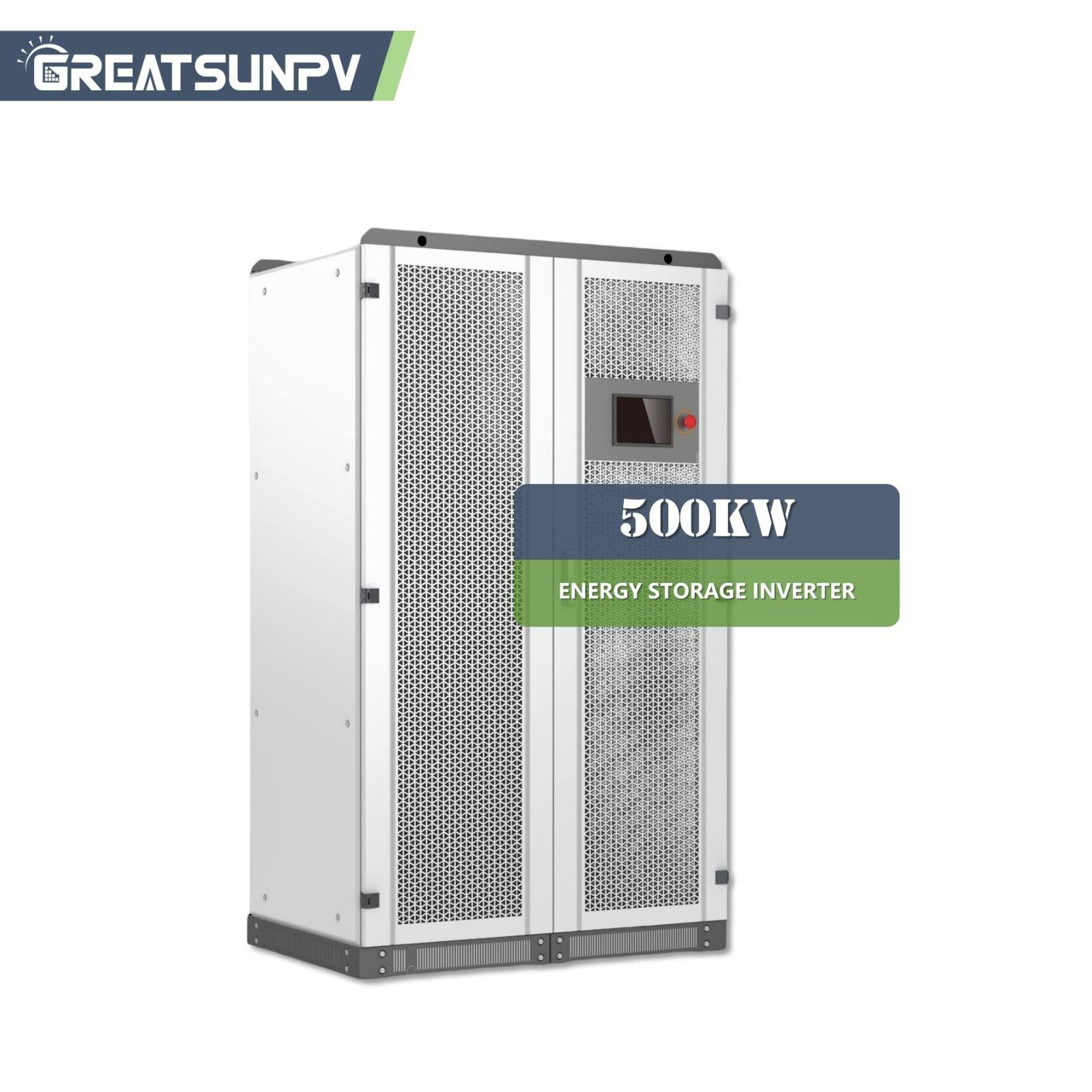

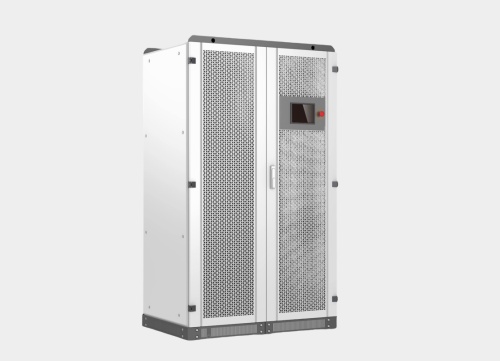

Commercial Hybrid Inverter
* Capactiy 100KW-500KW, three phase output for commercial & industrial use
* Dry contact output, support remote control of DG
* Off-grid transfer within 10ms, stable for power supplycharging/discharging
* Integrated with Isolation Transformer

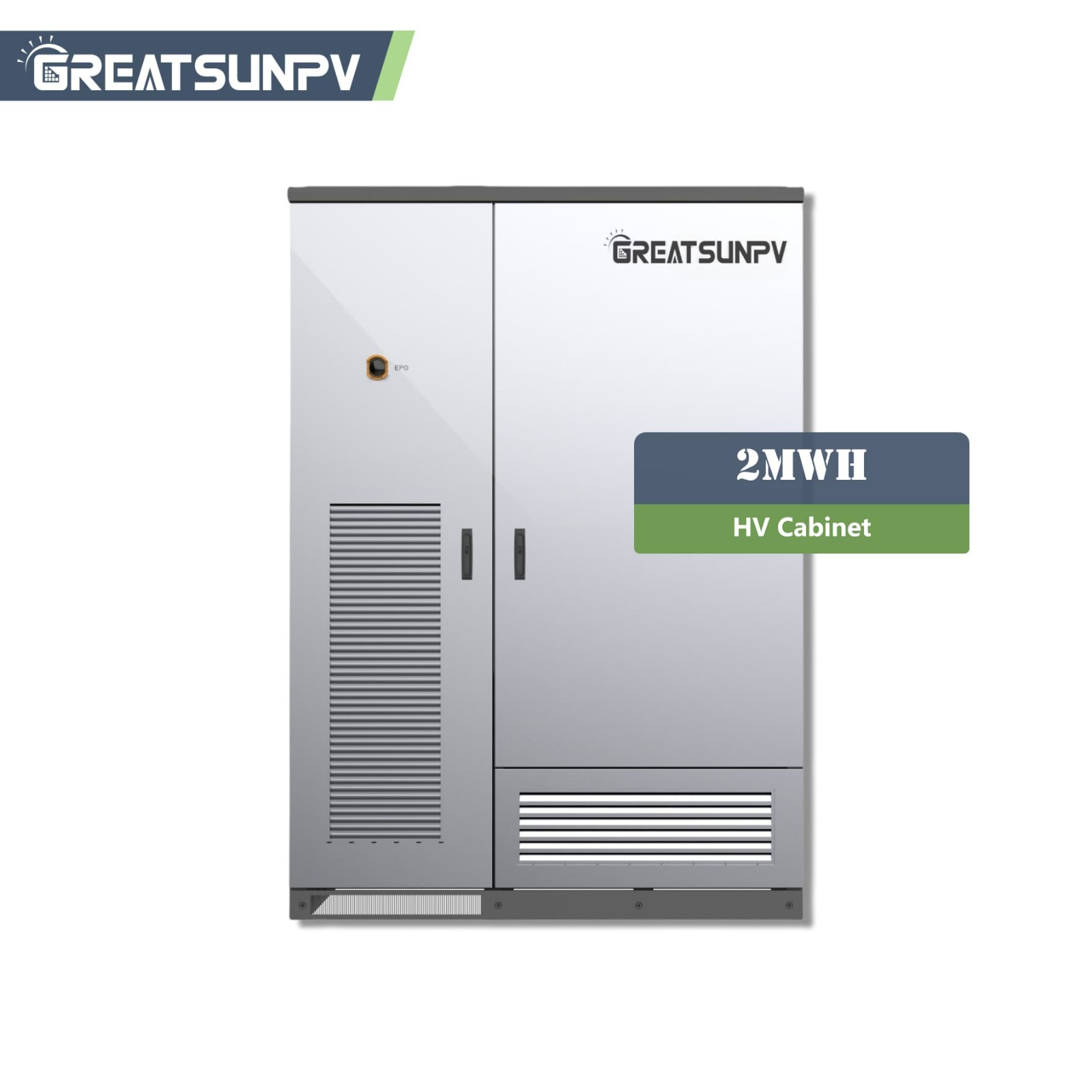

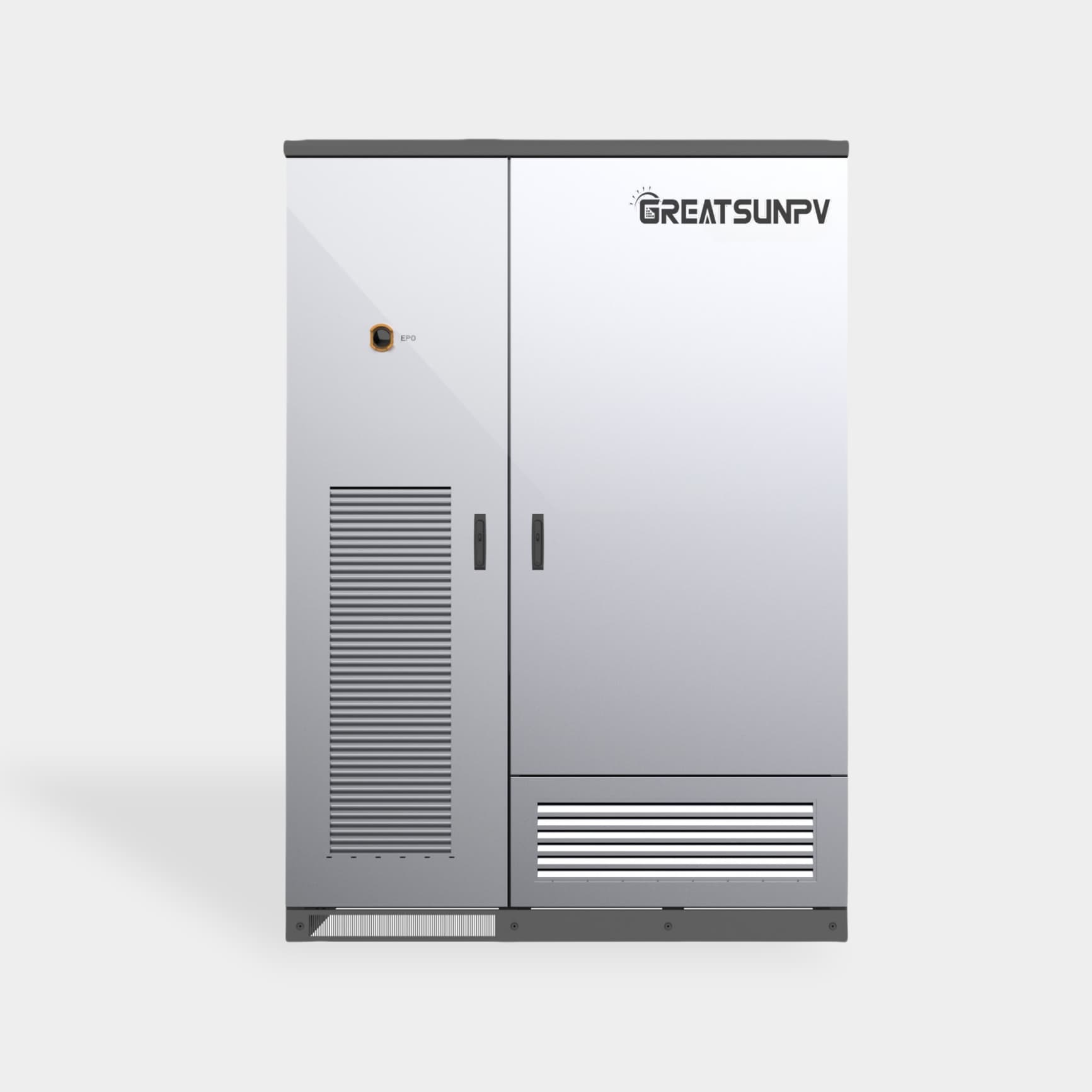

High-performance outdoor LiFePO₄ energy storage cabinet
* Compact Outdoor Cabinet Structure:
Space-saving layout and robust IP65 enclosure
* High-Safety LiFePO₄ Chemistry
Long cycle life ≥6000 cycles
* Intelligent Multi-Layer BMS
BCU + BMU secondary BMS architecture provides real-time monitoring
* Advanced Cooling System
Integrated air-conditioning temperature control,operating conditions from -20°C to 60°C
* Flexible System Configuration
Optional module configurations: 6/7/8/9/10/11 modules
* Installer-Friendly Integrated Design
Supports parallel expansion up to 10 sets

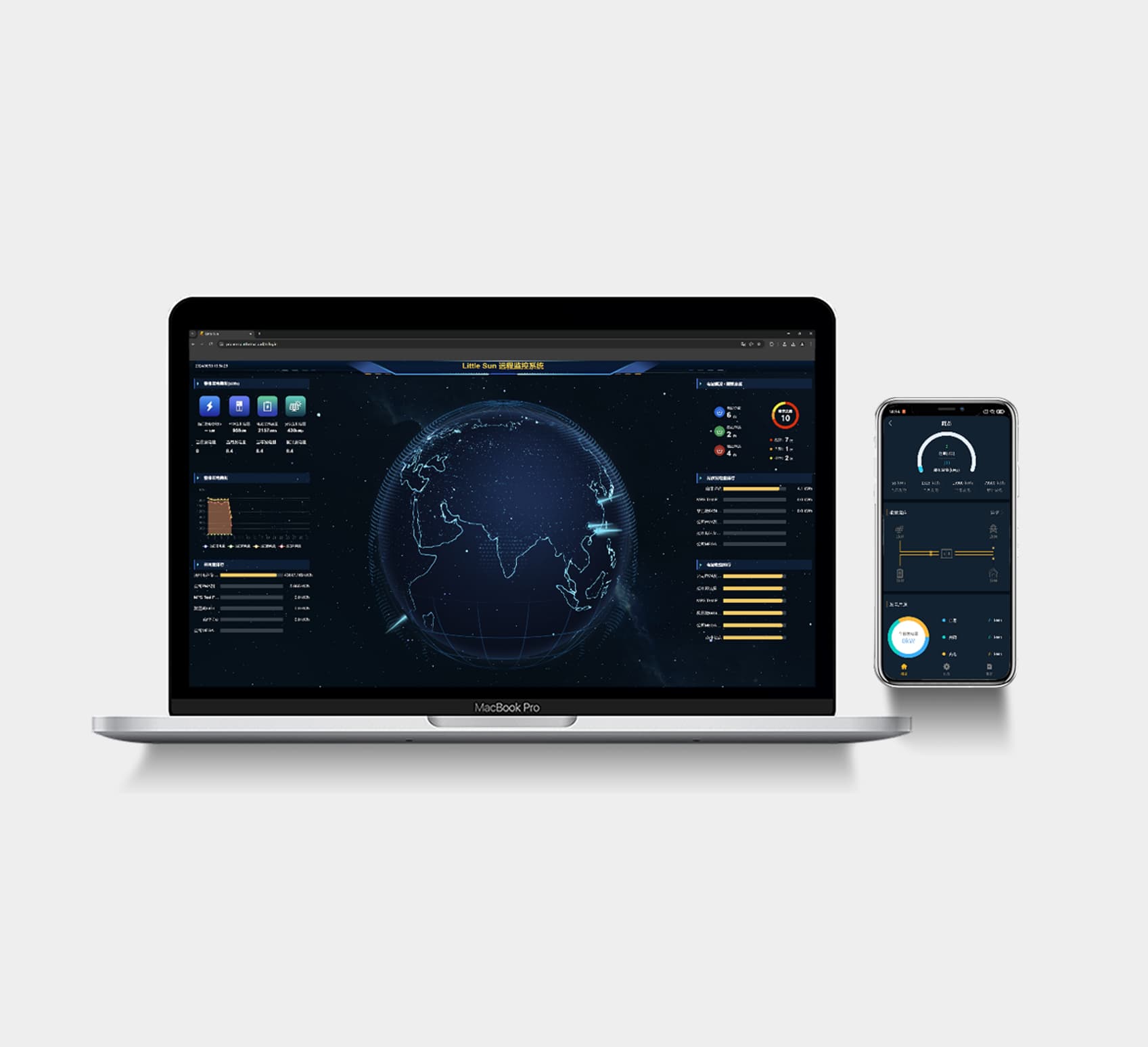

Online Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

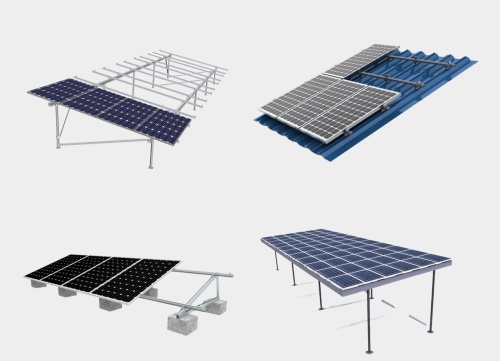

PV Mounting System
* Residential Roof(Pitched Roof)
* Commercial Roof(Flat roof&workshop roof)
* Ground Solar Mounting system
* Vertical wall solar mounting system
* All aluminum structure solar mounting system
* Car parking solar mounting system

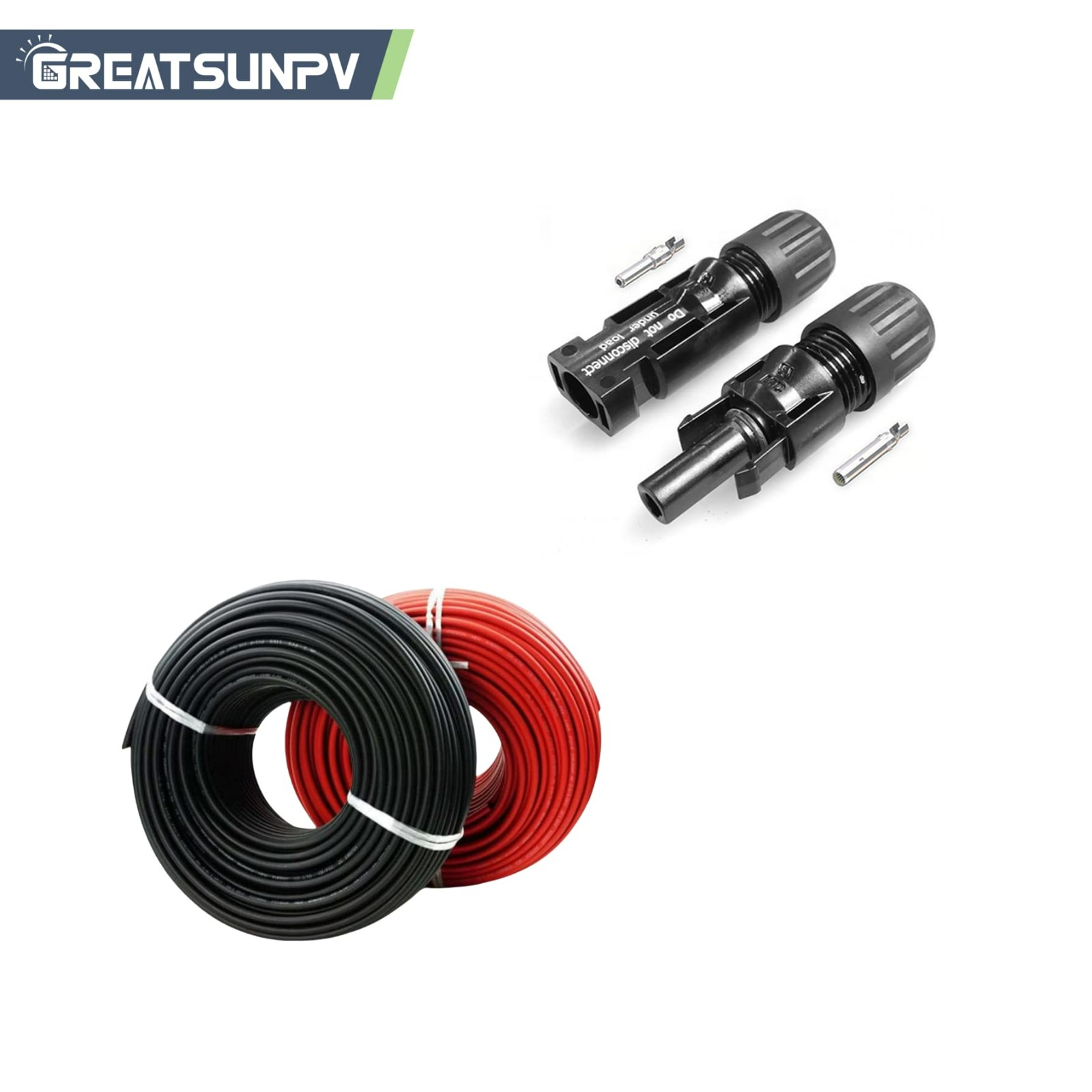

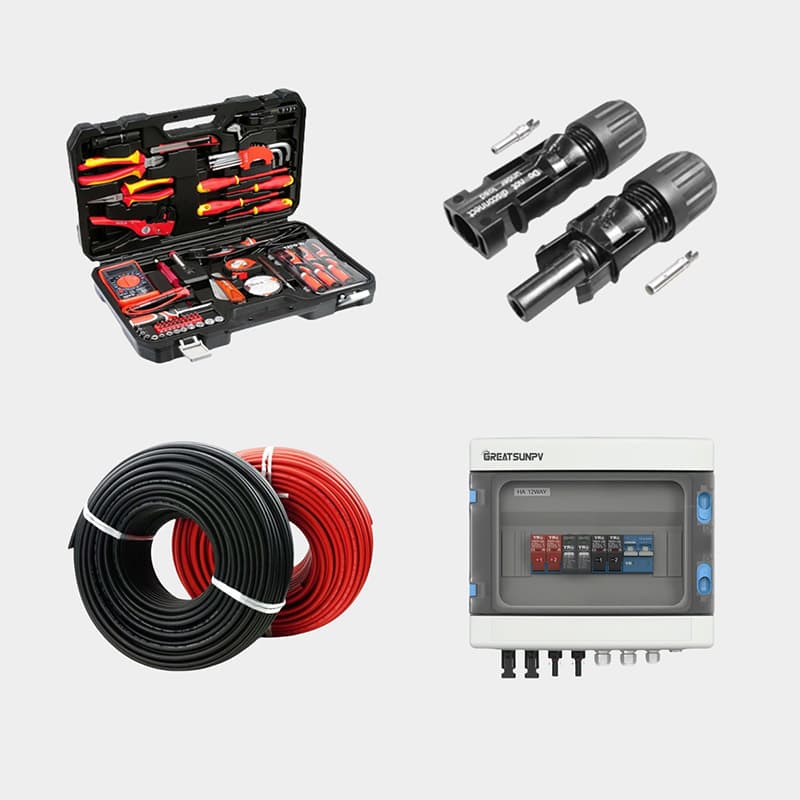

DC Cable & MC4 Connector
* Cross Section: 4mm2, 6mm2 Optional
* Rated Voltage:1000VDC/1500VDC
* Rated Current: 55A,70A
* Colors: Black For STD, Red Optional.
Installation Tools
* Whole set tools of Installing solar system, Crimping pv connector with cable.
* Solar Crimper Connector Wrench
PV Combiner Box
* Customized pv combiner box for solar panels connection
* Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
* IP65 Waterproof, applicable for outdoor PV systems
System Configuration：
| Model | HSS-100KW | HSS-150KW | HSS-300KW | HSS-500KW | HSS-1000KW |
| Mono 600W Solar Panel | 180 Pieces | 250 Pieces | 540 Pieces | 840 Pieces | 1680 PCS |
| PV Combiner Box | 1 Piece | 1 Piece | 2 Pieces | 10 Pieces | 20 PCS |
| Hybrid Inverter | 1X100kW | 1X150kW | 2X150kW | 1X500kW | 1X1MW |
| Lithium Battery | 150kWh | 300kWh | 600kWh | 1MWh | 2MWh |
| DC Cable 4mm2 | 2000 Meter | 3000 Meter | 6000 Meter | 8000 Meter | 12000 Meter |
| MC4 Connector | 100 Pairs | 120 Pairs | 200 Pairs | 300 Pairs | 600 Pairs |
| Mounting System | Customized Based On Installation Roof/Ground | ||||
| PV Installation Tools | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |

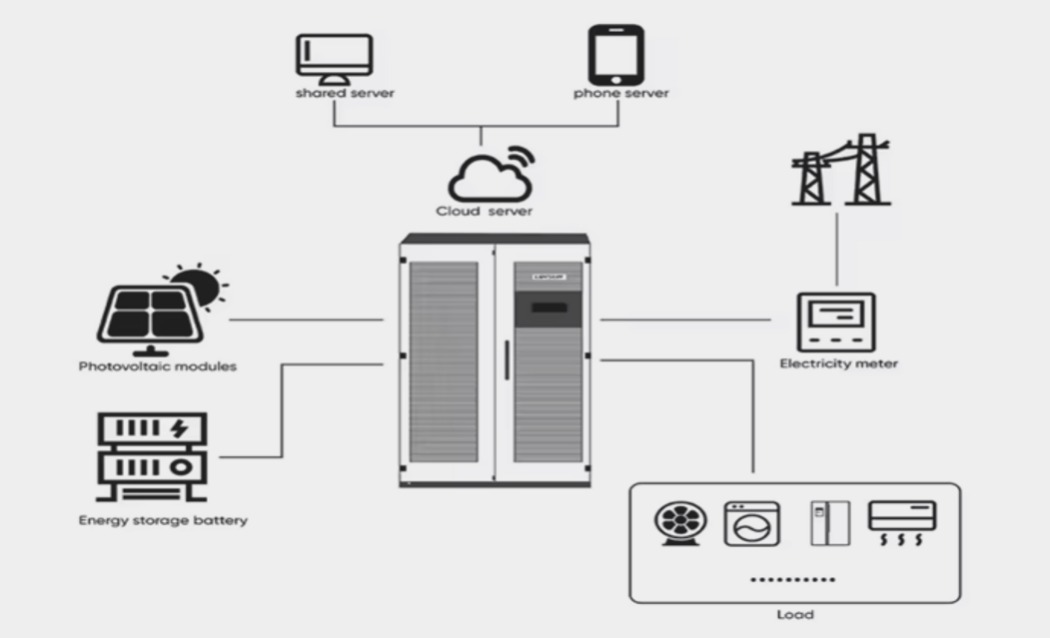

System Diagram:
Ideal for
Remote micro-grid power stations
Large industrial operations
Mining and oilfield camps
Data centers & telecom backbone nodes
Utility EPC projects
Packing & Delivery:
