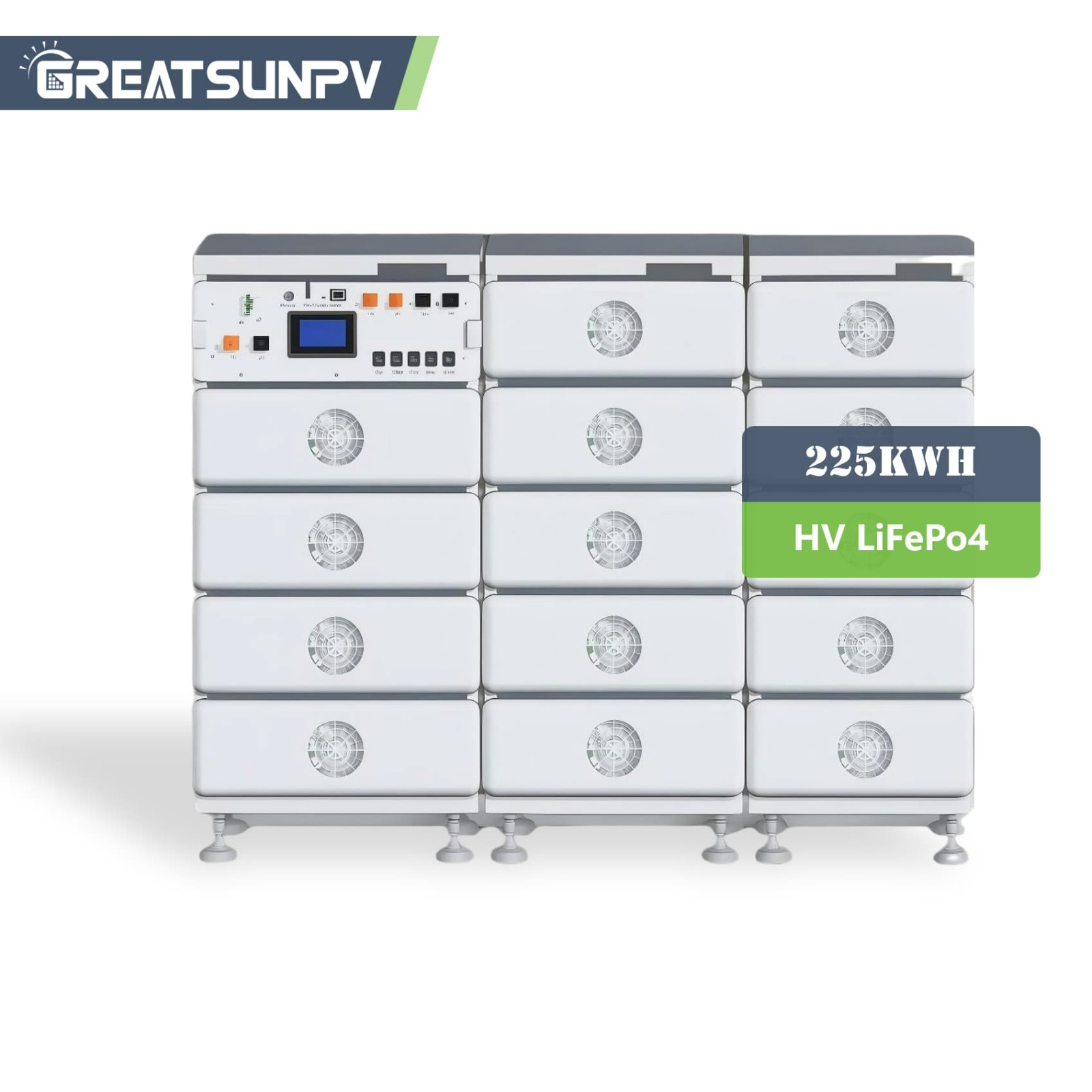

51.2V 225KWH High Capacity LFP Battery for Commercial Energy Storage
A high-power LiFePO₄ battery system engineered for industrial facilities, factories, and data centers.The HV-225 offers 225.08 kWh of energy with a 314 Ah capacity, supporting heavy loads with continuous stability.Its integrated BMS, fan cooling structure, and 10,000+ cycle life ensure outstanding safety, performance, and reliability under demanding conditions.
Brand Name:
GREATSUNPVNominal Battery Energy:
225KWHWarranty:
10yearsNominal Voltage:
716.8Battery Capacity:
225KWHWeight(kg):
1808Certification & Safety Standard:
CE,UN38.3,MSDSThe HV-225 delivers industrial-grade reliability and capacity, purpose-built for factories, data centers, and critical infrastructure.
It combines a robust rack-mount structure, a high-efficiency BMS, and multi-fan cooling to maintain excellent performance in demanding conditions.
Key Features:
Industrial-Grade Safety: Multiple protection layers and fast disconnection switch.
High Capacity: 225 kWh total energy for continuous large-load operation.
Advanced BMS Management: Real-time diagnostics and protection against overcharge/discharge.
Remote Connectivity: Wi-Fi and CAN/RS485 communication for SCADA or cloud integration.
Customizable Design: Supports specific voltage, communication protocol, and cabinet configurations.
Specifications:
| Battery Module | HV-225(225.08kwh ) | |
| Models | 51.2V314Ah HV | |
| Cell Chemistry | LiFePO4 | |
| Module Energy(kWh) |
16.08 |
|
| Module Nominal Voltage(V) | 51.2 | |
| Module Capacity(Ah) | 314 | |
| Battery Module Qty In Series(Optional) | 14 | |
| System Nominal Voltage(V) | 716.8 | |
| System Operating Voltage(V) | 649.6～806.4 | |
| System Energy(kWh) | 225.08 | |
| System Usable Energy(kWh) | 202.57 | |
| Rated DC Power (KW) | 225.08 | |
| Charge/Discharge Current(A) | Recommend | 160 |
| Max | 200 | |
| Peak Discharge (2mins,25℃) | 125 | |
| Working Temperature(℃) | -10～55℃ | |
| Cooling | Fan Cooling Power | |
| Communication Port | CAN/RS485 | |
| Humidity | 5%～95%RH | |
| Altitude | ≤2000m | |
| IP Rating of Enclosure | IP20 | |
| Weight Approximate ( kg ) | 1808 | |
| Installation Location | Rack Mounting | |
| Storage Temperature(℃) | 0～35 | |
| Recommend Depth of Discharge | 90% | |
| Cycle Life | 25±2℃,0.5C/0.5C,EOL70%≥1000 | |
| Warranty³ | 5+5 years | |
| Certification | CE,UN38.3,MSDS | |
|
1.DC Usable Energy,test conditions:90%DOD,0.3C charge &discharge at 25℃.System usable energy may vary due to system configuration parameters. 2.The current is affected by temperature and SOC. 3.The warranty is due whichever reached first of warranty period or life cycle power. 4.Made in China. |
||
Compatibale inverters:
Applications:
