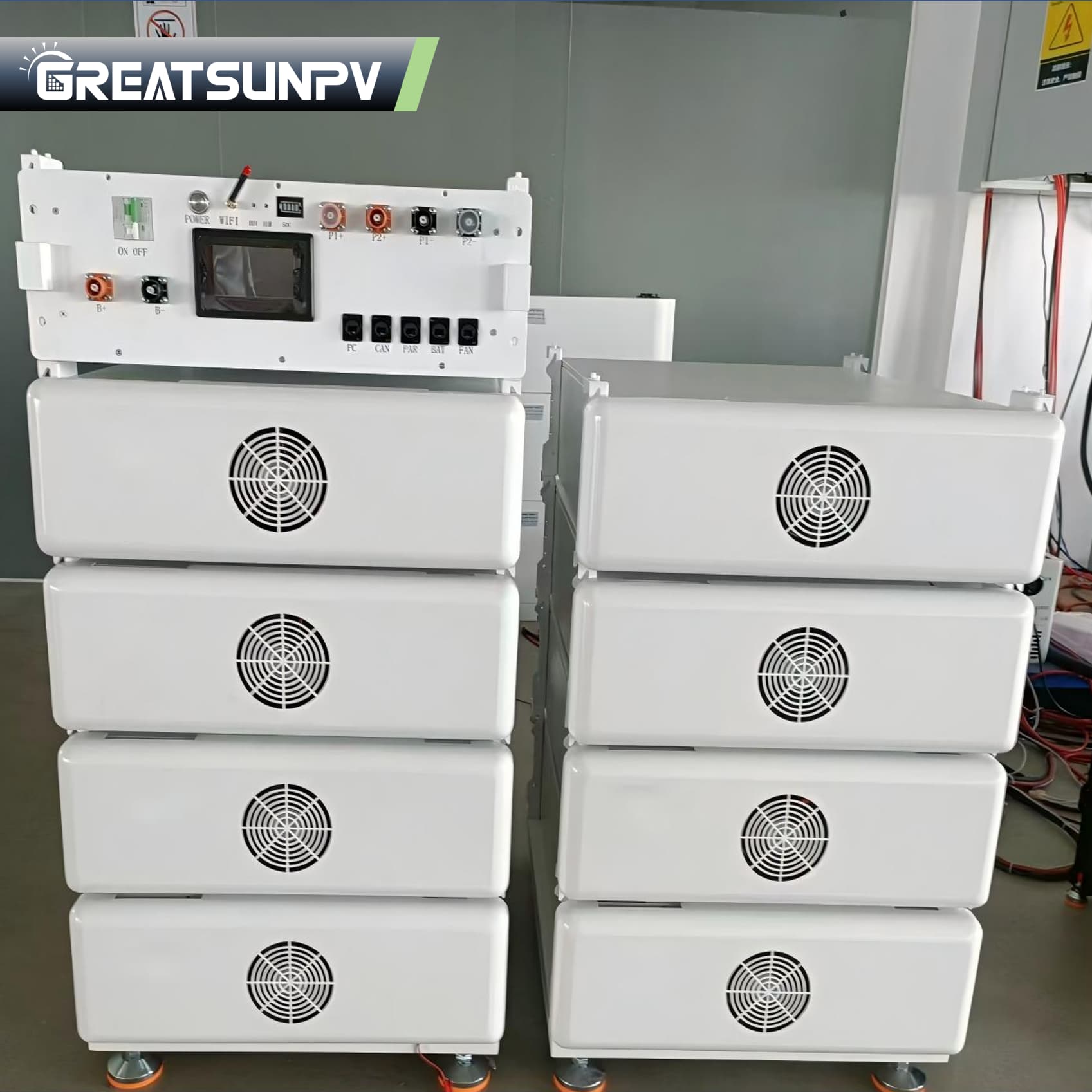

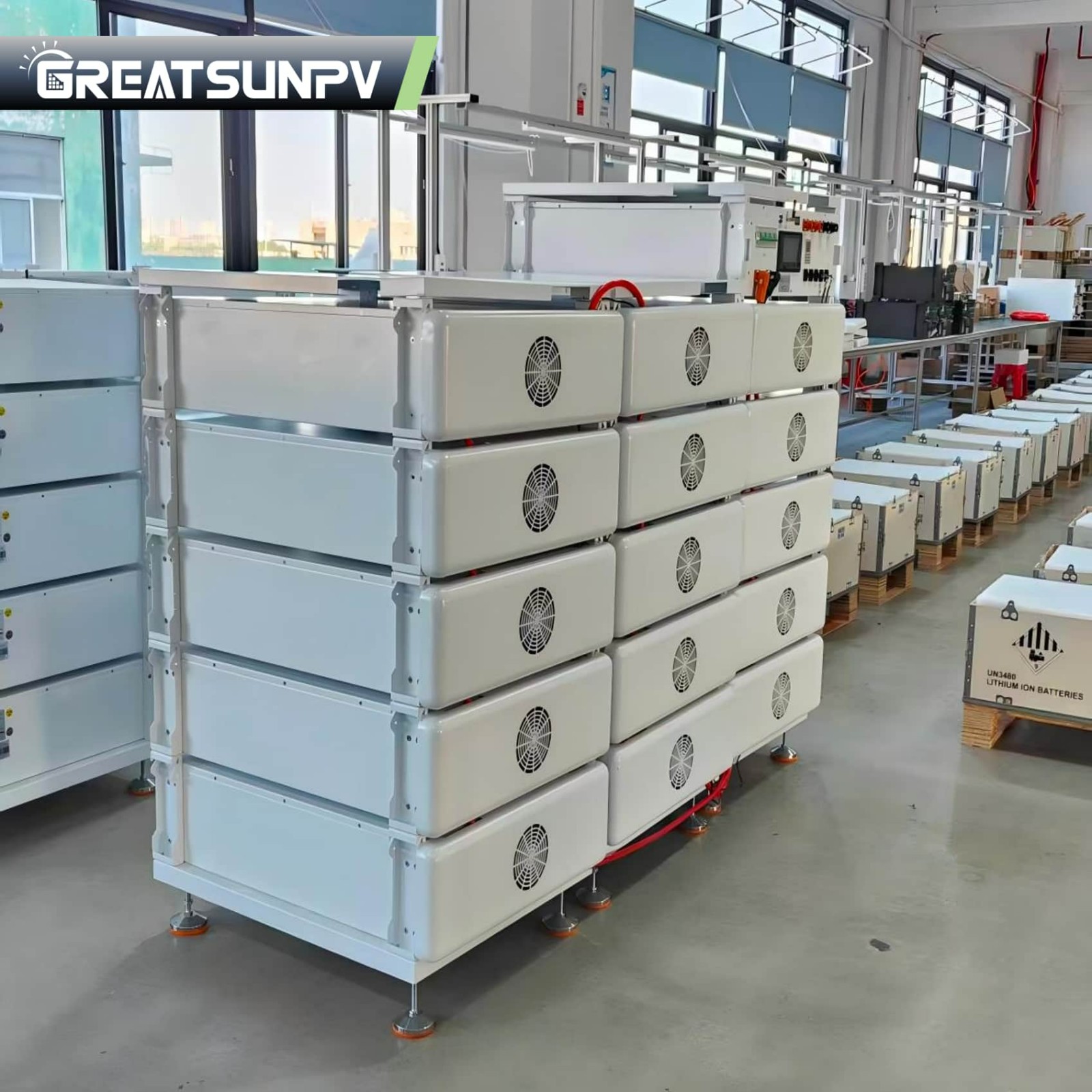

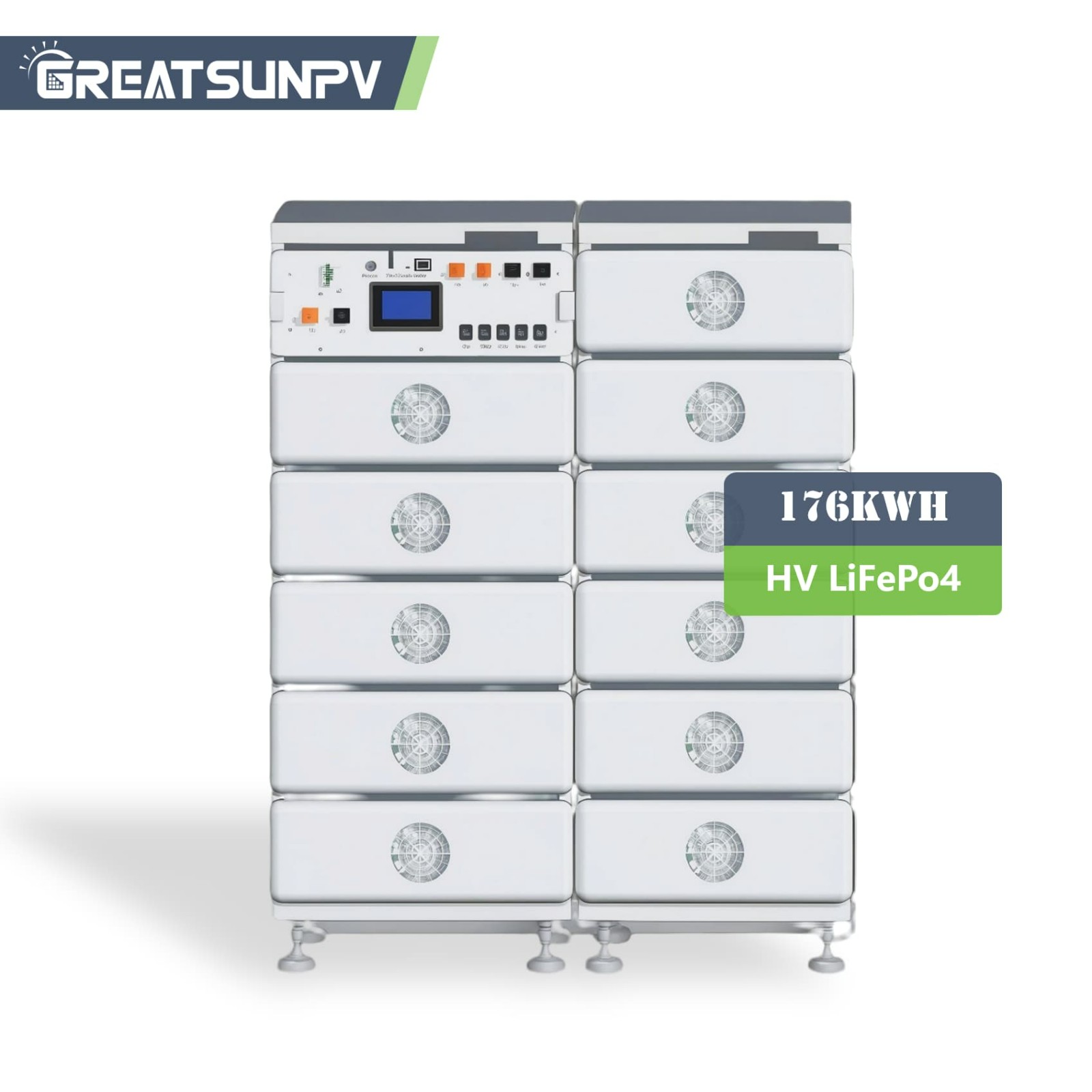

Designed for commercial buildings and microgrid applications, the HV-176KWH 314Ah High Voltage LFP Battery delivers reliable performance with 314 Ah capacity and 176.84 kWh of energy.Its dual-layer BMS ensures intelligent monitoring and fault protection, while active air cooling maintains thermal balance for long-term operation.With a cycle life exceeding 10,000 cycles, it’s a durable and scalable choice for modern energy systems.
Brand Name:
GREATSUNPVNominal Battery Energy:
176KWHWarranty:
10yearsNominal Voltage:
563.2Battery Capacity:
176KWHWeight(kg):
1442Certification & Safety Standard:
CE,UN38.3,MSDSThe HV-176KWH 314Ah High Voltage LFP Battery is engineered for medium-sized commercial facilities and microgrids, offering a strong balance between energy density and scalability.Its intelligent dual-BMS structure ensures accurate control, while the fan-assisted thermal system guarantees long-term stability.
High-Energy Output: 176.8 kWh of reliable power for mid-size installations.
Flexible Layout: Modular design supports easy on-site assembly and maintenance.
Dual BMS Layers: Ensures intelligent cell balancing and fault isolation.
Smart Monitoring: Integrated LCD display and Wi-Fi module for real-time supervision.
Parallel-Ready: Up to 10 systems can be connected to scale power capacity.
| Battery Module | HV-176( 176.8kwh ) | |
| Models | 51.2V314Ah HV | |
| Cell Chemistry | LiFePO4 | |
| Module Energy(kWh) |
16.08 |
|
| Module Nominal Voltage(V) | 51.2 | |
| Module Capacity(Ah) | 314 | |
| Battery Module Qty In Series(Optional) | 11 | |
| System Nominal Voltage(V) | 563.2 | |
| System Operating Voltage(V) | 510.4～633.6 | |
| System Energy(kWh) | 176.84 | |
| System Usable Energy(kWh) | 159.16 | |
| Rated DC Power (KW) | 176.84 | |
| Charge/Discharge Current(A) | Recommend | 160 |
| Max | 200 | |
| Peak Discharge (2mins,25℃) | 125 | |
| Working Temperature(℃) | -10～55℃ | |
| Cooling | Fan Cooling Power | |
| Communication Port | CAN/RS485 | |
| Humidity | 5%～95%RH | |
| Altitude | ≤2000m | |
| IP Rating of Enclosure | IP20 | |
| Weight Approximate ( kg ) | 1442 | |
| Installation Location | Rack Mounting | |
| Storage Temperature(℃) | 0～35 | |
| Recommend Depth of Discharge | 90% | |
| Cycle Life | 25±2℃,0.5C/0.5C,EOL70%≥1000 | |
| Warranty³ | 5+5 years | |
| Certification | CE,UN38.3,MSDS | |
|
1.DC Usable Energy,test conditions:90%DOD,0.3C charge &discharge at 25℃.System usable energy may vary due to system configuration parameters. 2.The current is affected by temperature and SOC. 3.The warranty is due whichever reached first of warranty period or life cycle power. 4.Made in China. |
||
