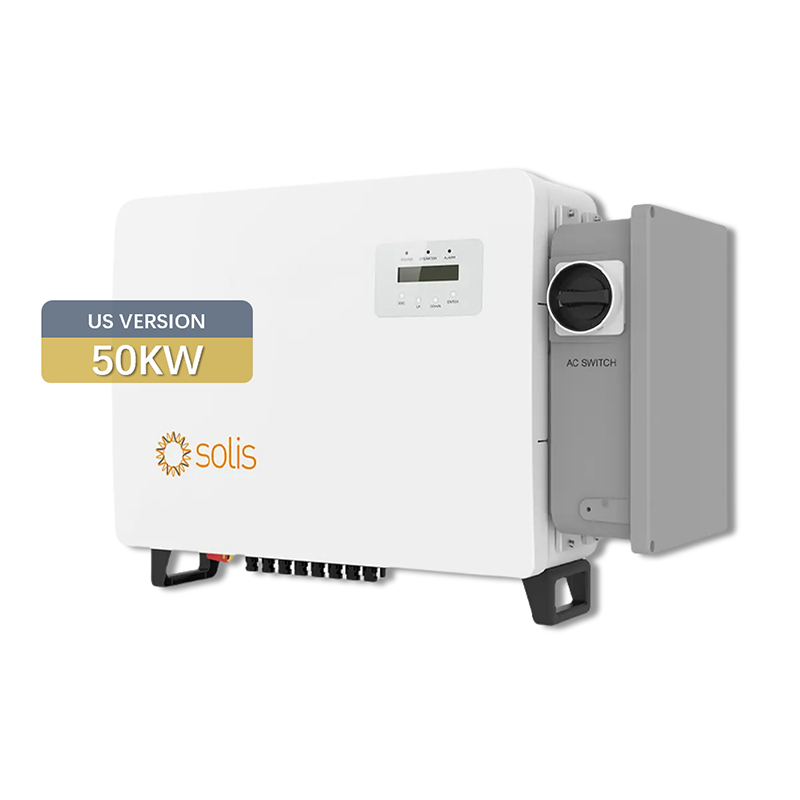

Teir 1 brand solar inverter manufacture us version 20kw 50kw 100kw solar on grid inverter for USA market
S6-GC(25-60)K-US is the preferred PV string inverter for large commercial rooftop PV projects. The inverter features 3/4 independent MPPTs with very wide full-power operating ranges that can bring more yield. String current up to 20A, perfectly accommodates new high-power and bi-facial PV modules. Easy-to-use online O&M tools make O&M more intelligent and convenient. Optimized DC&AC interconnection will reduce the cost of system cables. Type 4X, CS Anti-Corrosion Level can be installed in the harshest environmental conditions.
Brand Name:
SolisType:
On gridMax. Power:
25-60KWAC Voltage:
3/PE, 720VWarranty:
10 yearsIngress Protection:
IP66Dimensions:
784×549×320mmCertification & Safety Standard:
UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
• Max. efficiency 98.8% (CEC efficiency 98.3%). String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design. Night time PID recovery function, increases overall system yield (optional). Wide voltage range and low startup voltage
• Type 4X, C5 Anti-Corrosion Level. AFCI protection, proactively reduces fire risk. Intelligent fan-cooling. Integrated module level rapid shutdown transmitter, DC and AC disconnects
• Equipped with external power control interface, supporting zero output power control

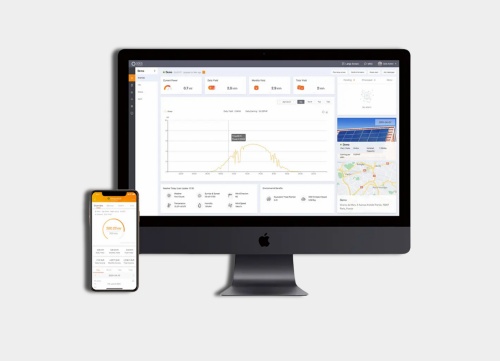

• Intelligent string monitoring, smart I-V curve scan. Supports RS485, Ethernet, WiFi, Cellular. Scan to register on SolisCloud, supports remote upgrade and control
• > 1.5 DC/AC ratio. Supports high power modules for lower installation costs. Separable AC wiring box
• Smart I-V curve scan, system health report, string-level fault finding
• Connecting with multiple types of devices seamlessly: Inverters, export power managers, weather stations, etc.
• Connecting with multiple types of devices seamlessly: Inverters, export power managers, weather stations, etc.
• Manage multiple types of systems across residential, commercial and utility scale plants.Enables multiple team management across different sectors
• Clear and concise display of system performance and benefits including carbon emissions saved and equivalent trees planted as well as showing system yield & earnings

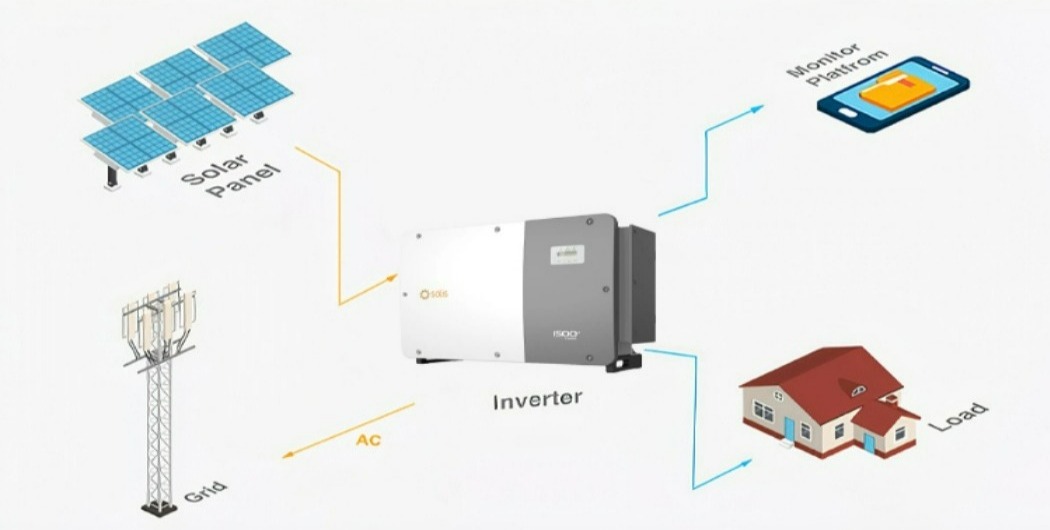

Diagram:
Datasheet:
| Models | 25K | 33K | 36K | 40K | 50K | 60K |
| Input DC | ||||||
| Max. input voltage | 1000 V | |||||
| Rated voltage | 720 V | |||||
| Start-up voltage | 180 V | |||||
| MPPT voltage range | 180 - 1000 V | |||||
| Max. input current | 40 A / 40 A / 40 A | 4 × 40 A | ||||
| Max. short circuit current | 63 A / 63 A / 63 A | 4 × 63 A | ||||
| MPPT number / Max. input strings number | 3 / 6 | 4 / 8 | ||||
| Output AC | ||||||
| Rated output power | 25 kW | 33 kW | 36 kW | 40 kW | 50 kW | 60 kW |
| Max. apparent output power | 25 kVA | 33 kVA | 36 kVA | 40 kVA | 50 kVA | 60 kVA |
| Max. output power | 25 kW | 33 kW | 36 kW | 40 kW | 50 kW | 60 kW |
| Rated grid voltage | 3Ф/PE, 480 V | |||||
| Rated grid frequency | 60 Hz | |||||
| Max. output current | 30.1 A | 39.7 A | 43.3 A | 48.1 A | 60.1 A | 72.2 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | |||||
| THDi | < 3% | |||||
| Efficiency | ||||||
| Max. efficiency | 98.8% | |||||
| CEC efficiency | 98.3% | |||||
| Protection | ||||||
| DC reverse-polarity protection | Yes | |||||
| Short circuit protection | Yes | |||||
| Output over current protection | Yes | |||||
| Surge protection | DC Type II / ACType II | |||||
| Grid monitoring | Yes | |||||
| Anti-islanding protection | Yes | |||||
| Temperature protection | Yes | |||||
| Strings monitoring | Yes | |||||
| I/V Curve scanning | Yes | |||||
| Multi peak scan | Yes | |||||
| Integrated AFCI | Yes | |||||
| Integrated PID recovery | Optional | |||||
| Integrated DC switch | Yes | |||||
| Integrated AC switch | Yes | |||||
| General Data | ||||||
| Dimensions (W × H × D) | 30.9 × 21.6 × 12.6 in (784 × 549 × 320 mm) | |||||
| Weight | 96.3 lbs (43.7 kgs) | 105.4 lbs (47.8 kgs) | 108.7 lbs (49.3 kgs) | 110.5 lbs (50.1 kgs) | ||
| Topology | Transformerless | |||||
| Self-consumption (night) | <1W | |||||
| Relative humidity | 0 - 100% | |||||
| Operating ambient temperature range | -13°F to 140°F (-25°C to 60°C) | |||||
| Ingress protection | TYPE 4X | |||||
| Noise emission (typical) | ≤ 55 dB(A) | |||||
| Cooling concept | Natural cooling | |||||
| Max. operation altitude | 13,120 ft (4000 m) | |||||
| Compliance | UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1 |
|||||
| Features | ||||||
| DC connection | MC4 connector | |||||
| AC connection | OT terminal (4 AWG to 3/0 AWG) | |||||
| Display | LCD | |||||
| Communication | Modbus RTU (Sunspec compliant), RS485, Optional: Cellular, Wi-Fi | |||||
Packaging:

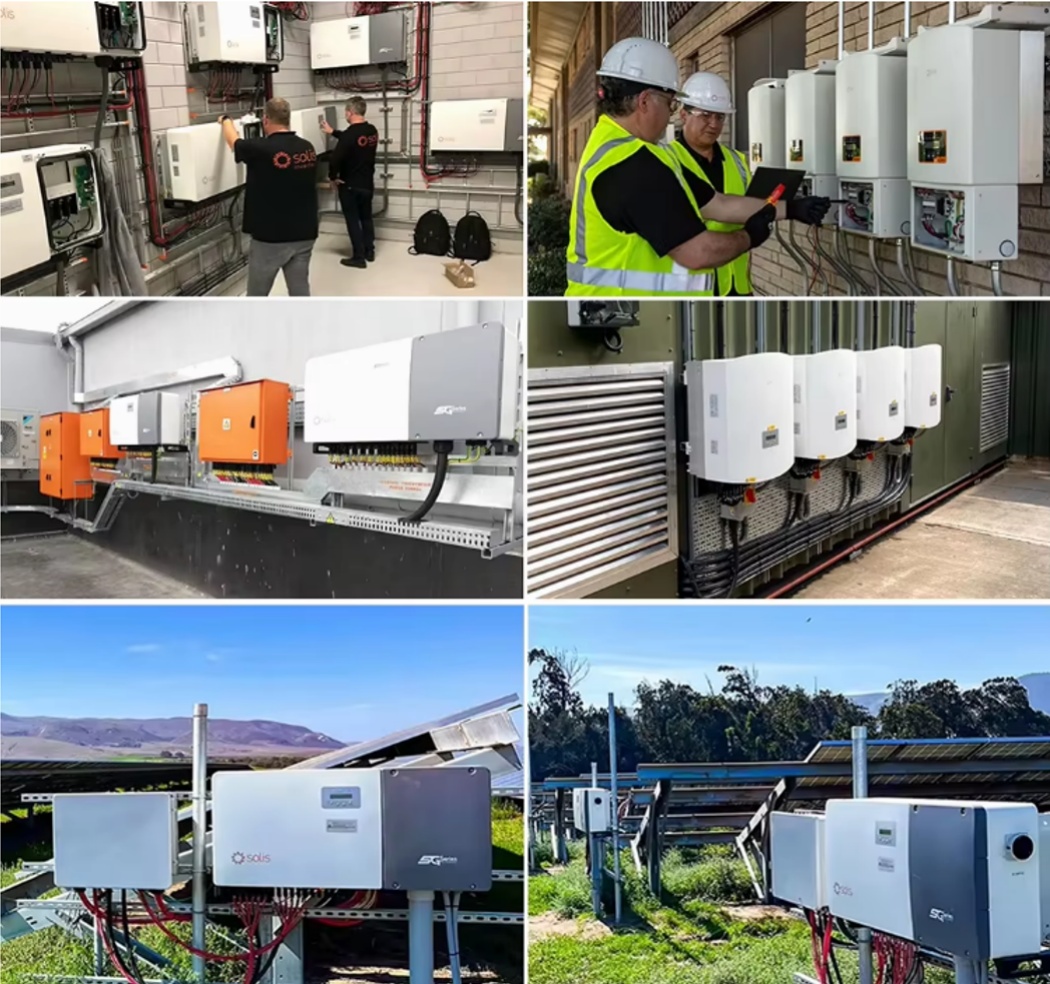

Project Case:
Q&A:
Q1: What is an on-grid inverter?
A: A device that converts DC solar power to AC, synchronized with the grid. Excess energy feeds back to the grid; no battery storage required.
Q2: How does a on-grid inverter work?
A: Uses MPPT to optimize solar input, converts DC to AC, and synchronizes with the grid. Excess power exports for credits (net metering).
Q3: Any Certificates?
A: Yes. G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/
UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Q4: Safety features?
A: Anti-islanding (grid outage shutdown), surge protection, overvoltage/current safeguards, and temperature monitoring.
Q5: Ideal applications?
A: Commercial/industrial buildings, factories, farms, and small utility solar projects.
Q6: Maintenance needs?
A: Minimal—dust/weatherproof design (IP65), remote diagnostics, and firmware updates reduce physical checks.
Q7: What is the warranty?
A: We can supply 5 and 10 years long time warranty.
Q8: Can it work during blackouts?
A: No—anti-islanding safety shuts it off unless paired with batteries (hybrid inverter).
Q9: Future upgrades?
A: Supports integration with energy storage (ESS) or smart grids for hybrid functionality
