Stacked lithium battery 5kw 10kw 15kw low Voltage lithium battery with 10years warranty

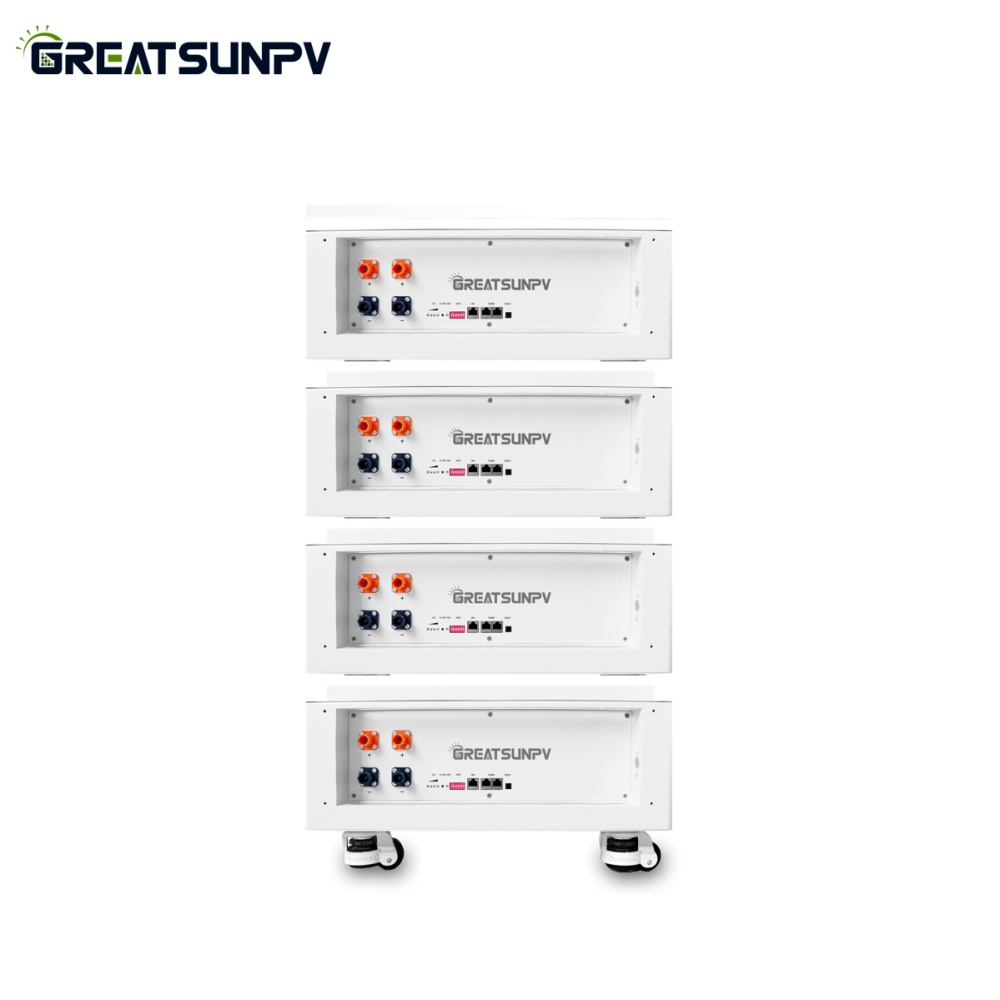

GREATSUNPV RACK R1-5 Supports the parallel connection of up to 15 batteries, accommodating a wider range of users. It stands out as a powerful, high-capacity, and modular solution.
Brand Name:
GREATSUNPVNominal Battery Energy:
5KWHWarranty:
10 YearsNominal Voltage:
51.2VBattery Capacity:
5KWHDimension(mm):
525*510*215mmWeight(kg):
56.7KGCertification & Safety Standard:
CE/IEC/UN38.3/MSDS
Features and Advantages:
GREATSUNPV lifepo4 battery has the advantages of high safety performance, long life span, wide charge voltage range, simple installation, and standard modular design. Products can be widely used in household energy storage, industrial and commercial energy storage and other filelds.
| Model | RACK R1-5 |
| Battery Module Type | LiFePO4 |
| Dimension | 525*510*215mm |
| Weight | 56.7KG |
| Nominal Voltage(V) | 51.2 |
| Nominal Capacity(WH) | 5120 |
| Usable Capacity(WH) | 4608 |
| Discharge Voltage(V) | 44.8 |
| Charge Voltage(V) | 57.6 |
| Recommend Charge/Discharge Current(A) | 50 |
| Max.Charge/Discharge Current(A) | 100(3S) |
| Communication | RS485/CAN/Bluetooth(Optional) |
| Operation Temperature | 0-40℃ |
| Storage Temperature | -20-70℃ |
| Protection Level | IP20 |
| Expansion | up to 15 units in parallel |
| Certification | CE/IEC/UN38.3/MSDS |
| Design Life | 10 years+ |
| Cycle Life | >=6000 |
| Wrranty | 10 years |
