Solution for 30kw 50kw 100kw grid tie solar system with wifi monitor

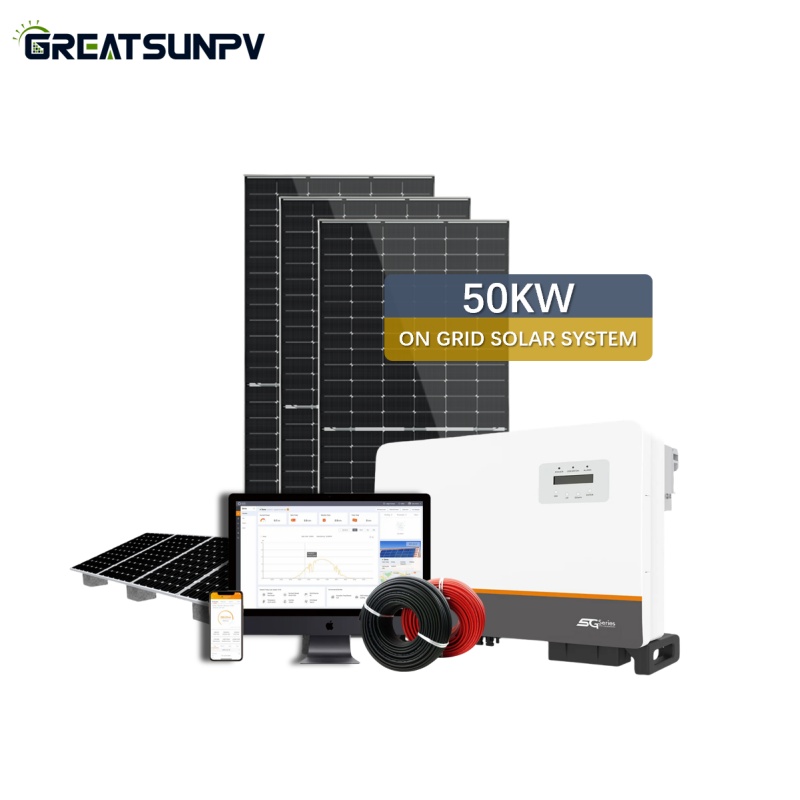

GREATSUNPV 50KW on grid solar system for commercial and presidential building, reduce costs and selling surplus energy, simplify maintenance and leverage existing grid infrastructure efficiently
Brand Name:
GREATSUNPVSystem Power:
50KWSystem Type:
On-Grid/ Grid-TiedApplicable Voltage:
EU/US VersionSolar Panel Type:
Mono-crystallineInstallation Type:
Roof/Ground/Water SurfaceCustomization:
AcceptablePre-sale Design:
AcceptableApplication:
Presidential and CommercialCertificate:
CE/MCS/TUV/VDE/UL/CSA/ETL/CECOEM:
AcceptableSystem Components：

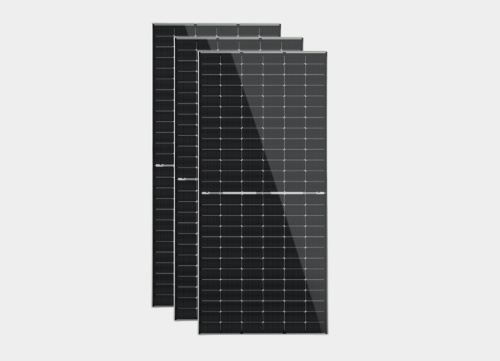

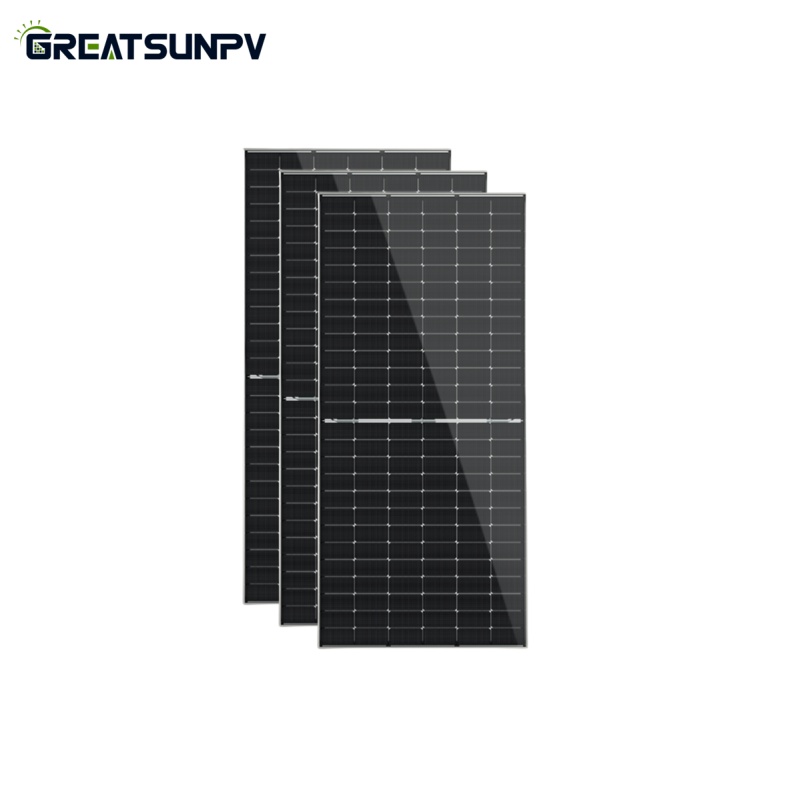

High Efficiency PV Module
* Max Power: 600W-750W
* Technology: TOPCon/HJT/Bifacial
* Low temperature coefficient
* Up to 24% Efficiency
* Low BOS cost & LCOE
* Warranty: 30 Years
* Full Certification

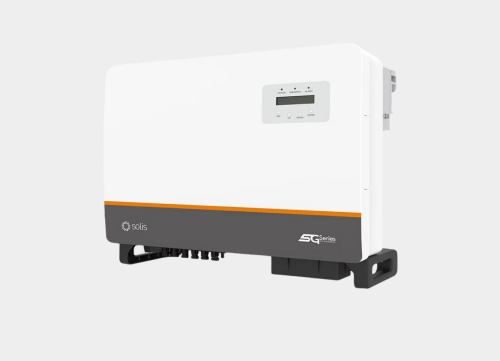

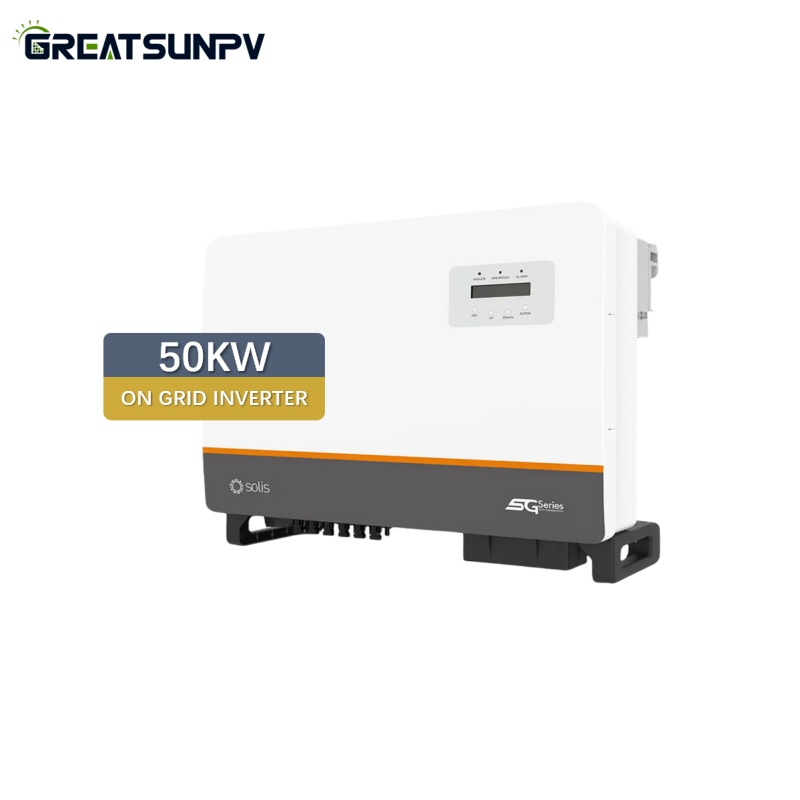

Smart Commercial Grid Tie Inverter
* 3/4 MPPT design with precise MPPT algorithm
* Max. efficiency up to 98.8%
* 150% DC overload ratio, 13A input for each PV string
* Type II surge arrester for both DC and AC
* Wide voltage range and low startup voltage

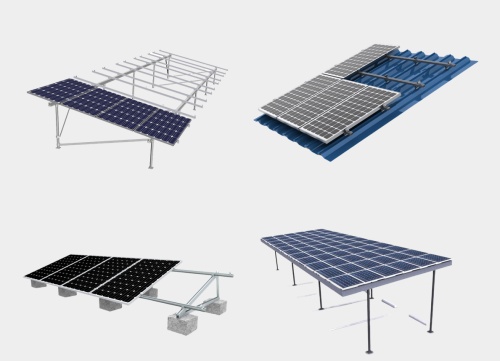

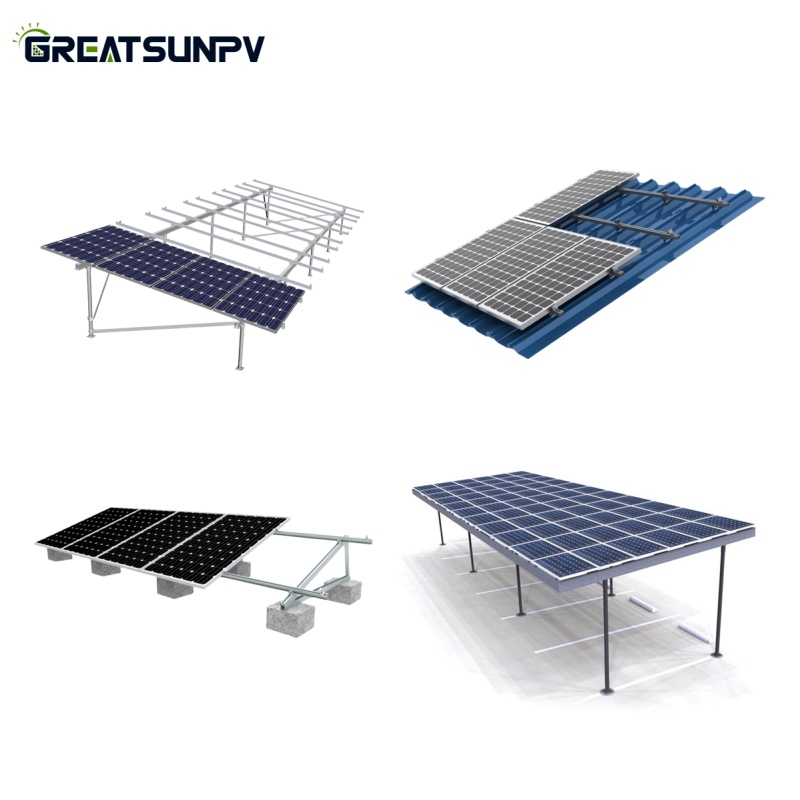

PV Mounting System
* Residential Roof(Pitched Roof)
* Commercial Roof(Flat roof&workshop roof)
* Ground Solar Mounting system
* Vertical wall solar mounting system
* All aluminum structure solar mounting system
* Car parking solar mounting system

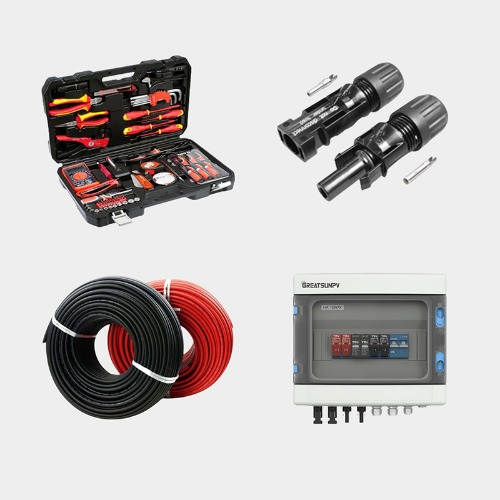

Accessories：

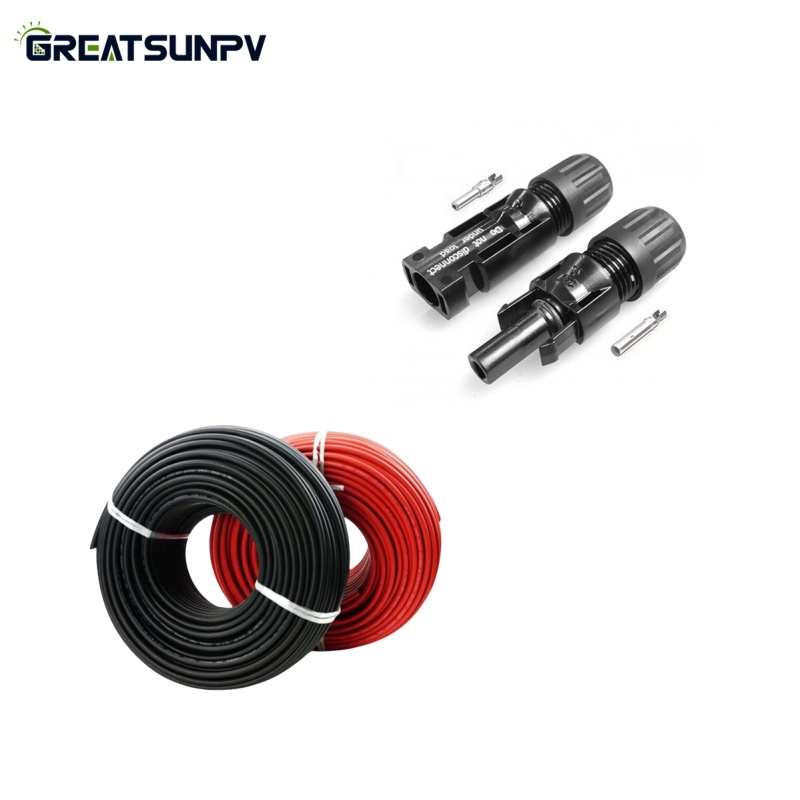

DC Cable & MC4 Connector
* Cross Section: 4mm2, 6mm2 Optional
* Rated Voltage:1000VDC/1500VDC
* Rated Current: 55A,70A
* Colors: Black For STD, Red Optional.
* Lifetime:30 Years
Installation Tools
* Solar Crimper
* Connector Wrench
PV Combiner Box
* Customized pv combiner box for solar panels connection
* Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
* IP65 Waterproof, applicable for outdoor PV systems
System Configuration：
| Model | OGS-50KW | OGS-100KW | OGS-500KW | OGS-1000KW |
| Mono 600W Solar Panel | 90 Pieces | 180 Pieces | 840 Pieces | 1680 Pieces |
| PV Combiner Box | 1 Piece | 1 Piece | 10 Pieces | 20 Pieces |
| Inverter | 1X50kW | 1X100kW | 2X255kW | 4X255KW |
| DC Cable 4mm2 | 1000 Meter | 2000 Meter | 8000 Meter | 12000 Meter |
| MC4 Connector | 50 Pairs | 100 Pairs | 300 Pairs | 600 Pairs |
| Mounting System | Customized Based On Installation Roof/Ground | |||
| PV Installation Tools | 1 Set | 1 Set | 1 Set | 1 Set |

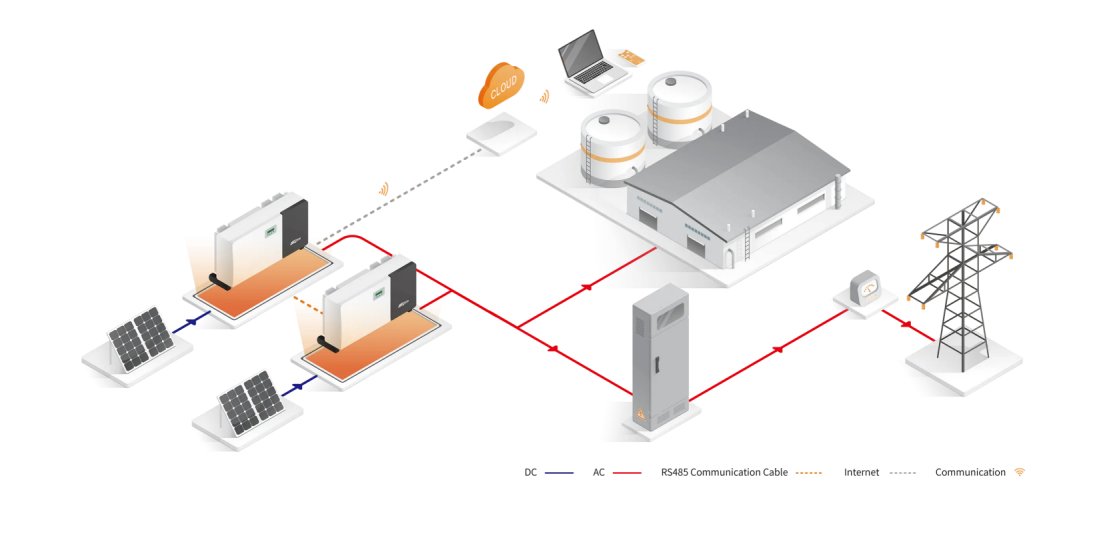

System Diagram:

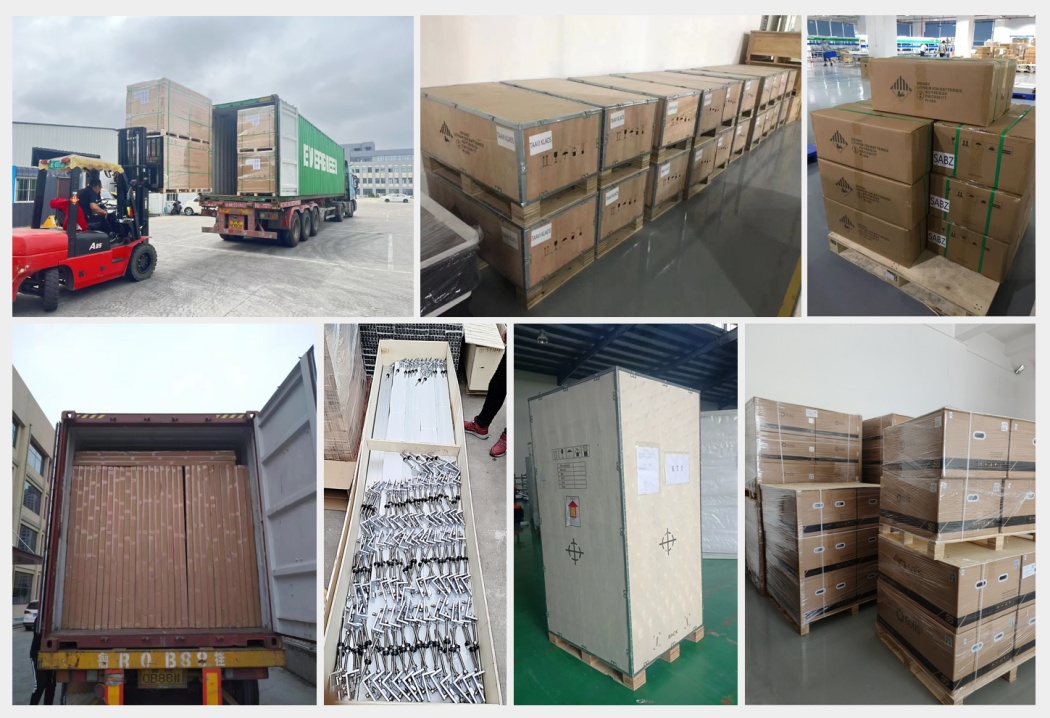

Packing & Delivery:

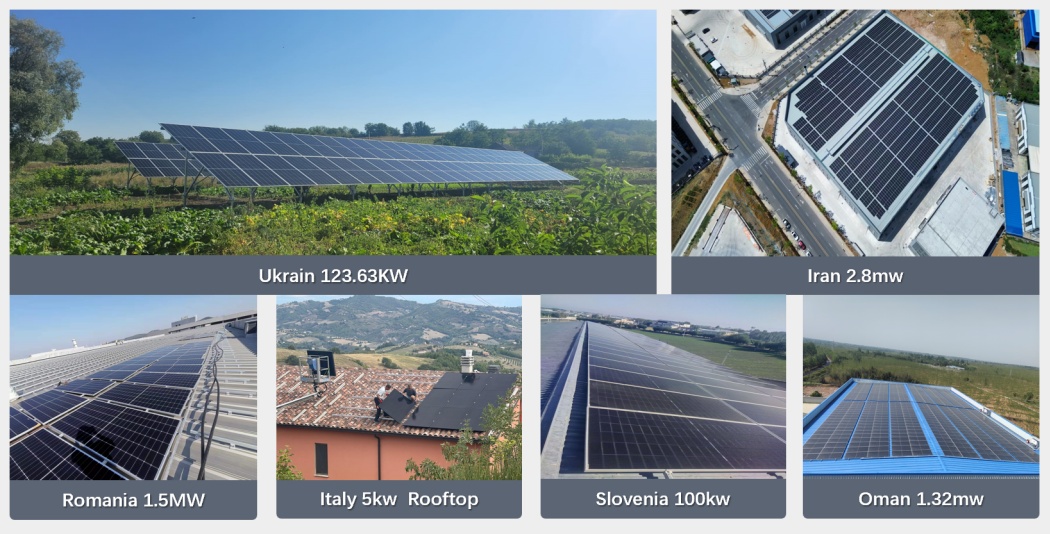

Project Cases:
