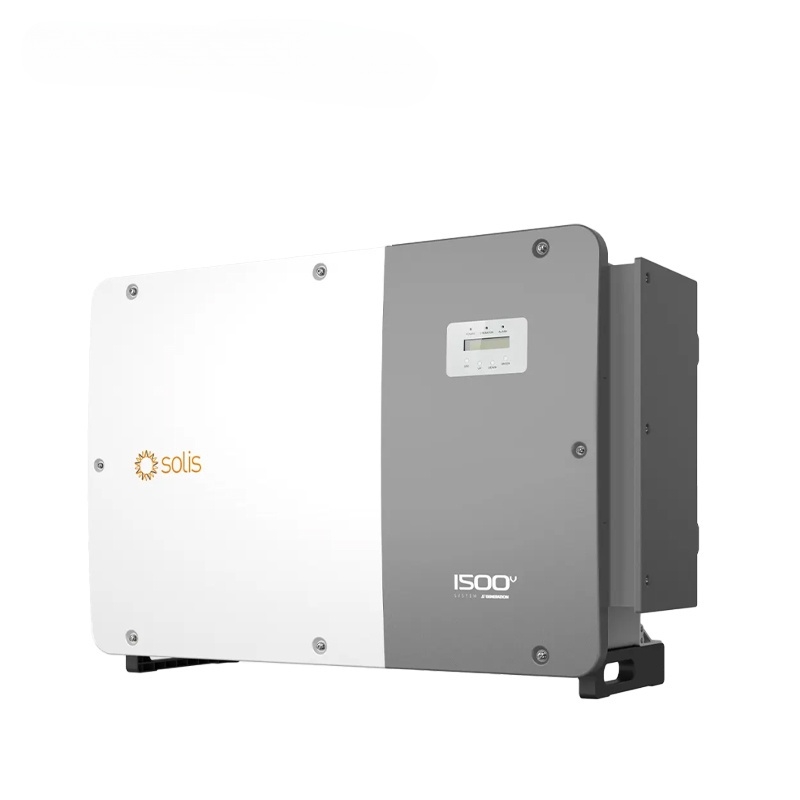

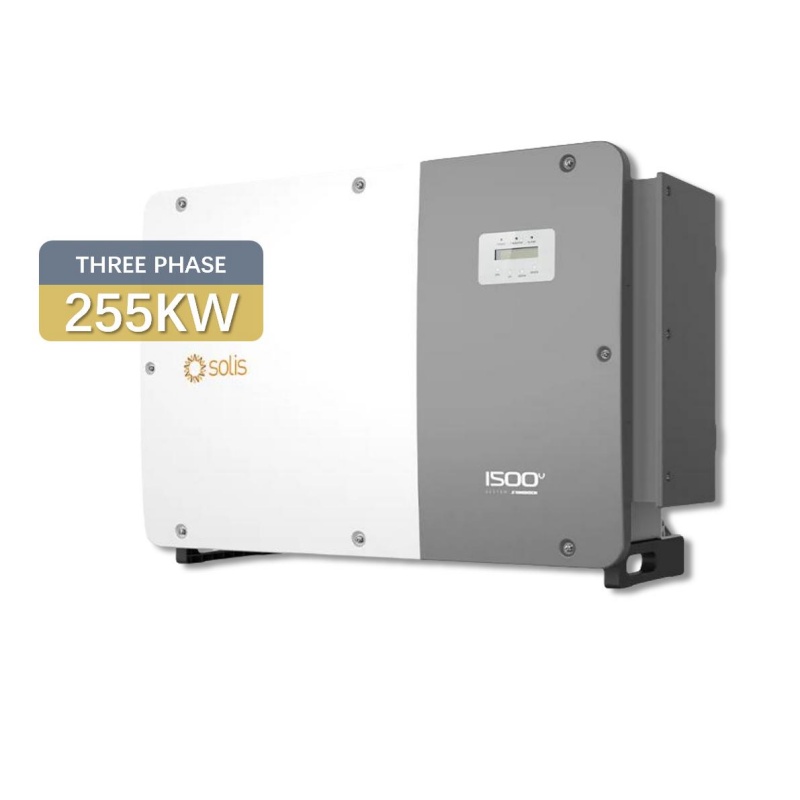

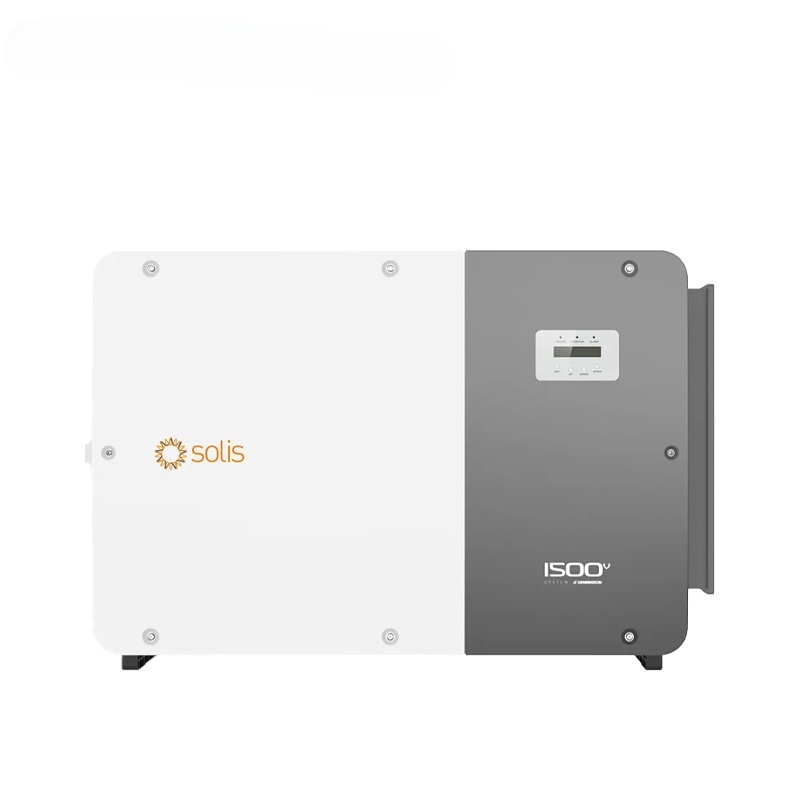

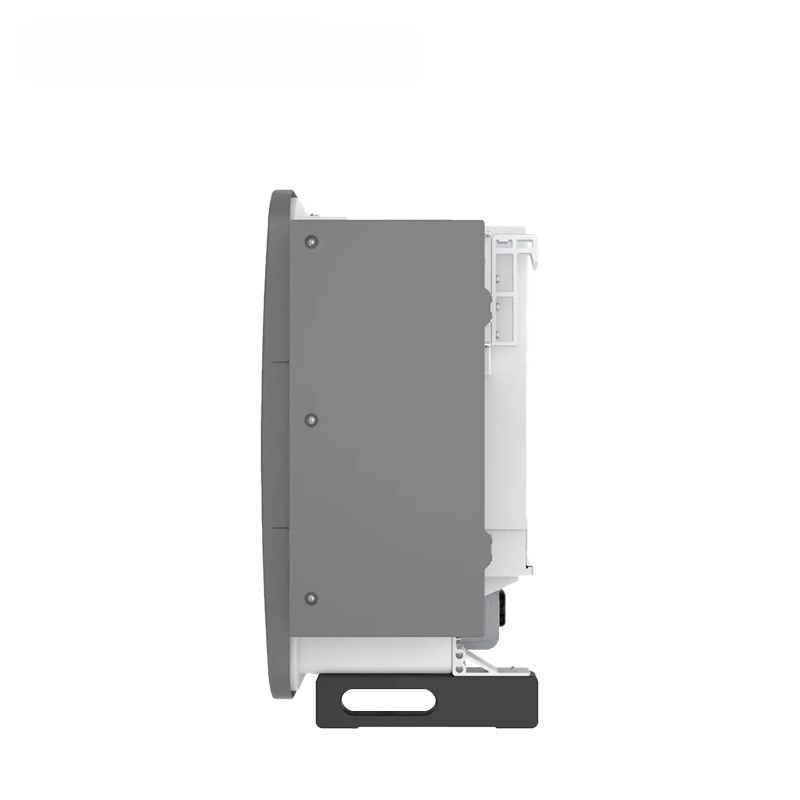

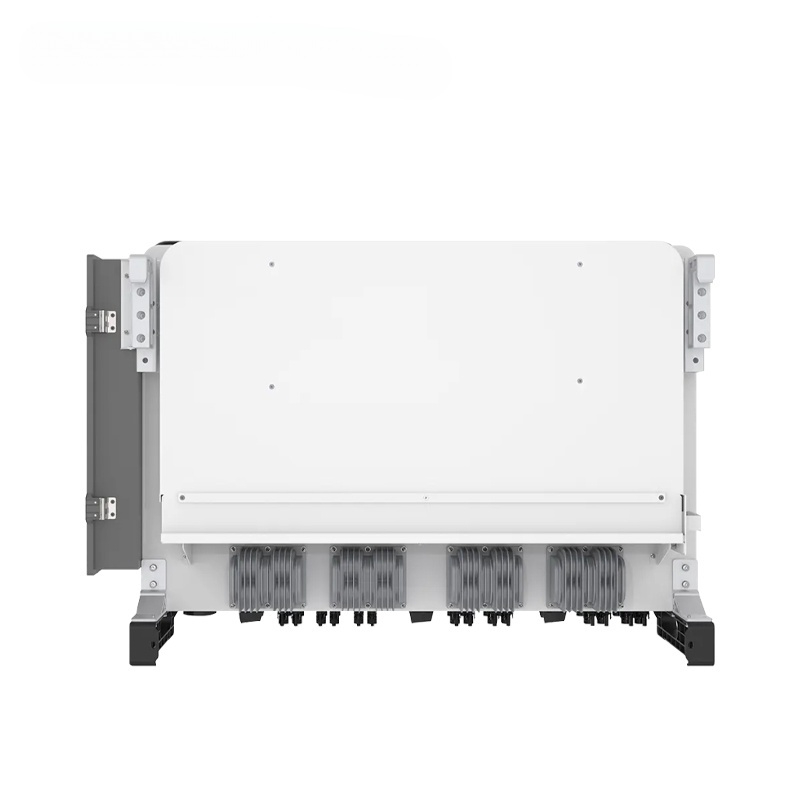

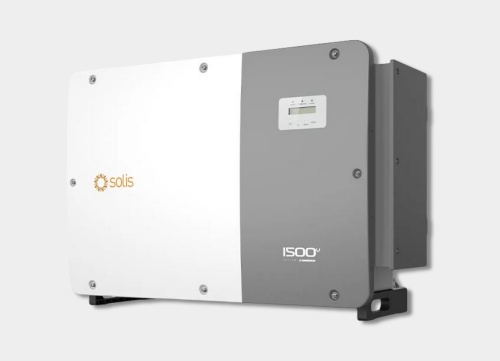

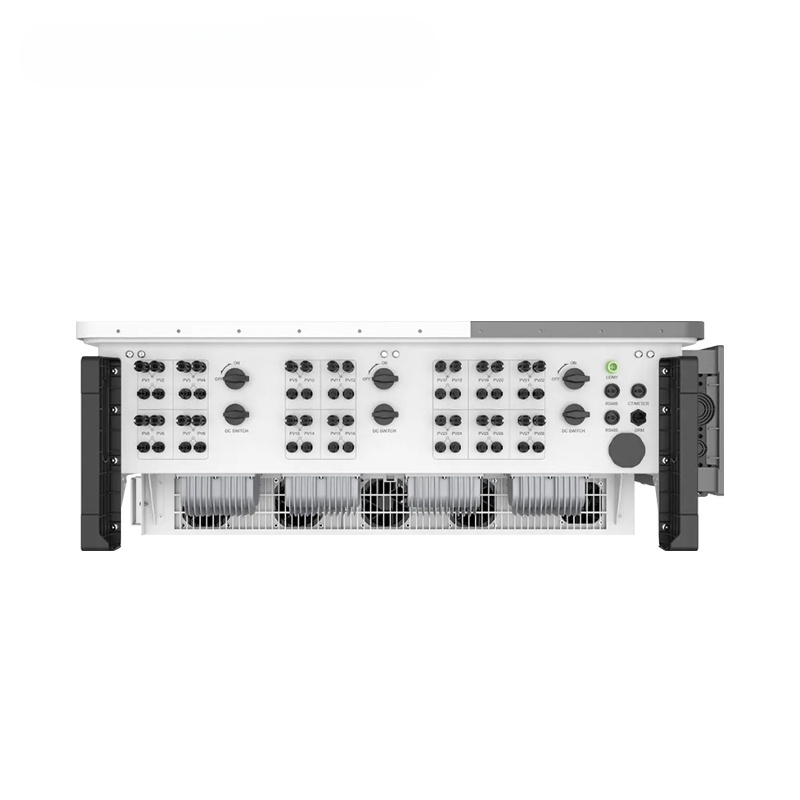

High efficiency 800v 100kw 150kw 250kw 255kw 350kw solar inverter for commercial use
215-255kW three-phase series string inverter have Maximum 28 strings input, support "Y" type connection in DC side. Maximum string input current 15 A, support bifacial modules access. Supports anti-PID function to improve system efficiency. High-precision intelligent strings monitoring reduces fault location time.
Brand Name:
SolisType:
On gridMax. Power:
215-255KWAC Voltage:
3/PE, 800 VWarranty:
10 yearsIngress Protection:
IP66Dimensions:
1125×770×384 mmCertification & Safety Standard:
EN50549, G99, AS4777.2, VDE0126, IEC61727, VDE4110, CEA 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
Efficient
• 9/12/14 MPPTs, max. efficiency 99.0%
• > 150% DC/AC ratio
• High power tracking density 56MPPT/MW
• Compatible with 550W+ bifacial modules
Smart
• Night SVG function
• Intelligent string monitoring, smart I-V curve scan
• Remote firmware upgrade with simple operation
Safe
• IP66
• Nighttime PID recovery function
• Fuse free design, safe and maintenance free
• Globally recognised branded component for longer life
Economic
• Power line communication (PLC) (optional)
• DC side supports "Y" connector
• Smart I-V curve scan, system health report, string-level fault finding
• Connecting with multiple types of devices seamlessly: Inverters, export power managers, weather stations, etc.
• Connecting with multiple types of devices seamlessly: Inverters, export power managers, weather stations, etc.
• Manage multiple types of systems across residential, commercial and utility scale plants.Enables multiple team management across different sectors
• Clear and concise display of system performance and benefits including carbon emissions saved and equivalent trees planted as well as showing system yield & earnings
Diagram:
Datasheet:
| Models | 215K-PLUS | 250K | 250K-PLUS | 255K | 255K-PLUS |
| Input DC | |||||
| Max. input voltage | 1500 V | ||||
| Rated voltage | 1080 V | ||||
| Start-up voltage | 500 V | ||||
| MPPT voltage range | 480 - 1500 V | ||||
| Max. input current | 9 × 30 A | 14 × 26 A | 12 × 30 A | 14 × 26 A | 12 × 30 A |
| Max. short circuit current | 9 × 50 A | 14 × 40 A | 12 × 50 A | 14 × 40 A | 12 × 50 A |
| MPPT number / Max. input strings number | 9/18 | 14 / 28 | 12/24 | 14 / 28 | 12/24 |
| Output AC | |||||
| Output power | 215 kVA@30°C/205 kVA@40°C/195 kVA@50°C | 250 kVA@30°C / 235 kVA@40°C / 220 kVA@50°C | 255 kVA@30°C / 235 kVA@40°C / 220 kVA@50°C | ||
| Rated grid voltage | 3/PE, 800 V | ||||
| Grid voltage range | 640 - 920 V | ||||
| Rated grid frequency | 50 Hz / 60 Hz | ||||
| Max. output current | 155.2 A | 180.4 A | 184.0 A | ||
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | ||||
| THDi | < 3% | ||||
| Eficiency | |||||
| Max. eficiency | 99.00% | ||||
| EU eficiency | 98.80% | 98.70% | 98.80% | 98.70% | 98.80% |
| Protection | |||||
| DC reverse-polarity protection | Yes | ||||
| Short circuit protection | Yes | ||||
| Output over current protection | Yes | ||||
| Surge protection | DC Type II/AC Type II | ||||
| Grid monitoring | Yes | ||||
| Anti-islanding protection | Yes | ||||
| Temperature protection | Yes | ||||
| Strings monitoring | Yes | ||||
| I/V Curve scanning | Yes | ||||
| Night time SVG function | Yes | ||||
| Integrated PID recovery | Yes | ||||
| Integrated DC switch | Yes | ||||
| General Data | |||||
| Dimensions (W × H × D) | 1125 × 770 × 384 mm | ||||
| Weight | 109 kg | 113 kg | |||
| Topology | Transformerless | ||||
| Self-consumption (night) | < 2 W | ||||
| Operating ambient temperature range | -30 ~ +60°C | ||||
| Relative humidity | 0 - 100% | ||||
| Ingress protection | IP66 | ||||
| Cooling concept | Intelligent fan-cooling | ||||
| Max. operation altitude | 4000 m | ||||
| Grid connection standard | EN50549, G99, AS4777.2, VDE0126, IEC61727, VDE4110, CEA 2019 | ||||
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4 | ||||
| Features | |||||
| DC connection | MC4 connector | ||||
| AC connection | OT terminal (max. 300 mm²) | ||||
| Display | LCD | ||||
| Communication | RS485, Optional: PLC | ||||
Packaging:
Project Case:
Q&A:
Q1: What is an on-grid inverter?
A: A device that converts DC solar power to AC, synchronized with the grid. Excess energy feeds back to the grid; no battery storage required.
Q2: How does a on-grid inverter work?
A: Uses MPPT to optimize solar input, converts DC to AC, and synchronizes with the grid. Excess power exports for credits (net metering).
Q3: Any Certificates?
A: Yes. G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/
UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Q4: Safety features?
A: Anti-islanding (grid outage shutdown), surge protection, overvoltage/current safeguards, and temperature monitoring.
Q5: Ideal applications?
A: Commercial/industrial buildings, factories, farms, and small utility solar projects.
Q6: Maintenance needs?
A: Minimal—dust/weatherproof design (IP65), remote diagnostics, and firmware updates reduce physical checks.
Q7: What is the warranty?
A: We can supply 5 and 10 years long time warranty.
Q8: Can it work during blackouts?
A: No—anti-islanding safety shuts it off unless paired with batteries (hybrid inverter).
Q9: Future upgrades?
A: Supports integration with energy storage (ESS) or smart grids for hybrid functionality
