GREATSUNPV GLC261-125K Liquid Cooling Battery Cabinet Compatible with Deye Solis Growatt Inverter

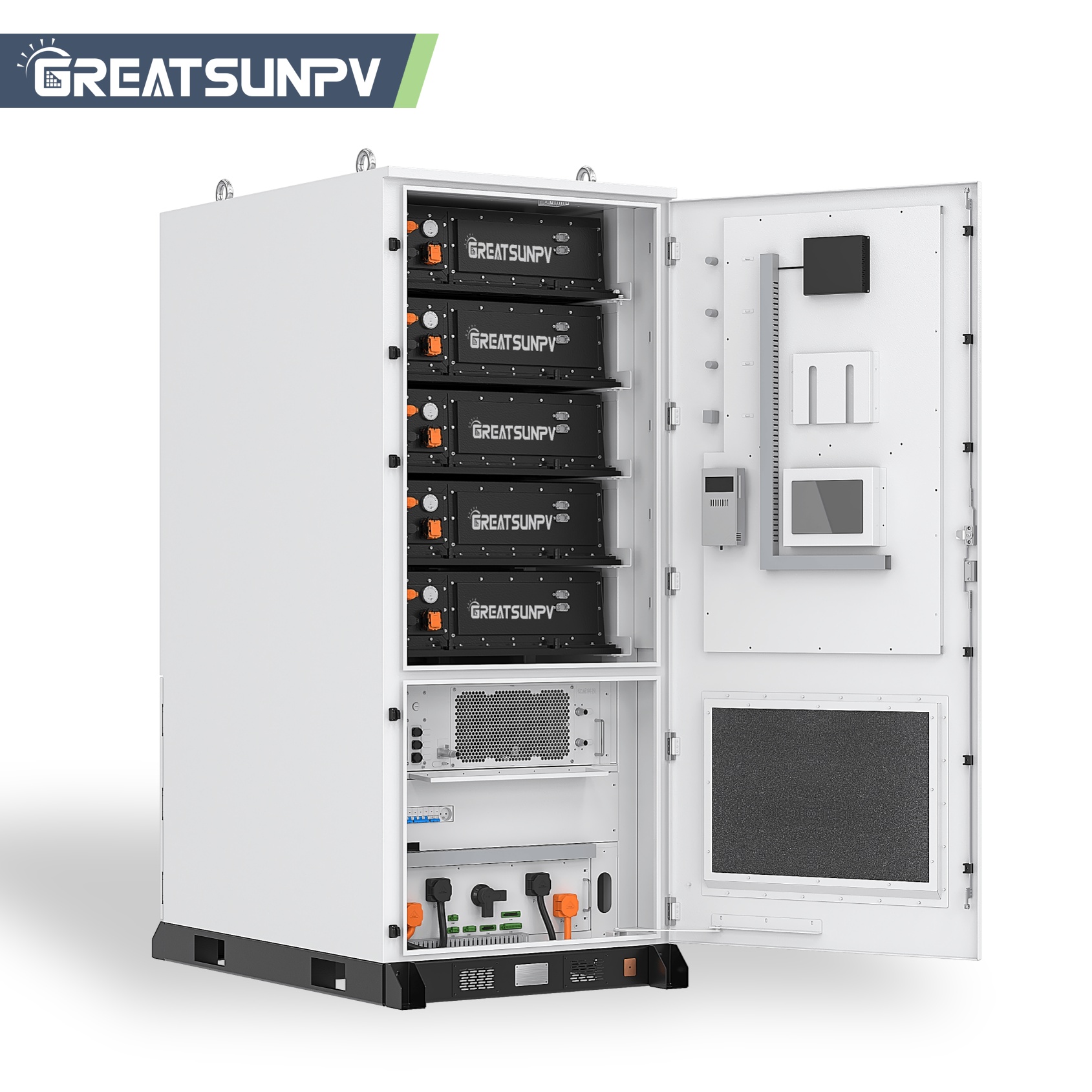

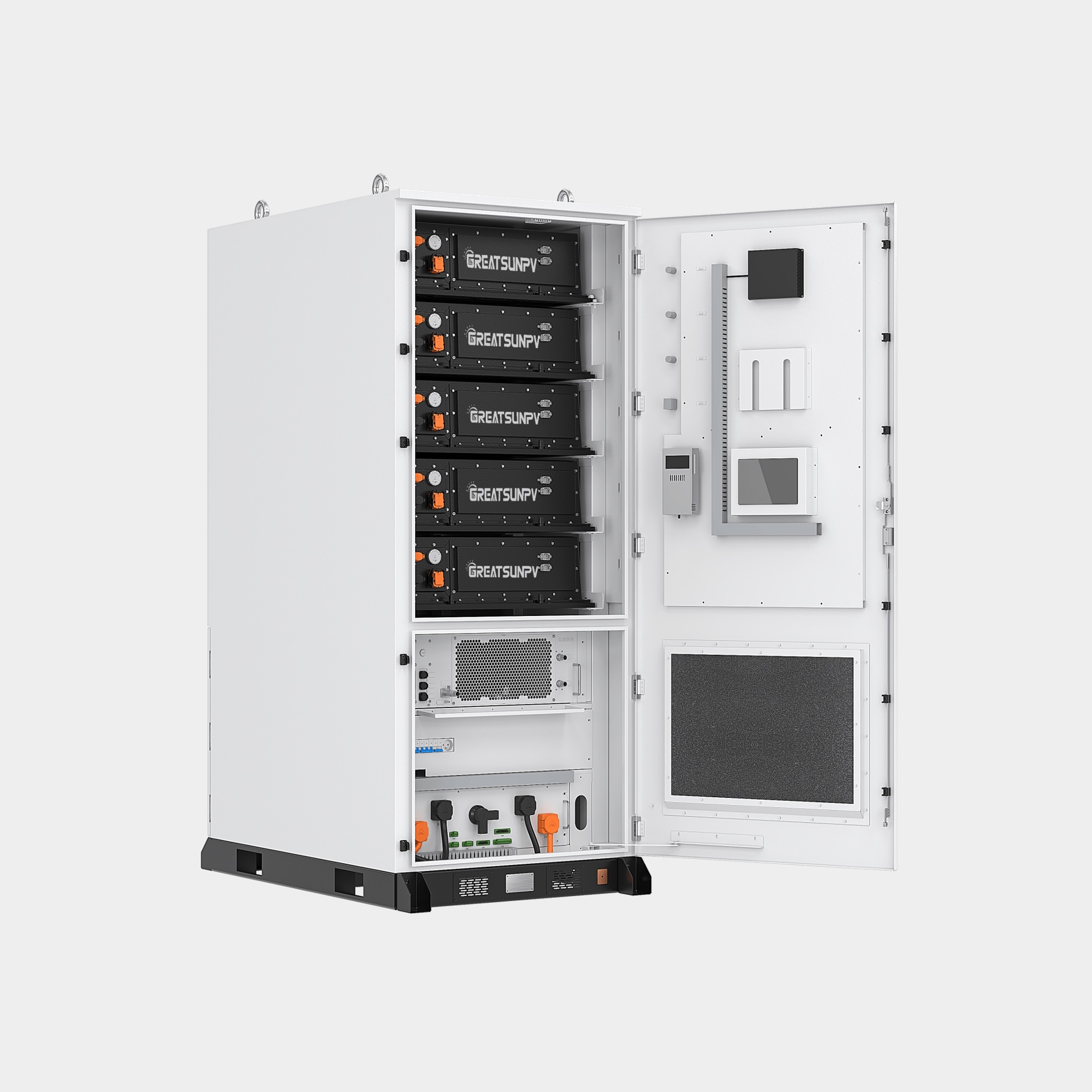

GREATSUNPV GLC261-125K is a high-performance 261kWh liquid cooling battery cabinet designed for flexible integration with leading 125kW PCS and inverter brands including Deye, Solis, and Growatt. Featuring advanced LFP314Ah battery technology, intelligent liquid cooling, and 8000-cycle long lifespan, it provides a reliable and scalable energy storage solution for commercial and industrial applications.
Brand Name:
GREATSUNPVNominal Battery Energy:
261kwhWarranty:
10Nominal Voltage:
51.2Battery Capacity:
314Dimension(mm):
1011 × 1420 × 2320 MMWeight(kg):
≈2.6TCertification & Safety Standard:
CE MSDS UN38.3Different markets and EPC projects often require different inverter platforms due to certification requirements, local service networks, and customer preferences.

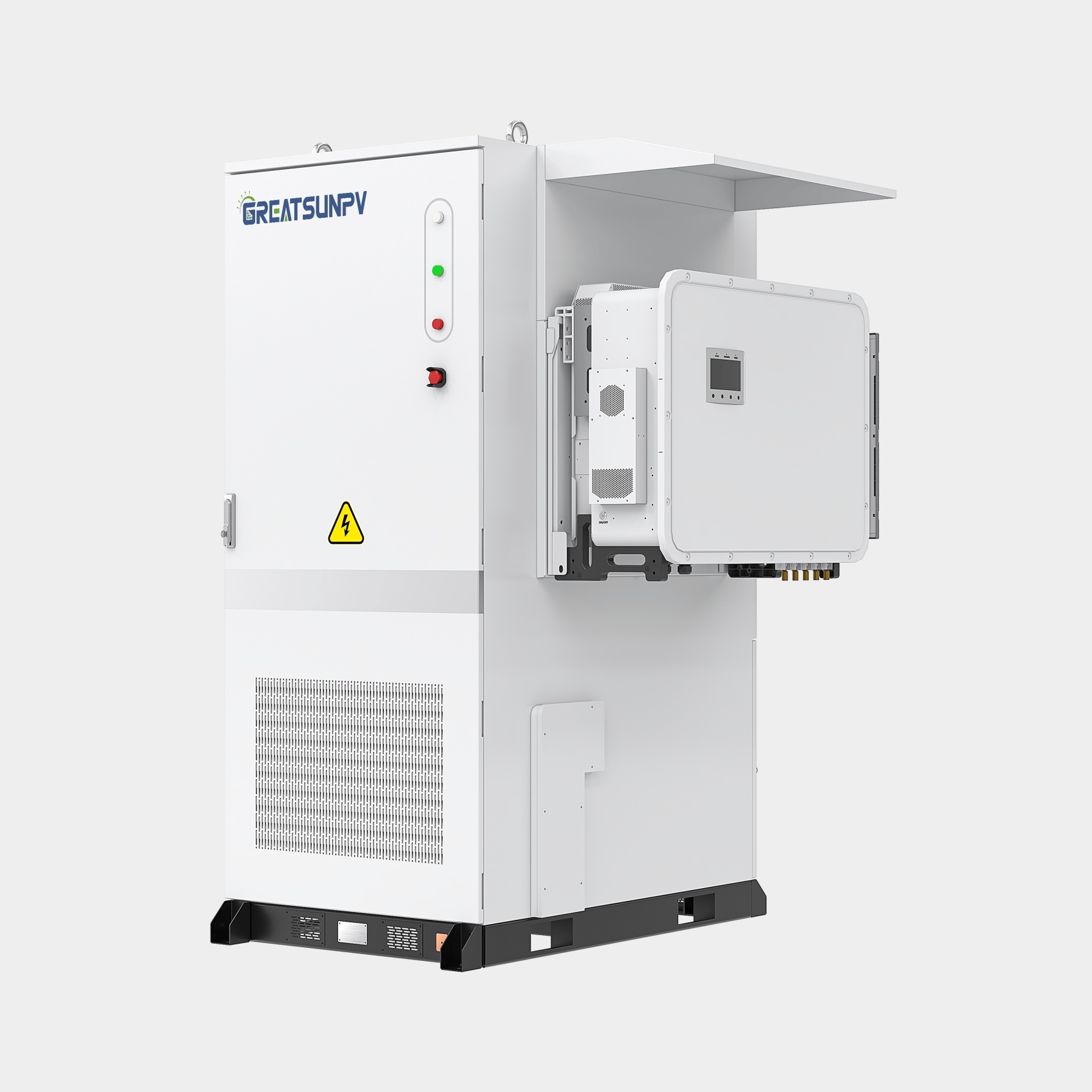

GREATSUNPV GLC261-125K provides a flexible battery-side solution that can be paired with mainstream PCS and hybrid inverter brands.
Compatible solutions include:
This modular approach allows system integrators to select the most suitable PCS according to project requirements.
Unlike integrated ESS systems, the external PCS version provides greater flexibility:

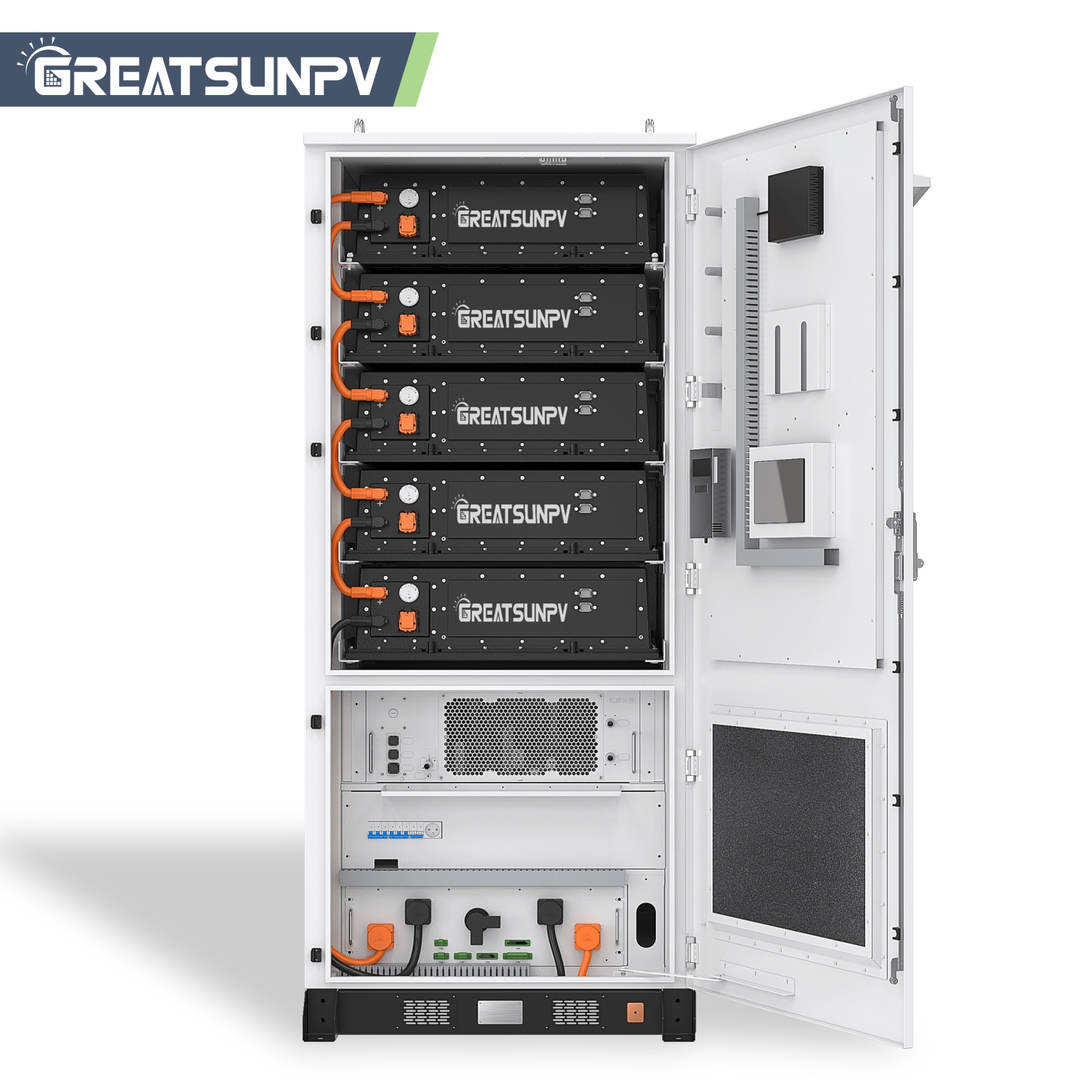

The battery cabinet adopts:
The liquid cooling system maintains excellent temperature consistency with battery cell temperature difference below 3℃, improving safety and extending battery lifetime.
With strong environmental adaptability:
GREATSUNPV liquid cooling battery cabinet is suitable for:
|
TYPE PARAMETER
|
|
| Model number: | GLC261-125K |
| Type: | 125kW/261kWh |
| AC Side | |
| Rated AC Power: | 125KW |
| Rated AC Output Voltage: | 3/N/PE, 220V /380V, 230V /400V |
| Rated AC Output Frequency: | 50Hz /60Hz |
| Max AC Current: | 189.9A / 180.4A |
| Power factor: | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi: | < 3% |
| BATTERY PARAMETERS | |
| Battery cell: | LFP314Ah |
| Battery pack: | 166.4V 314Ah |
| Rated voltage (V): | 832V(5-module series) |
| Rated energy(kWh): | 261kWh |
| Voltage range (V): | 728~936 |
| DC SIDE PARAMETERS | |
| Combination method: | 1P260S |
| Rated power(kW): | 125 |
| Rated charge and discharge rate: | 0.5P |
| Standard charge and discharge current: | 157/157 |
| BASIC PARAMETERS | |
| Size:W*D*H(mm): | 1011*1420*2320 |
| Weight (kg): | ≈2.6T |
| Level: | IP54 |
| Operating temperature range(℃): | -20~50℃ |
| Relative humidity: | RH≤95% |
| Altitude (m): | <2000m |
| Cooling method: | Liquid cooling |
| Coolant: | Ethylene glycol:aqueous solution(50%v:50%v) |
| Number of cycles: | EOL70%8000 times DOD90% |
| Fire protection system: | Aerosol |
| Detector Type: | Warmth sensation,smoke sensation |
Store excess solar energy and improve renewable energy utilization.
Reduce electricity costs through intelligent energy management.
Provide reliable power supply for remote areas and commercial facilities.
1.261kWh High Energy Capacity
Large-scale energy storage for commercial and industrial applications.

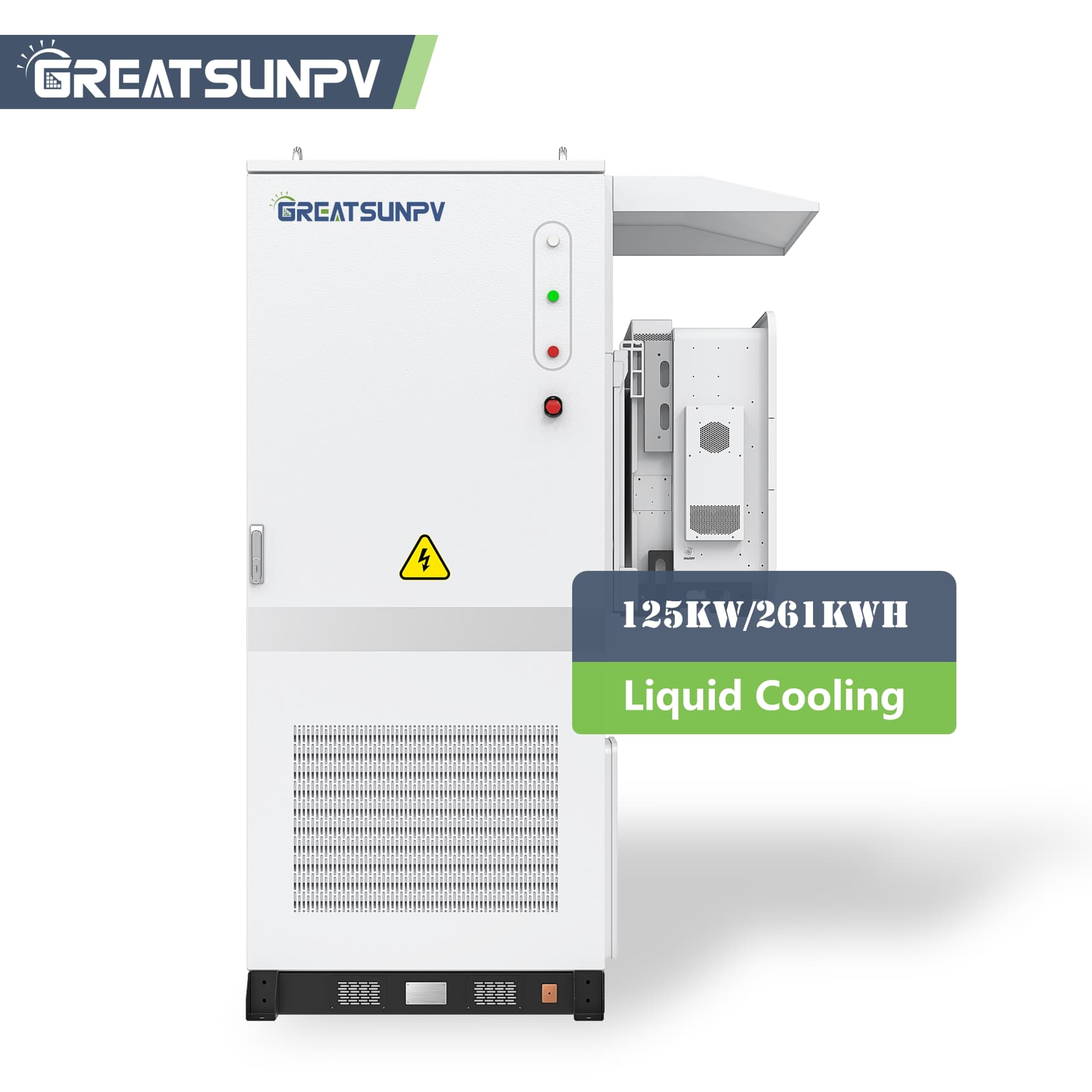

2.Advanced Liquid Cooling System
Maintains battery cell temperature difference within 3℃ for safer operation.
3.8000 Cycle Long Lifetime
Designed for long-term energy storage projects with reduced operating costs.
4.314Ah LiFePO₄ Battery Technology
High safety, excellent stability, and superior cycle performance.
5.High Temperature Adaptability
Reliable operation in challenging environments up to 60℃.

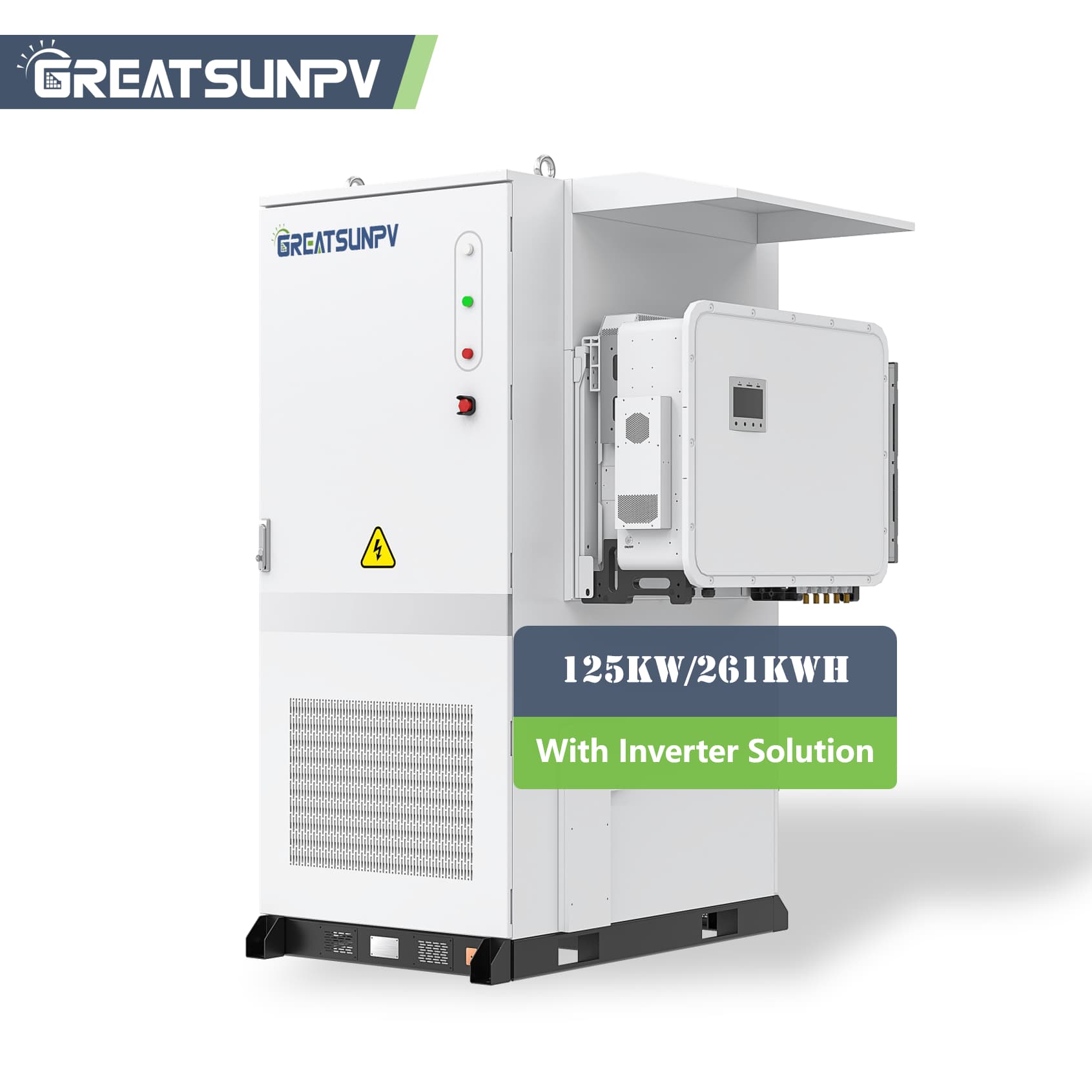

6.Compatible with PCS/Inverter Solutions
Flexible integration with different energy storage architectures.
FAQ
Liquid cooling technology provides better temperature control than traditional air cooling systems. It reduces battery cell temperature differences, improves safety, and extends battery cycle life, making it ideal for large-scale commercial energy storage projects.
GREATSUNPV GLC261-125K can achieve up to 8000 cycles at 90% depth of discharge (DOD), helping customers reduce long-term energy storage costs.
The system is designed for commercial and industrial applications including solar-plus-storage projects, factories, microgrids, renewable energy integration, and backup power systems.
