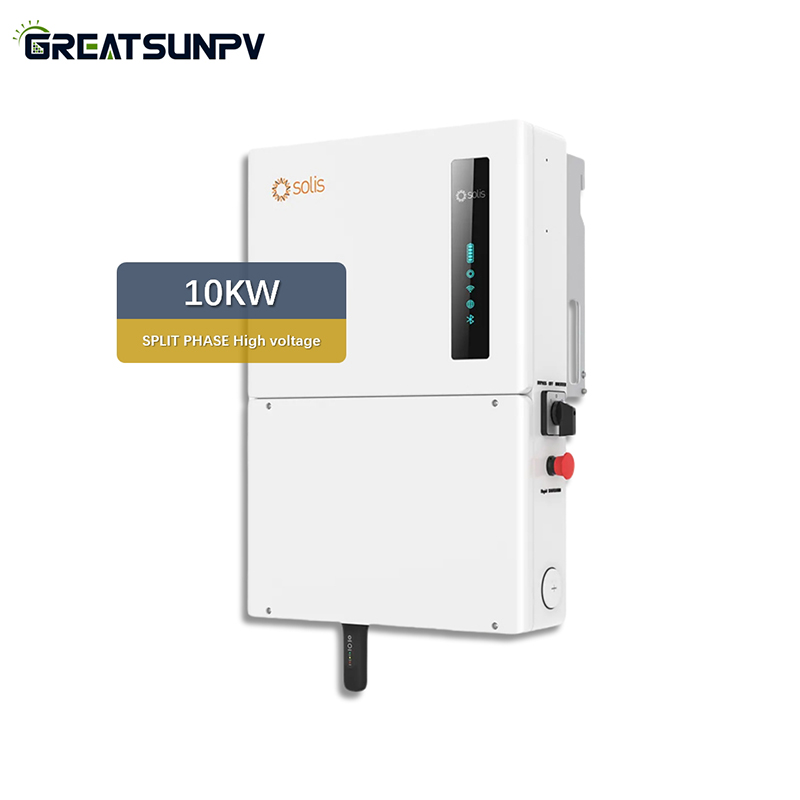

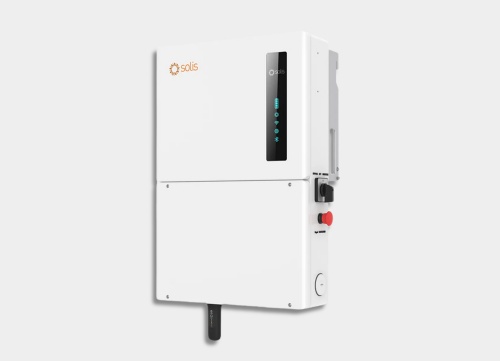

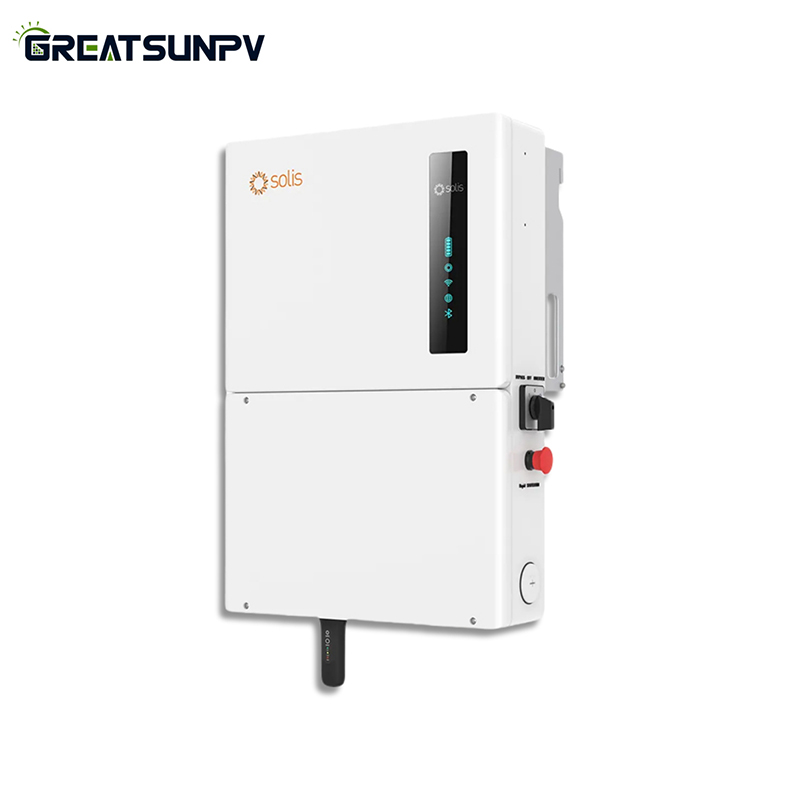

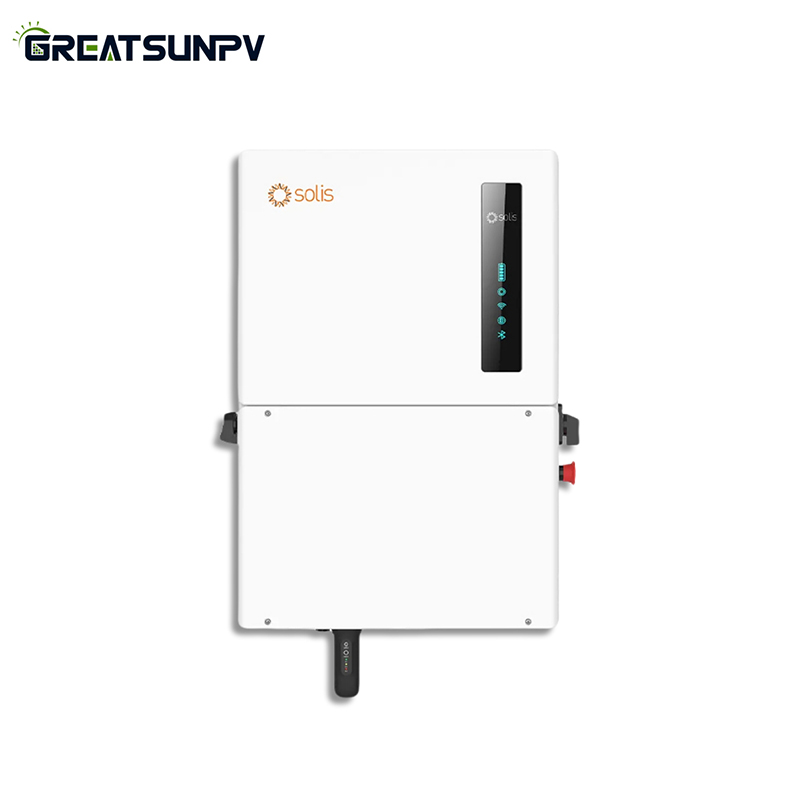

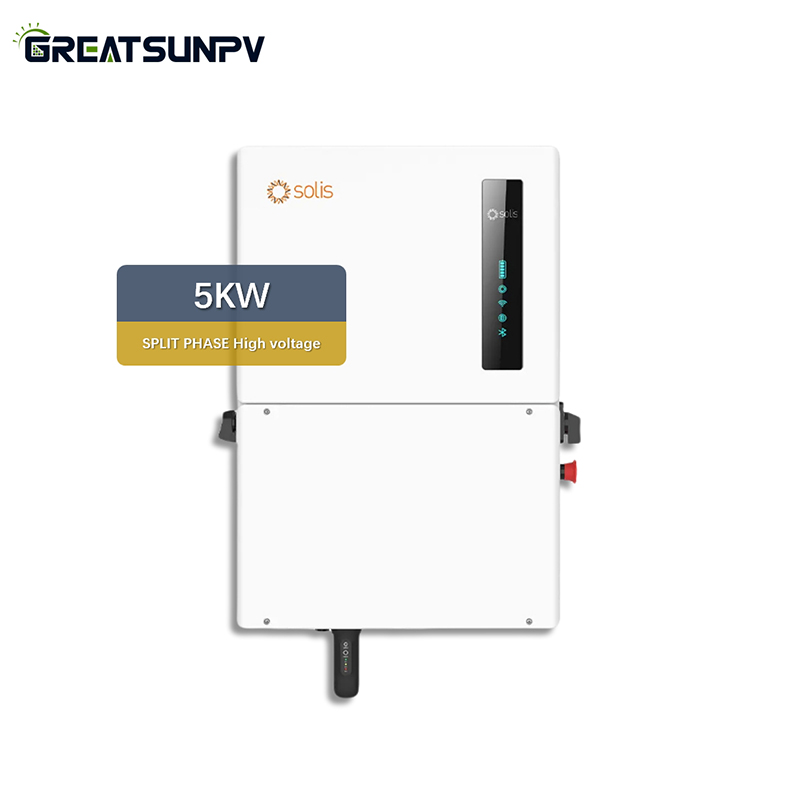

5kw 8kw 10kw split phase hybrid inverter 10kw storage inverter for home use

The hybrid energy storage string inverter is the latest in hybrid inverter technology, versatile and flexible for the growing solar storage marketplace.

Brand Name:
Solis
Type:
Hybrid
Max. Power:
3.8-11.4KW
AC Voltage:
1PE, 600V
Warranty:
10 years
Ingress Protection:
IP66
Dimensions:
490×720×220mm/560×750×220mm
Certification & Safety Standard:
UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1

Inquiry now

Product Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Leading Features:

• Up to 4 MPPTs and 16A of DC input current allows for PV array design flexibility

• Optimization, module-level monitoring, and rapid shutdown options available

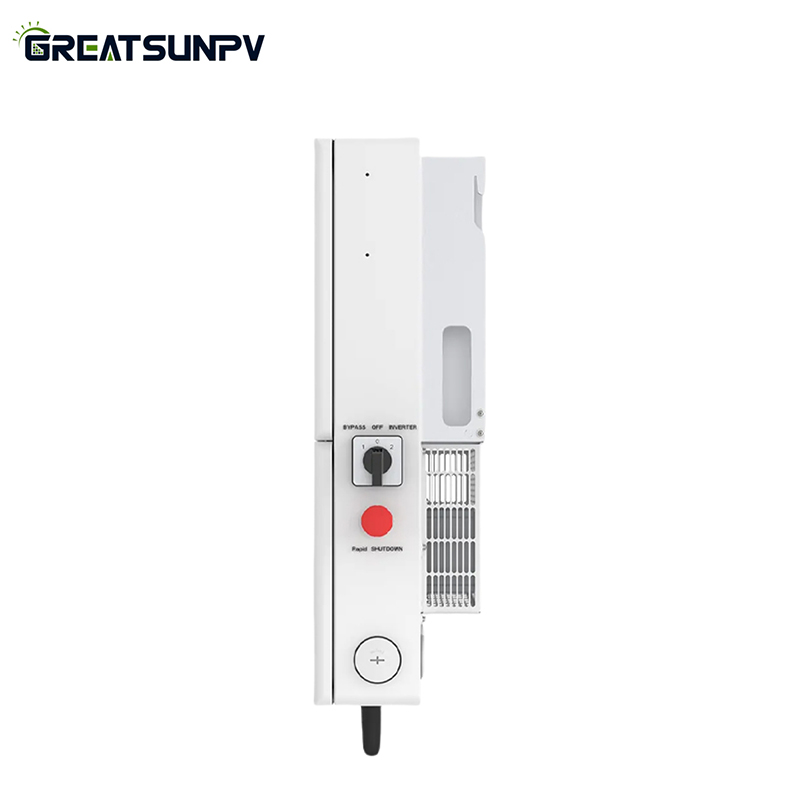

• External RSD, EPO signal and BYPASS switch are available

• Intelligent AC coupling scheme, easily upgrade existing grid-connected systems

• Whole-home backup, generator integration, and load shading function with the new SolisHub

• Supports 1ph and 3ph flexible connection on both the Grid and Backup Port

• Smart I-V curve scan, system health report, string-level fault finding

• Connecting with multiple types of devices seamlessly: Inverters, export power managers, weather stations, etc.

• Manage multiple types of systems across residential, commercial and utility scale plants.Enables multiple team management across different sectors

• Clear and concise display of system performance and benefits including carbon emissions saved and equivalent trees planted as well as showing system yield & earnings

Datasheet:

Models	3.8K	5K	7.6K	9.9K	10K	11.4K
DC Input(PV)
Max.input voltage	600V
Rated voltage	380 V
Start-up voltage	80V
MPPT voltage range	80-520V
Max.input current per string	16A
Max.short circuit current per string	25.6A
Number of MPPTs/Number of strings per MPPT	2/1	3/1	4/1
Energy Storage
Battery type	Lithium-ion
Battery voltage range	120-500V
Maximum charge/discharge current	25A		50 A
Battery communication	CAN/RS485
Number of batteries per inverter	See Battery Compatibility Sheet
AC Output(Grid)
Rated output power	3800W	5000 kW	7600 W	9990 W	10000W	11400W
Max.apparent output power	3800 VA	5000 kVA	7600 VA	9990 VA	10000 VA	11400 VA
Rated output voltage	240V
Rated frequency	60 Hz
Max.output current	15.8A	20.8A	31.7A	41.7A	41.7A	47.5A
THDi	<3%
AC Input(Grid)
Input voltage range	211-264V
Grid pass through power	15.8A	20.8A	31.7 A	41.7 A	41.7A	47.5A
Max.input current	23.8A	31.2A	47.6 A	62.6 A	62.6A	71.3A
Frequency range	58.8-61.2Hz
AC Output(Backup and Off-grid)
Rated output power	3800W	5000W	7600W	9990W	10000W	11400W
Max.apparent output power	6.1kVA	8kVA	12.2kVA	16kVA	16kVA	18.2kVA
Back-up switch time	<10 ms
Phase power	240VSplit-Phase
Rated output voltage (L1-L2)	240V
AC output voltage range	211-264V
Rated grid frequency	60 Hz
Frequency range	55-65 Hz
Rated ACoutput current	15.8A	20.8A	31.7A	41.7A	41.7A	47.5A
Max.output overcurrent protection,10s	25.4A	33.3A	50.7A	66.7A	66.7A	76A
Max.allowable phase imbalance	100%
Backup support configurations	Whole-home and dedicated loads
Power factor	>0.99(0.8 leading-0.8lagging)
THDv(@linear load)	<3%
Efficiency
PVMax.efficiency	97.0%		97.6%
PV CECefficiency	96.5%		97.0%
Battery charged by PVmax.efficiency	98.5%
Battery charged/discharged to AC max.efficiency	97.0%
Protection
Ground fault detection	Yes
Residual (leakage)current detection	Yes
Integrated AFCI	Yes
DC reverse-polarity protection	Yes(PV only)
Manual inverter bypass switch	Yes
Rapid shutdown NEC2017	Integrated SunSpec-certified Transmitter
Compatible RSD receivers	See MLRSD Compatibility Sheet
Protection class/Over voltage category	I/II
General Data
Dimensions(W×H×D)	490×720×220 mm		560×750×220 mm
Weight	52.43Ibs(23.78kgs)		71.74Ibs(32.54kgs)
Topology	Transformerless
Self-consumption(night)	<20 W
Operating ambient temperature range	-13°F to 140°F(-25℃to 60℃)
Ingress protection	TYPE 4X
Compliance	UL1741SB,IEEE1547-2018,UL1699B,UL1998,FCCPart15ClassB, California Rule21,NEC 690.12-2020,CAN/CSA C22.2107.1-1,HECO Rule 14H,Luma Listed
Generator support	Yes;up to 25 kW(with a Solis Power Hub)
Features

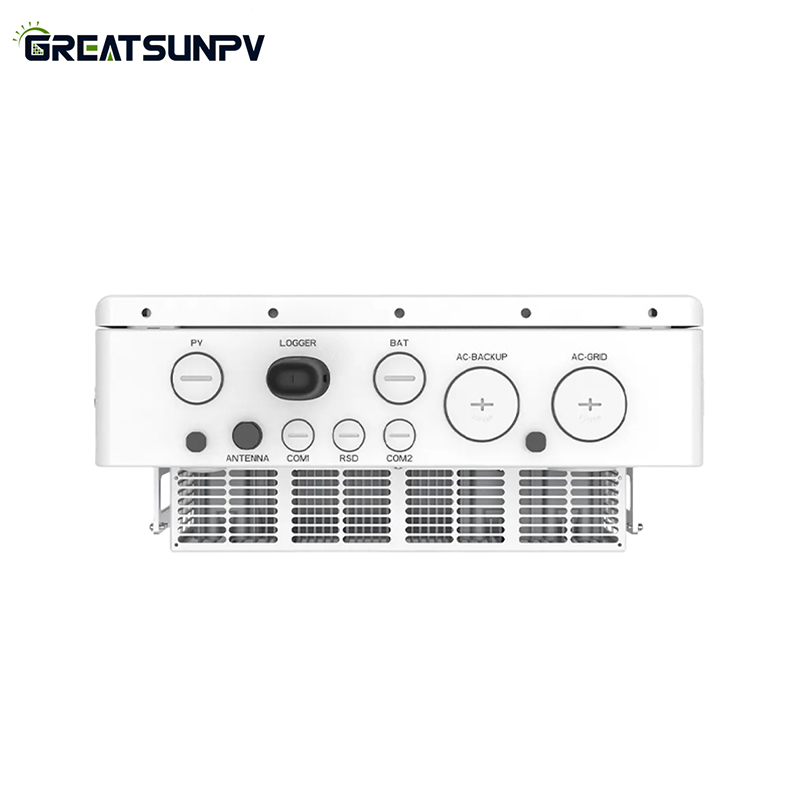

DC connection	1 in.knockouts for conduit(×2)on the side and bottom;Spring clamp terminals
AC connection	1.5 in.knockouts for conduit(×3)on the side and bottom;Spring clamp terminals
Communication	RS485,Optional:Cellular,Wi-Fi,LAN
