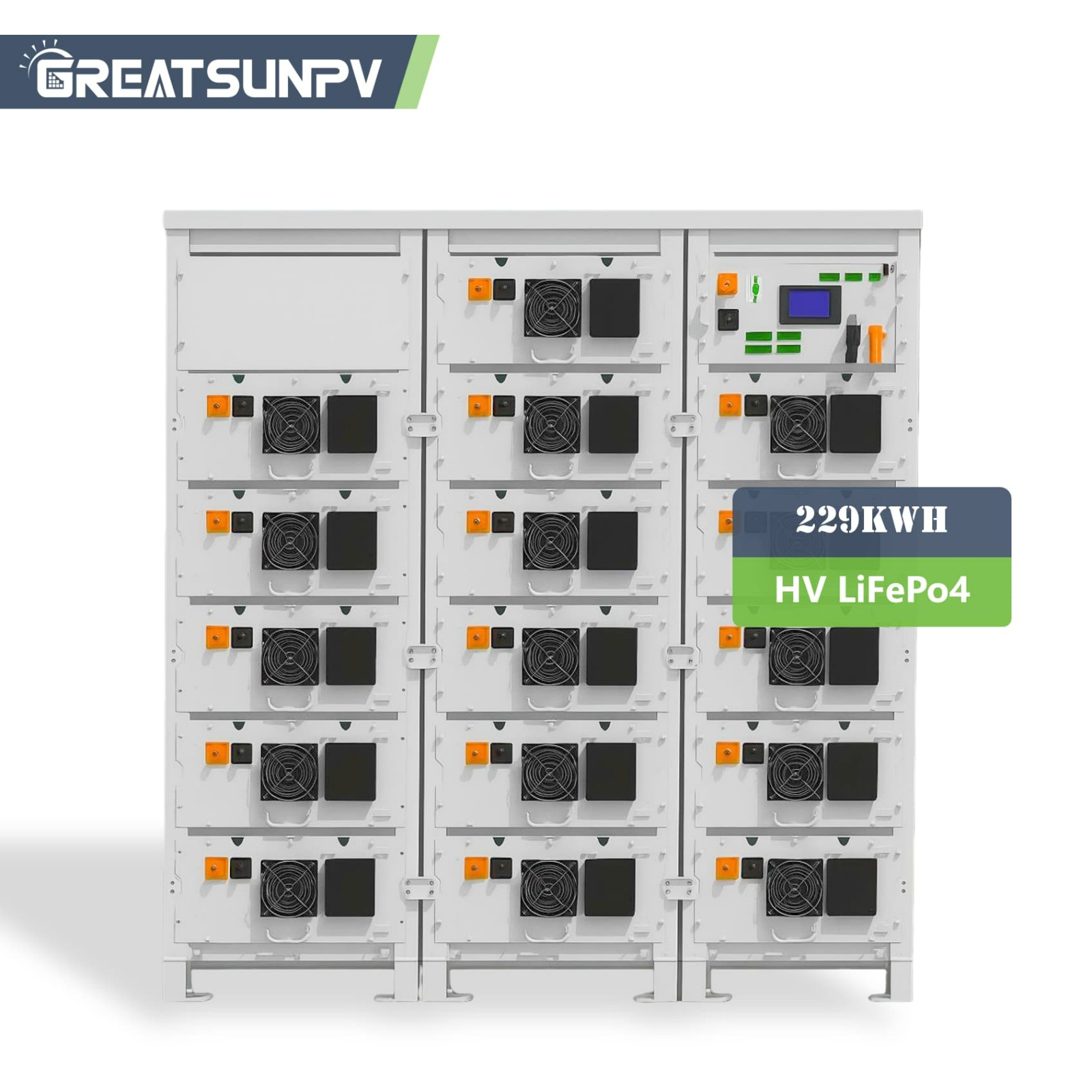

The 51.2V High Voltage Lifepo4 lithium battery is a high-performance energy storage solution designed for a variety of applications. Featuring an advanced battery management system (BMS), enhanced heat dissipation structure, and robust safety features, it offers reliable and efficient power storage for both residential and industrial use. With its modular design, ease of installation, and long cycle life, this battery is perfect for both off-grid and backup power solutions.
Brand Name:
GREATSUNPVNominal Battery Energy:
229KWHWarranty:
10 yearsNominal Voltage:
716.8Battery Capacity:
229KWHDimension(mm):
1572*831*1531Weight(kg):
2029Certification & Safety Standard:
CE,UN38.3,MSDS

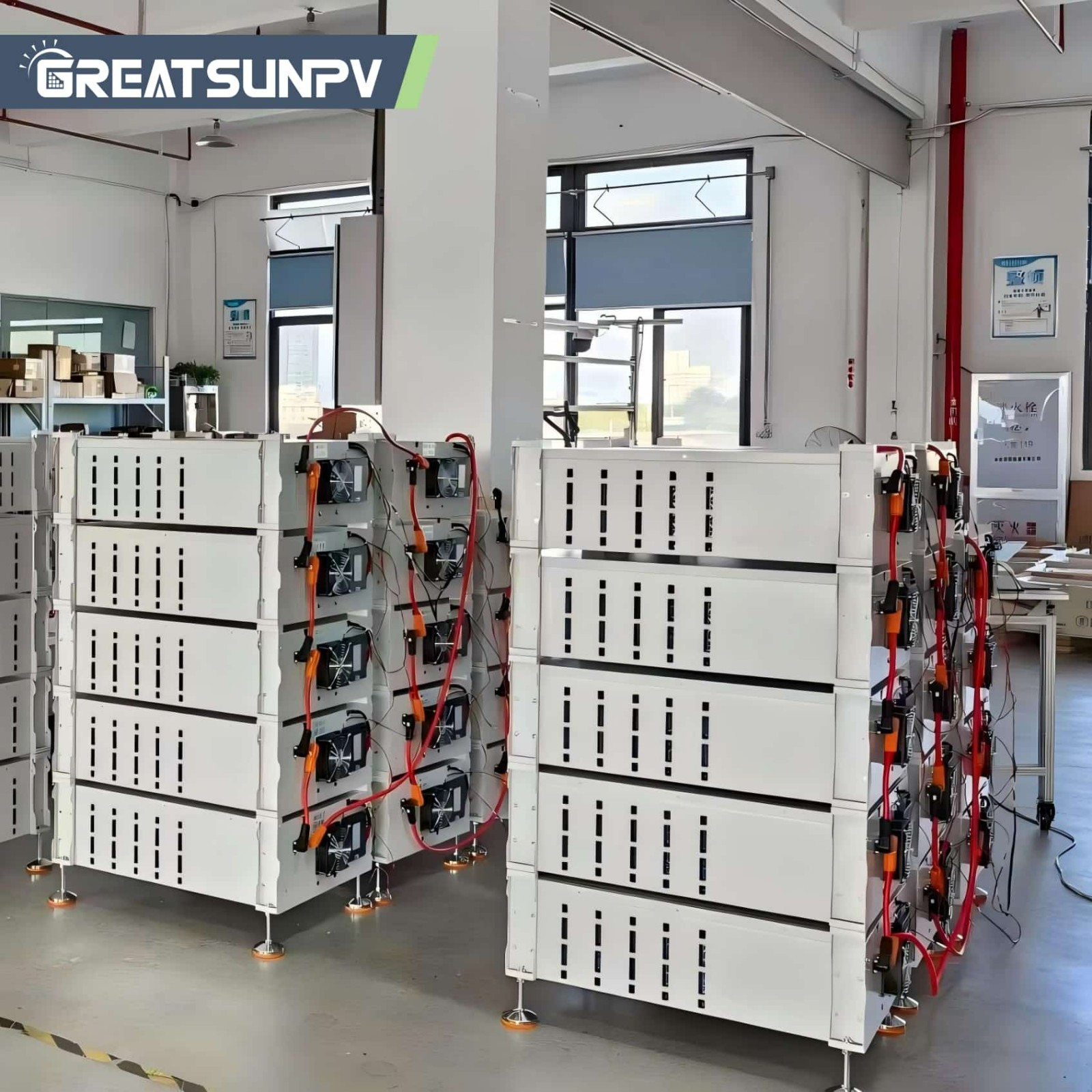

Compact and Space-Saving Design
The battery's tight structure optimizes space, allowing for a more efficient setup. Its modular design allows for quick installation and easy maintenance, saving time and cost.
Advanced Battery Management System (BMS)

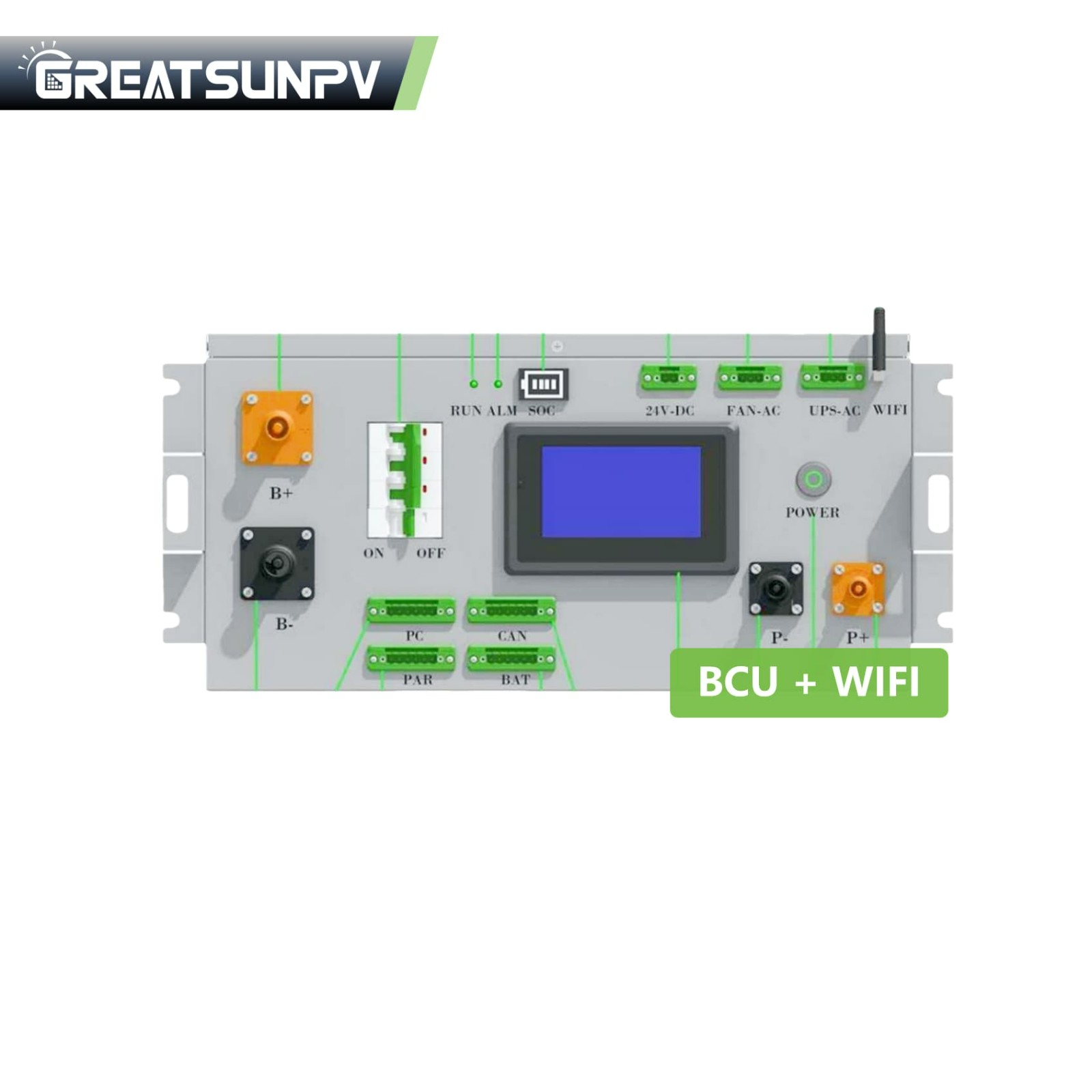

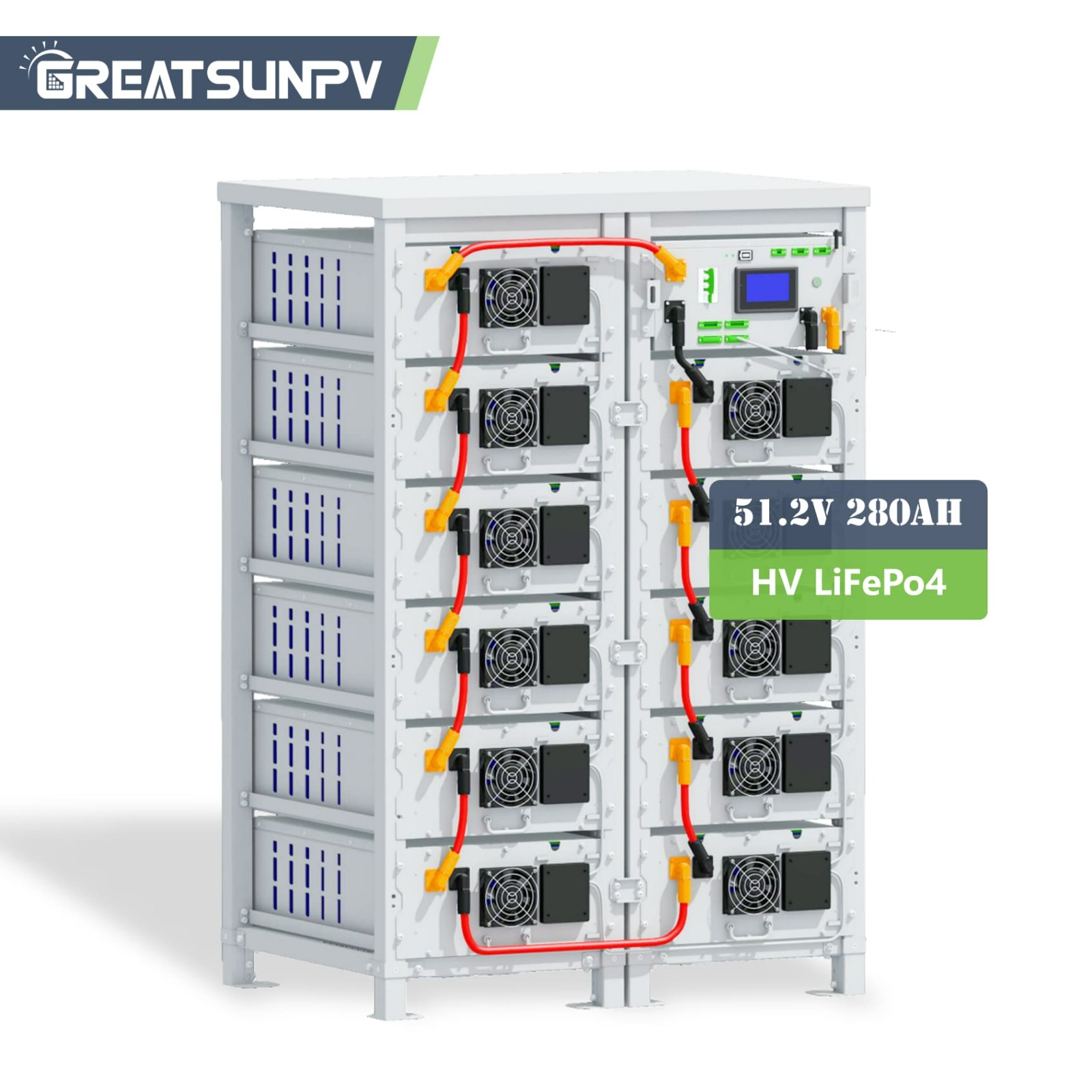

Equipped with a BMS (Battery Management System) that includes both BCUs and BMUs, the 51.2V280Ah-HV ensures superior energy management, protecting the system against overcharging, over-discharging, and overheating.

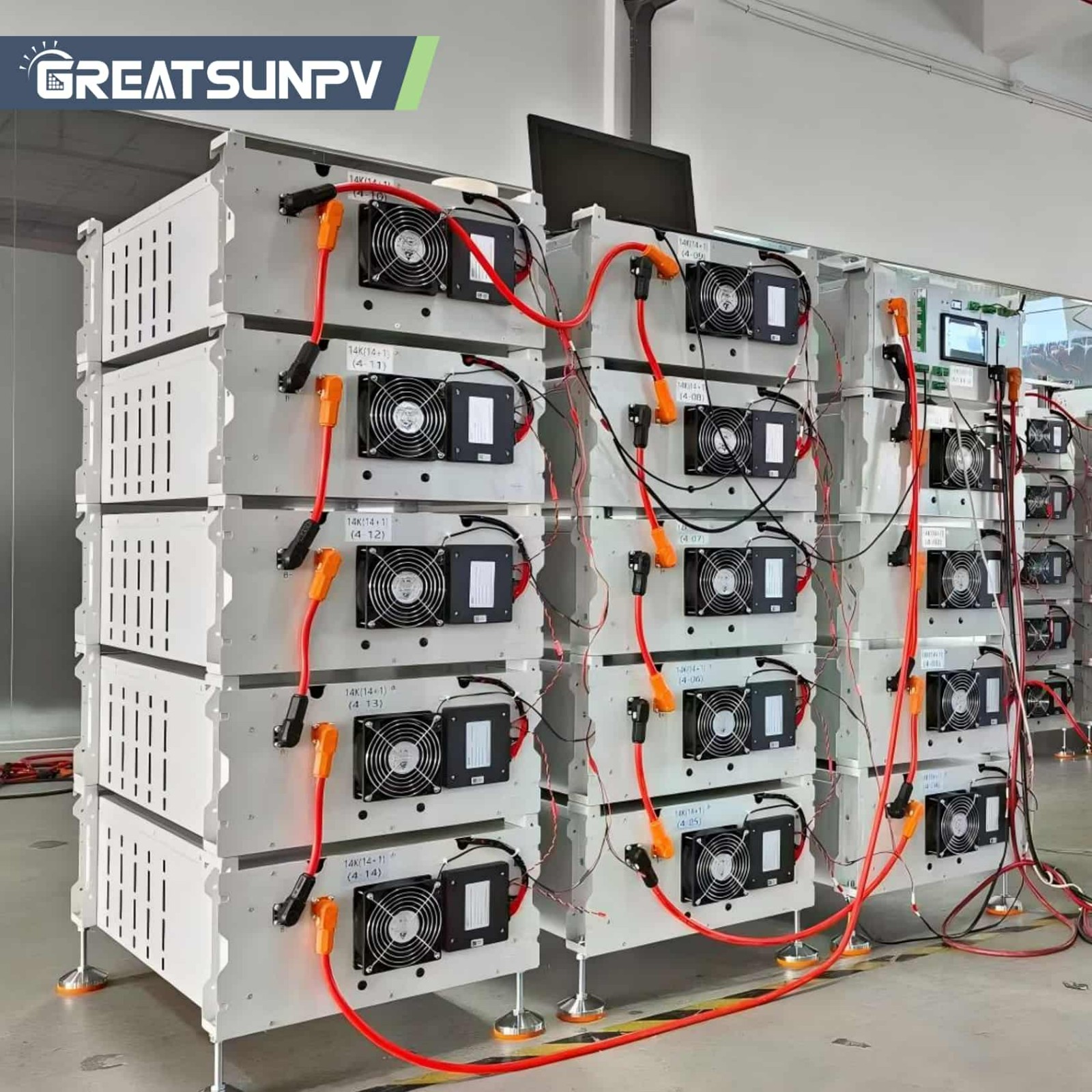

Efficient Cooling and Heat Dissipation
The battery is designed with multiple fans and a heat dissipation system to effectively manage heat, ensuring a stable and reliable operation even in demanding environments.
Smart and Interactive
Features a color display screen and optional WiFi module for easy monitoring and control. The system can be connected remotely for real-time performance tracking.
Customizable Features
The battery can be tailored with additional functions according to the specific needs of the user, allowing for greater flexibility and performance optimization.
| Battery Module | HV-72 | HV-114 | HV-157 | HV-200 | HV-229 | |
| Models | 51.2V280Ah HV | |||||
| Cell Chemistry | LiFePO4 | |||||
| Module Energy(kWh) | 14.34 | |||||
| Module Nominal Voltage(V) | 51.2 | |||||
| Module Capacity(Ah) | 280 | |||||
| Battery Module Qty In Series(Optional) | 5(Min) | 8 | 11 | 14 | 16 | |
| System Nominal Voltage(V) | 256 | 409.6 | 563.2 | 716.8 |
819.2 |
|
| System Operating Voltage(V) | 232～288 | 371.2～460.8 | 510.4～633.6 | 649.6～806.4 | 742.4～921.6 | |
| System Energy(kWh) | 71.68 | 114.69 | 157.7 | 200.7 | 229.38 | |
| System Usable Energy(kWh) | 64.51 | 103.22 | 141.93 | 180.63 | 206.44 | |
| Rated DC Power (KW) | 71.68 | 114.69 | 157.7 | 200.7 | 229.38 | |
| Charge/Discharge Current(A)1 | Recommend | 140 | ||||
| Max | 170 | |||||
| Peak Discharge (2mins,25℃) | 125 | |||||
| Working Temperature(℃) | -10～55℃ | |||||
| Cooling | Fan Cooling Power | |||||
| Communication Port | CAN/RS485 | |||||
| Humidity | 5%～95%RH | |||||
| Altitude | ≤2000m | |||||
| IP Rating of Enclosure | IP20 | |||||
| Weight Approximate ( kg ) | 810 | 1140 | 1470 | 1800 | 2029 | |
| Installation Location | Rack Mounting | |||||
| Storage Temperature(℃) | 0～35 | |||||
| Recommend Depth of Discharge | 90% | |||||
| Cycle Life | 25±2℃,0.5C/0.5C,EOL70%≥1000 | |||||
| Warranty³ | 10 years | |||||
| Certification | CE,UN38.3,MSDS | |||||
|
1.DC Usable Energy,test conditions:90%DOD,0.3C charge &discharge at 25℃.System usable energy may vary due to system configuration parameters. 2.The current is affected by temperature and SOC. 3.The warranty is due whichever reached first of warranty period or life cycle power. 4.Made in China. |
||||||
Residential Energy Storage
Ideal for homeowners looking to store energy from renewable sources (like solar panels) for later use, ensuring energy independence and reducing electricity bills.
Commercial and Industrial Use
Provides large-scale energy storage solutions for businesses that need reliable backup power during outages or to manage peak energy demand.
Off-Grid Energy Solutions
Perfect for off-grid locations requiring reliable energy storage that can withstand harsh environmental conditions.
Long Cycle Life:
Designed to endure more than 10,000 charge/discharge cycles, this battery offers exceptional durability, making it an economical choice for long-term energy storage needs.
Reliable and Safe:
The battery comes with a complete set of safety features, including overcharge, over-discharge, and temperature protection, ensuring peace of mind for all users.
Flexible and Scalable:
Its modular structure allows for easy expansion and integration into larger systems, making it suitable for both small-scale and industrial applications.
